Product Details
- Repositionable Plate for Use at Right or Left Corner of Glass
- For Use with 2" (51 mm) Diameter Round Tubing
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Radius Surface Mounting
- Use Monolithic Tempered Glass

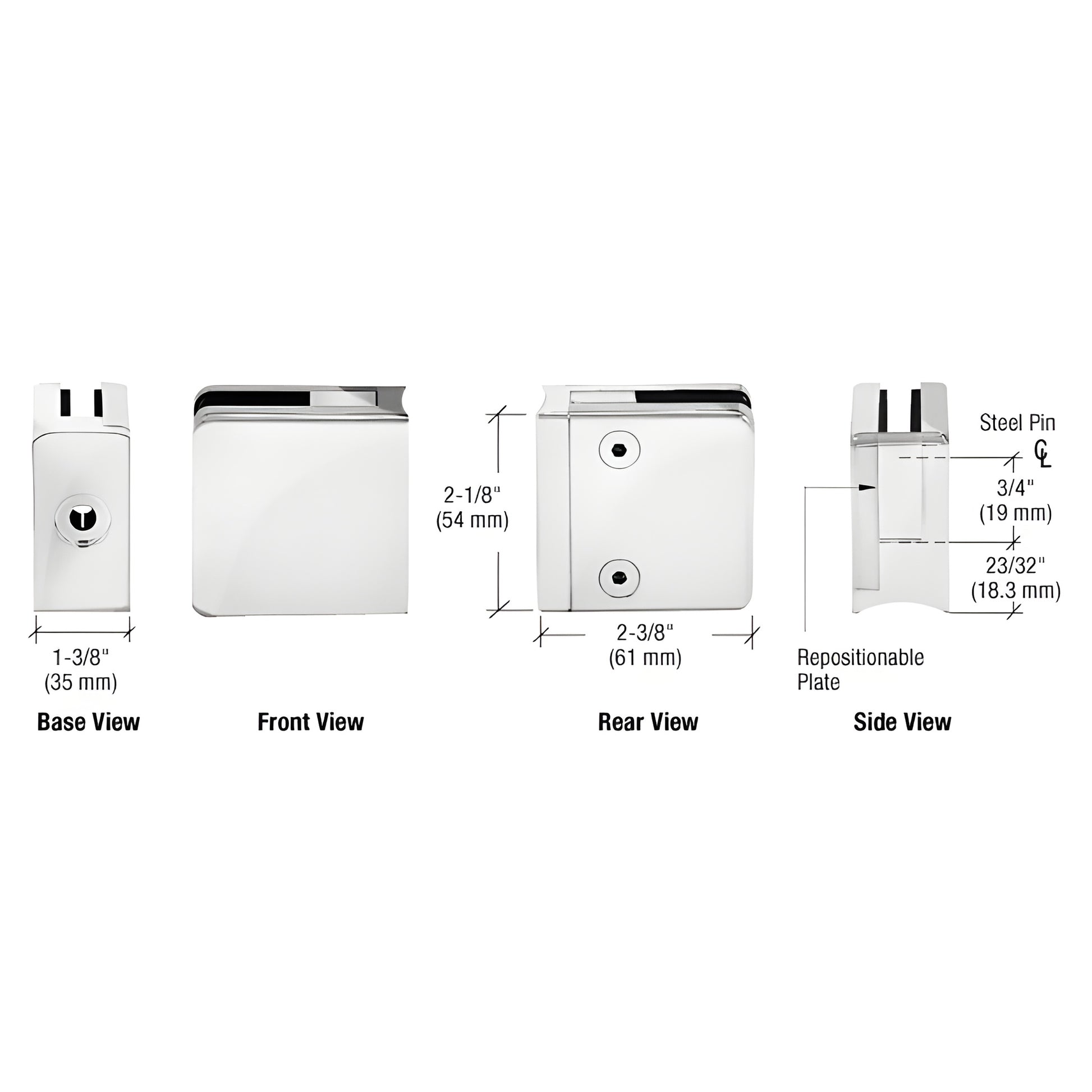

This CRL Z-Series Square Type Radius Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" (10 mm) and 1/2" (12.7 mm). Constructed from zinc, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
Note: Replacement screws are available by ordering CRL Cat. No. ZCS5X5CH & for Replacement gaskets order CRL Cat. No. ZL38SG
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm).
Base Design: Radius.
For Use With: 2" (51 mm) Diameter Round Tubing.
Material: Zinc Constructed
Glass Fabrication:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Repositionable Plate for Use at Right or Left Corner of Glass.
