CRL

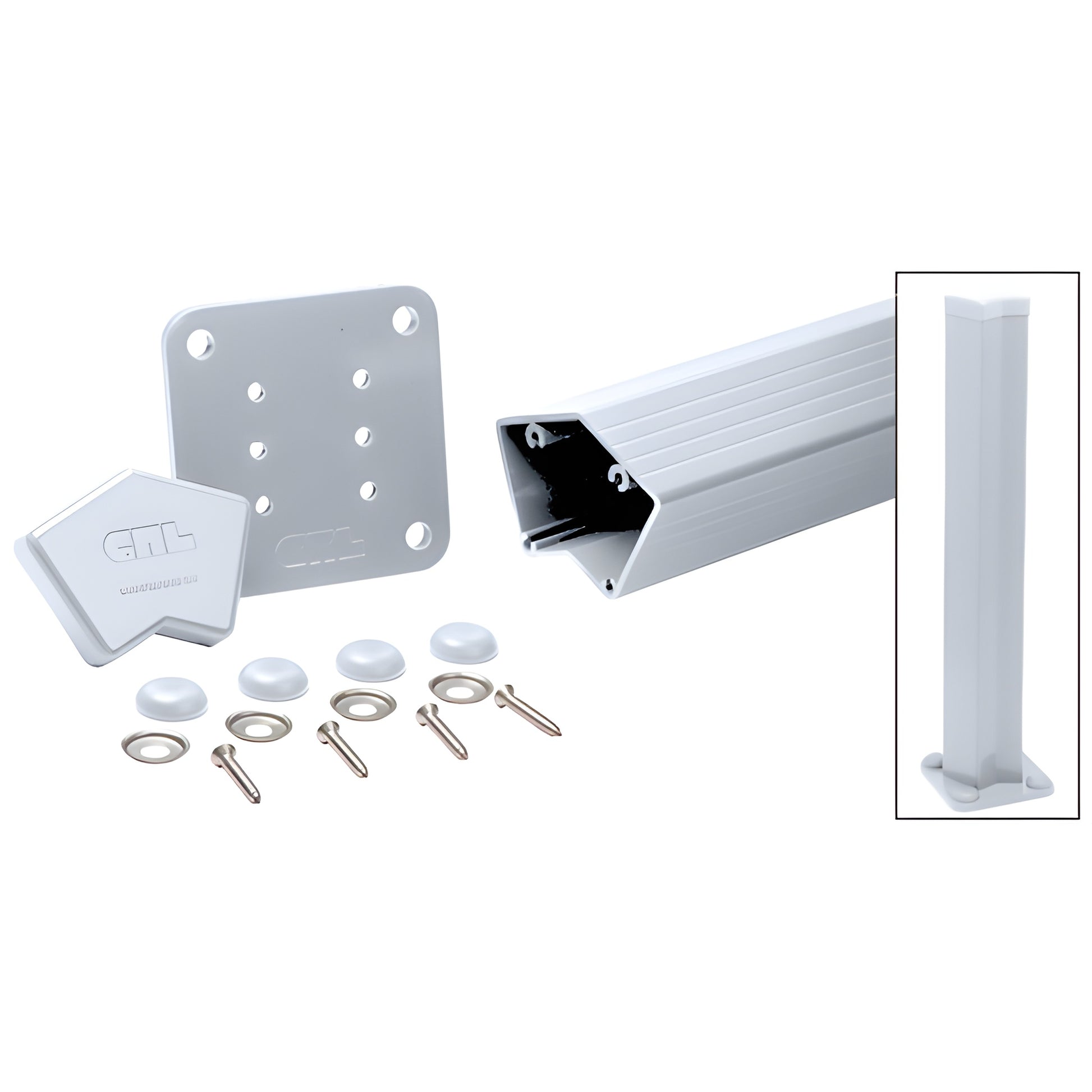

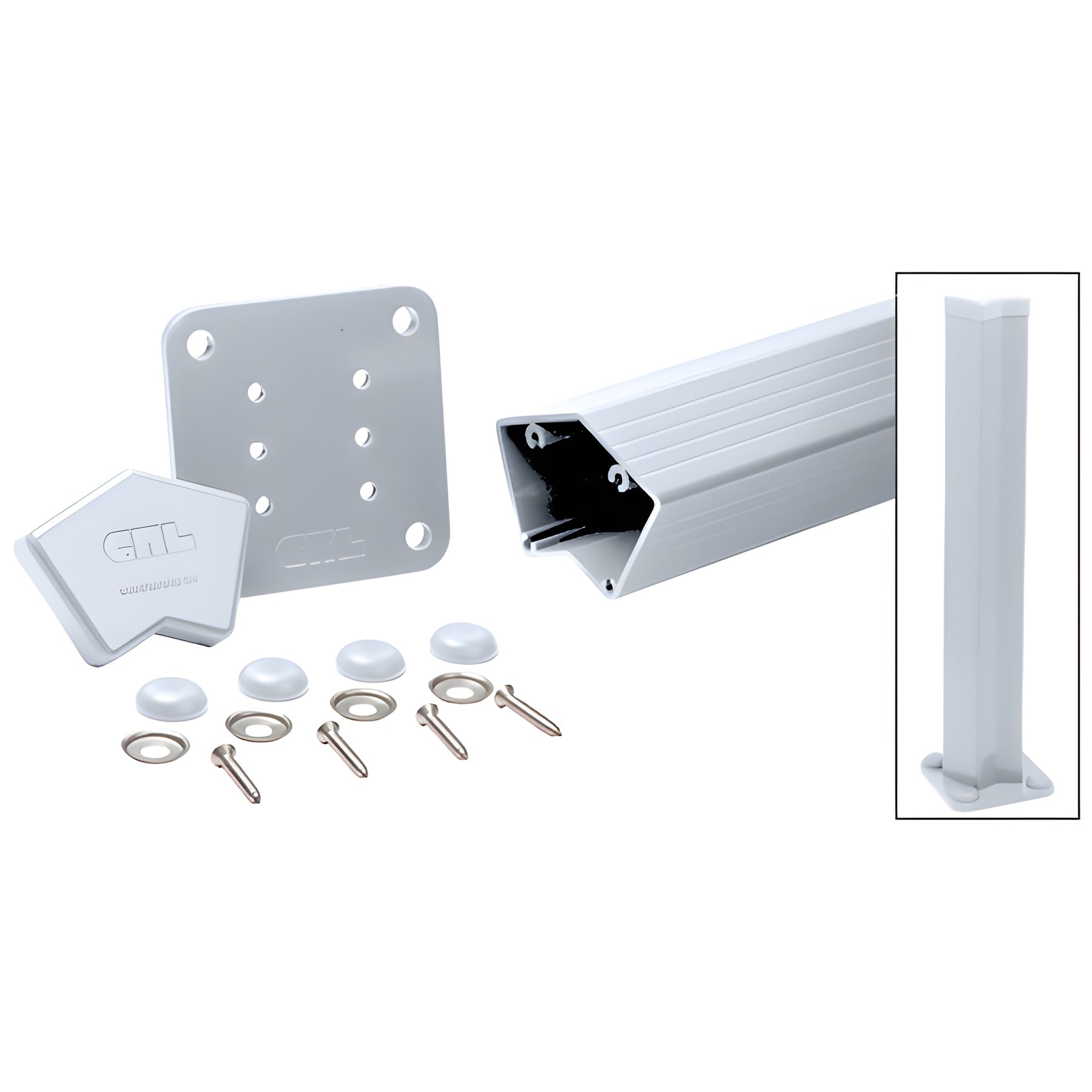

** CRL Clear Anodized 100 Series 36" 135ยบ Surface Mount Post Kit
** CRL Clear Anodized 100 Series 36" 135ยบ Surface Mount Post Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1P536KCA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Degree
135
Finish/Color
Clear Anodized
Length
37 in. (940 mm)
Material
Aluminum
Mounting Hole Diameter
7/16 in. (11 mm)
Overview
- 6005 Alloy Aluminum, T5 temper, 2-3/8" (60 mm) square postsโdurable corrosion-resistant construction
- Three standard post heights; custom heights available
- 36" post kit option
- Complete kit includes post cap, base plate (BP5), moisture barrier gasket (BPG1BL), base plate screws (BPS112), stainless steel washers (WSHR1), and color-match bolt cover buttons (BTN1)
- Designed for installation onto concrete, wood, steel, and other substratesโanchors or lag bolts not included
- Available in several attractive standard colors; custom powder coat colors available
- Test reports available on request
CRL 135ยบ Post Kits come complete with Base Plate (BP5), Moisture Barrier Gasket (BPG1BL), Base Plate Screws (BPS112), Stainless Steel Washers (WSHR1), Color-Match Bolt Cover Buttons (BTN1), and Post Cap (PC45). Standard post kits are offered in three heights and multiple color options; custom heights and custom powder coat colors available. Ideal for residential and commercial glass railing, balcony and stair applications requiring 135-degree connections.
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
SKU: 1P536KCA โ Contact CRL for test reports, custom color quotes, or installation guidance. Order now to specify height and powder coat color.
