Product Details
- 135º Corner Available in Four Finishes
- Supplied with Vinyl and Screws
- Back Bar is Punched 12" (305 mm) on Center

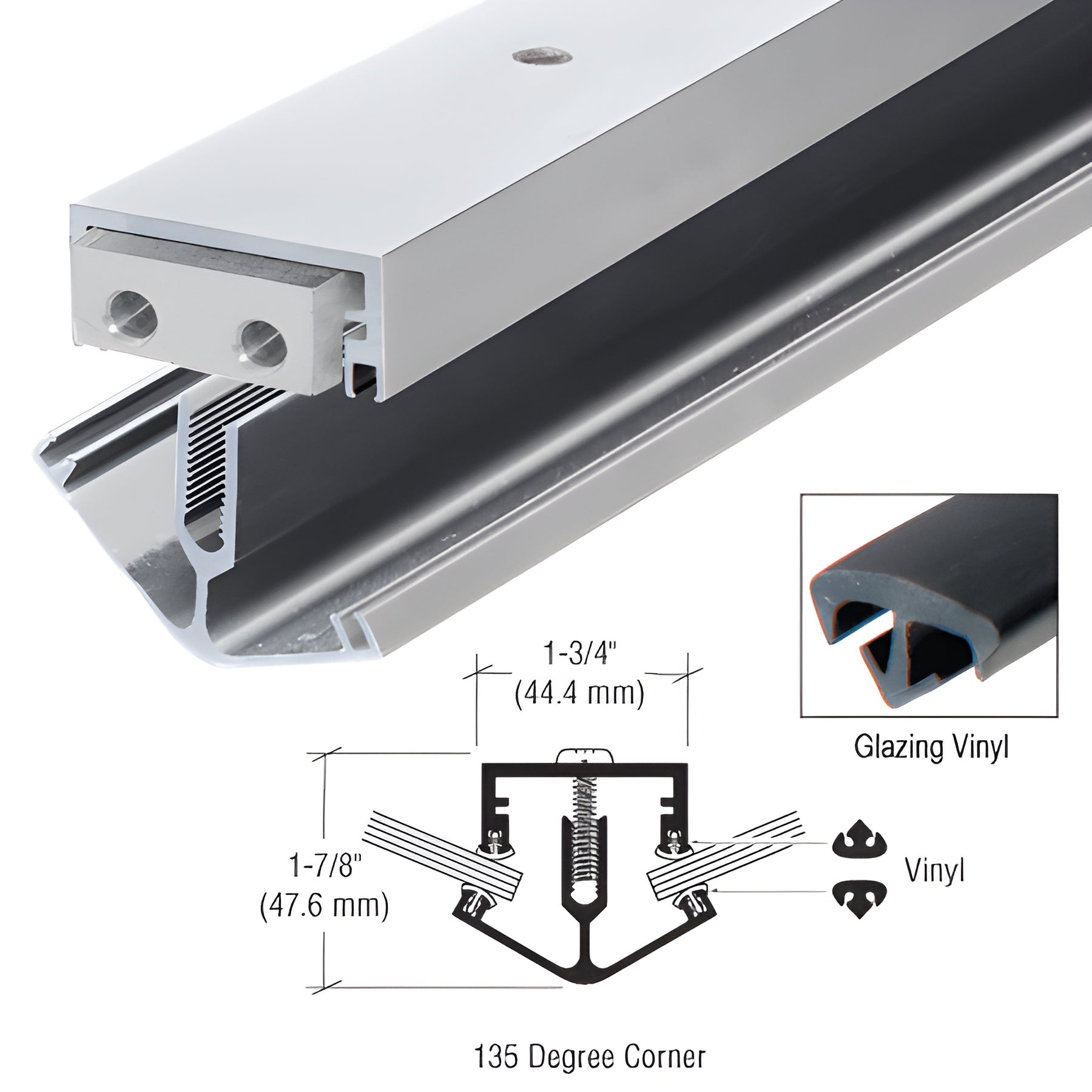

CRL 135º Corner Division Bar is used at corner conditions allowing for the use of two pieces of glass in the opening. This lighweight extruded aluminum division bar consists of a face member which has an extruded spline with threads for receiving exposed fasteners inserted through the back member which has holes drilled in it. The back and face members are screwed together after the glazing infill is installed to form the window. Each piece of CRL 135º Corner Division Bar includes 100' (30.5 m ) of vinyl and 20 each 1/4-20 x 1" (25.4 mm) Pan Head Phillips Machine Screws.
Product Warning:
Must ship common carrier if over 98" (2.49m) length.
