Product Details
- Seven Standard Colors, Plus Unfinished Chromate Available for Standard and 45 Degree Post
- For Use with All Standard Railings

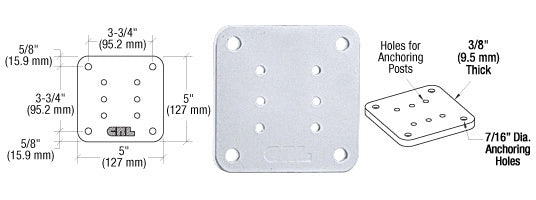

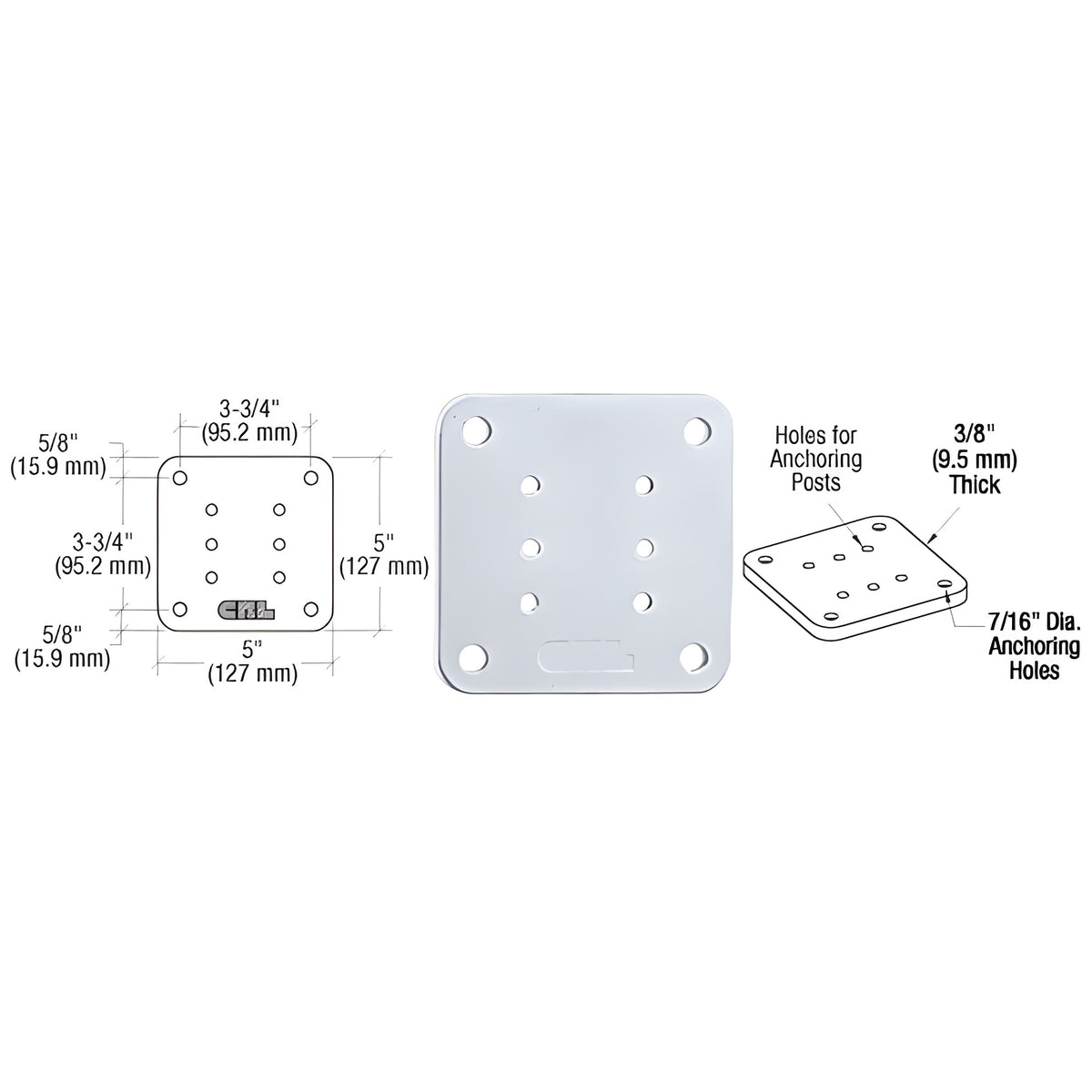

- For 2-3/8" (60 mm) Square Aluminum Posts
CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
All ARS/AWS products are painted to order and are non-refundable or returnable.
