CRL Clear Anodized Glass Door Latch with Lock & Thumbturn

• Works on single or double doors
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Field reversible design for left- or right-hand installations
• 304 grade stainless steel construction for corrosion resistance
• Lever handles ordered separately
• Use with monolithic tempered glass only

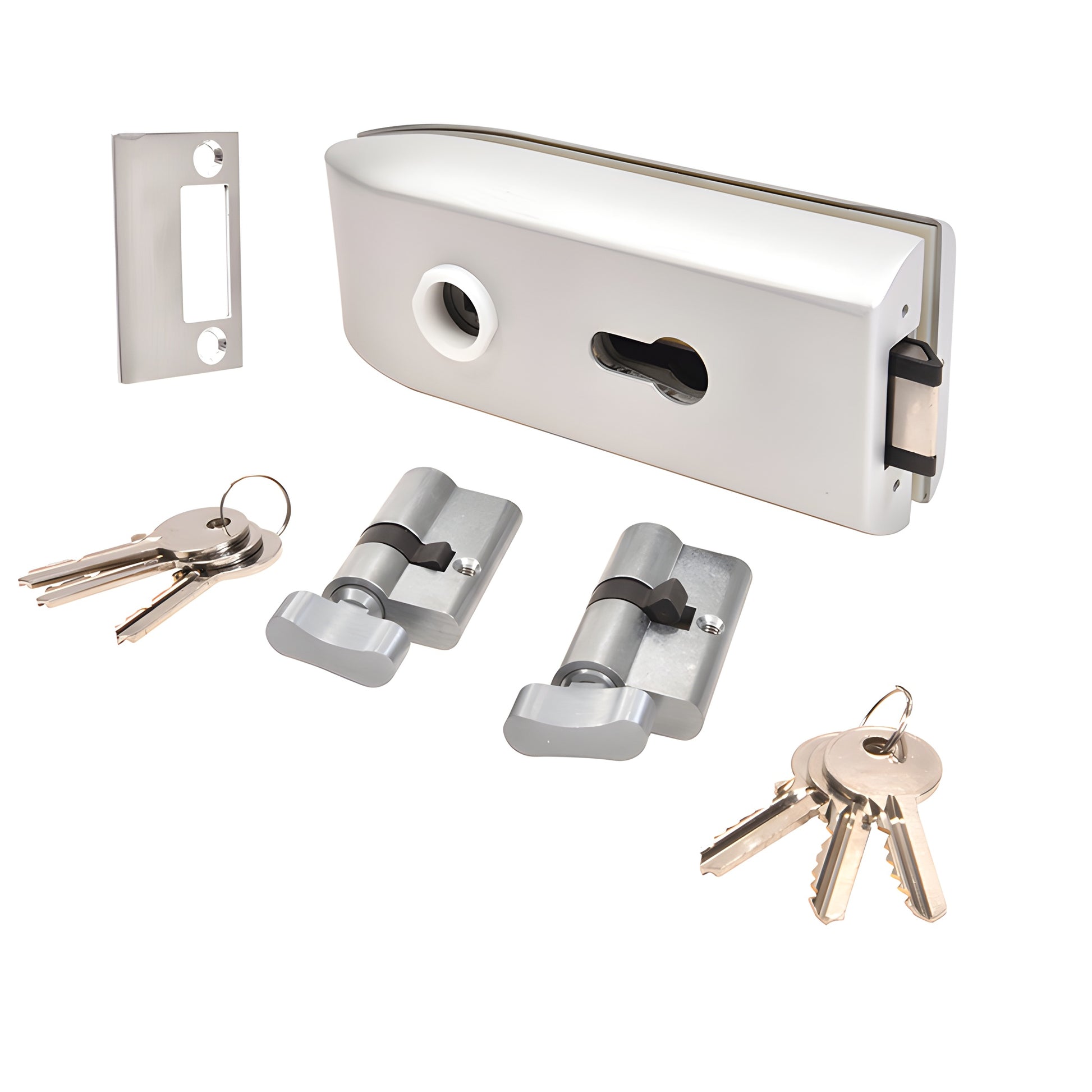

The CRL PTH311 Glass Mounted Latch (SKU: PTH311A) is a glass-mounted latch designed for monolithic tempered glass doors and installs assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when a PTH314 latch keeper is not used. For inswing doors using the PTH314 Glass Mounted Latch Keeper, the EC3 extended-length keyed cylinder is required.

NOTE: For double-door applications, the door with the keeper must be secured at the bottom with a separate lock.

GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass.

COMES WITH:
EC3 and EC4 series cylinder/thumbturn with three keys, installation template, and instructions.

Product Warning:
Lever handles ordered separately.

Buy the CRL PTH311A glass-mounted latch for secure, commercial-grade tempered glass door installations.
