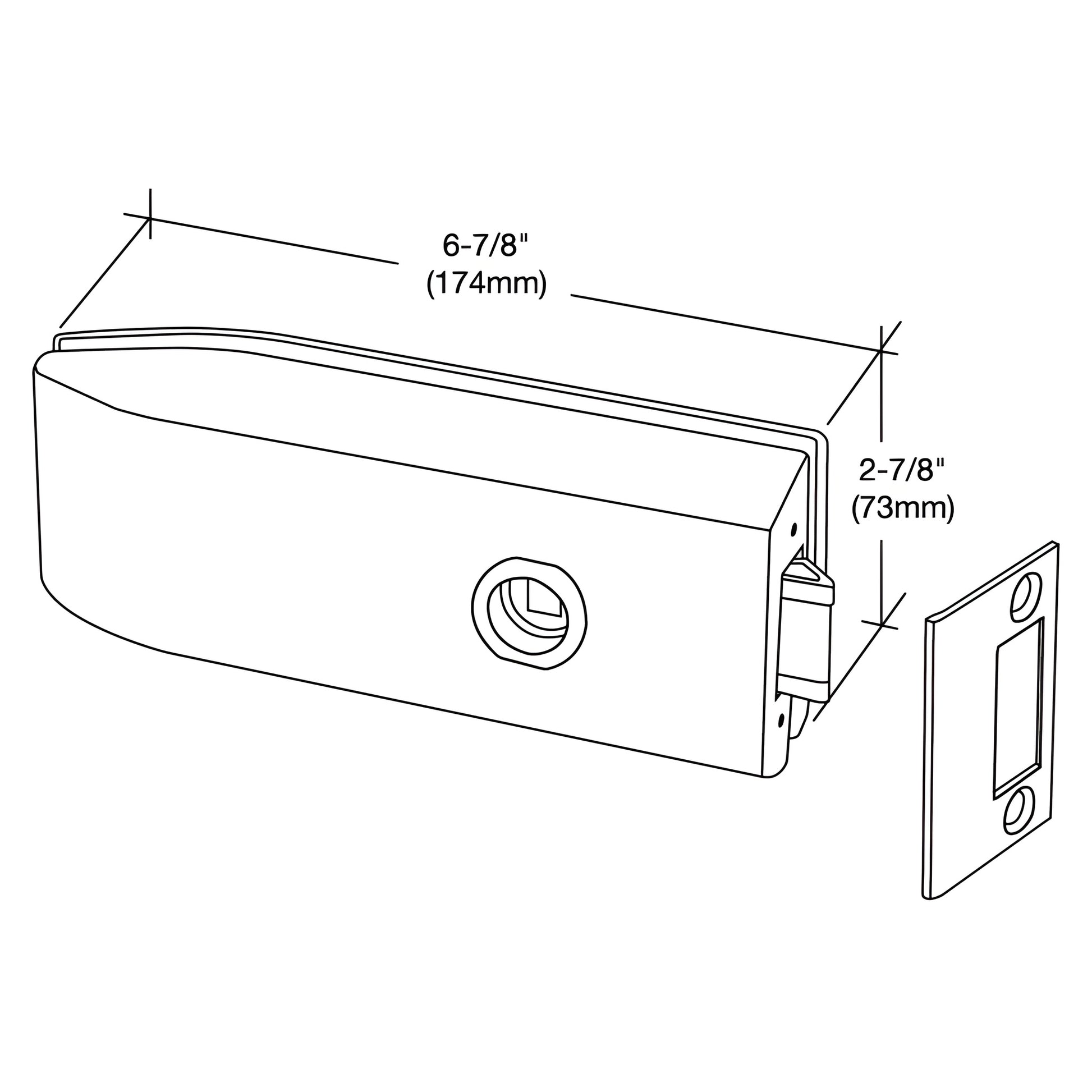

• Clear-anodized 304 stainless steel glass-mounted keyed latch (SKU PTH312A) for 3/8"-1/2" (10-12mm) tempered glass doors.

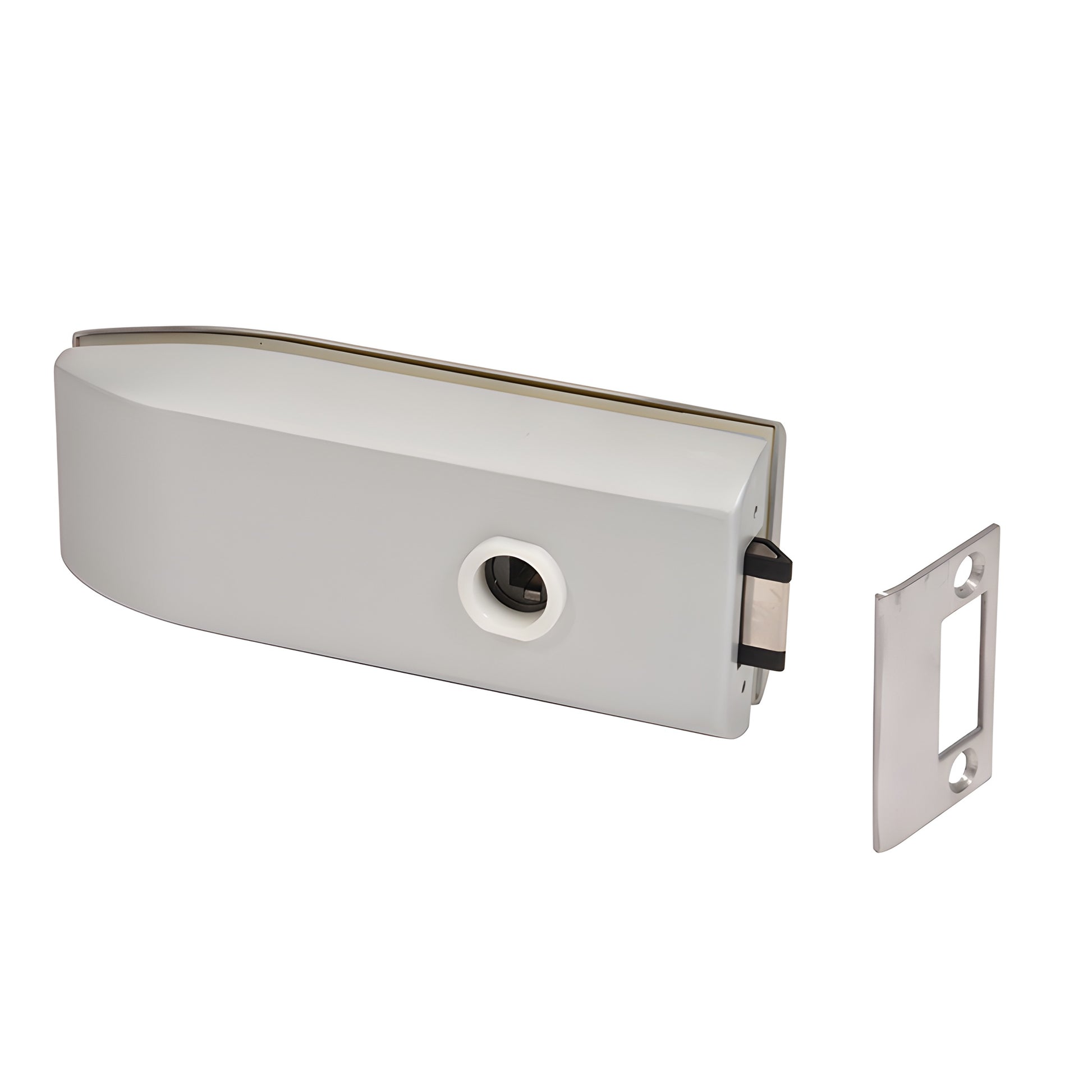

  • Clear-anodized 304 stainless steel glass-mounted keyed latch (SKU PTH312A) for 3/8"-1/2" (10-12mm) tempered glass doors.
1 2

CRL

CRL Clear Anodized Glass Door Passage Latch

CRL Clear Anodized Glass Door Passage Latch

$99.66 CAD
$99.66 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PTH312A
Shipping Weight: 1.83 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Material
304 Grade Stainless Steel

Overview

  • Works on single or double doors
  • For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • 304 grade stainless steel construction
  • Use with monolithic tempered glass

The CRL PTH311 Glass Mounted Latch (SKU: PTH312A) is supplied assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when not using the PTH314 latch keeper. For inswing doors with the PTH314 keeper, use the EC3 extended-length keyed cylinder. This stainless steel, glass-mounted keyed latch is ideal for securing tempered glass commercial and residential doors where a reliable, low-profile lock is required.

NOTE: For double-door installations, the door with the keeper should be secured at the bottom with a separate lock.

GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes

COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, template, and instructions.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Order the CRL PTH311 glass-mounted keyed latch for tempered glass doors today — contact us for availability and lead time.
