CRL Trim-Line 42" Clear Anodized Surface Mount Glass Railing Post Kit
CRL Trim-Line 42" Clear Anodized Surface Mount Glass Railing Post Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HPT42KCA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Clear Anodized
Height
2-3/8 in. (60 mm)
Length
42 in. (1067 mm)
Material
Aluminum
Mounting Hole Diameter
7/16 in. (11 mm)
Width
1-1/8 in. (29 mm)
Overview
- 2-3/8" x 1-1/8" post
- Available in several attractive colors (painted-to-order)
- Three standard post heights; custom heights available

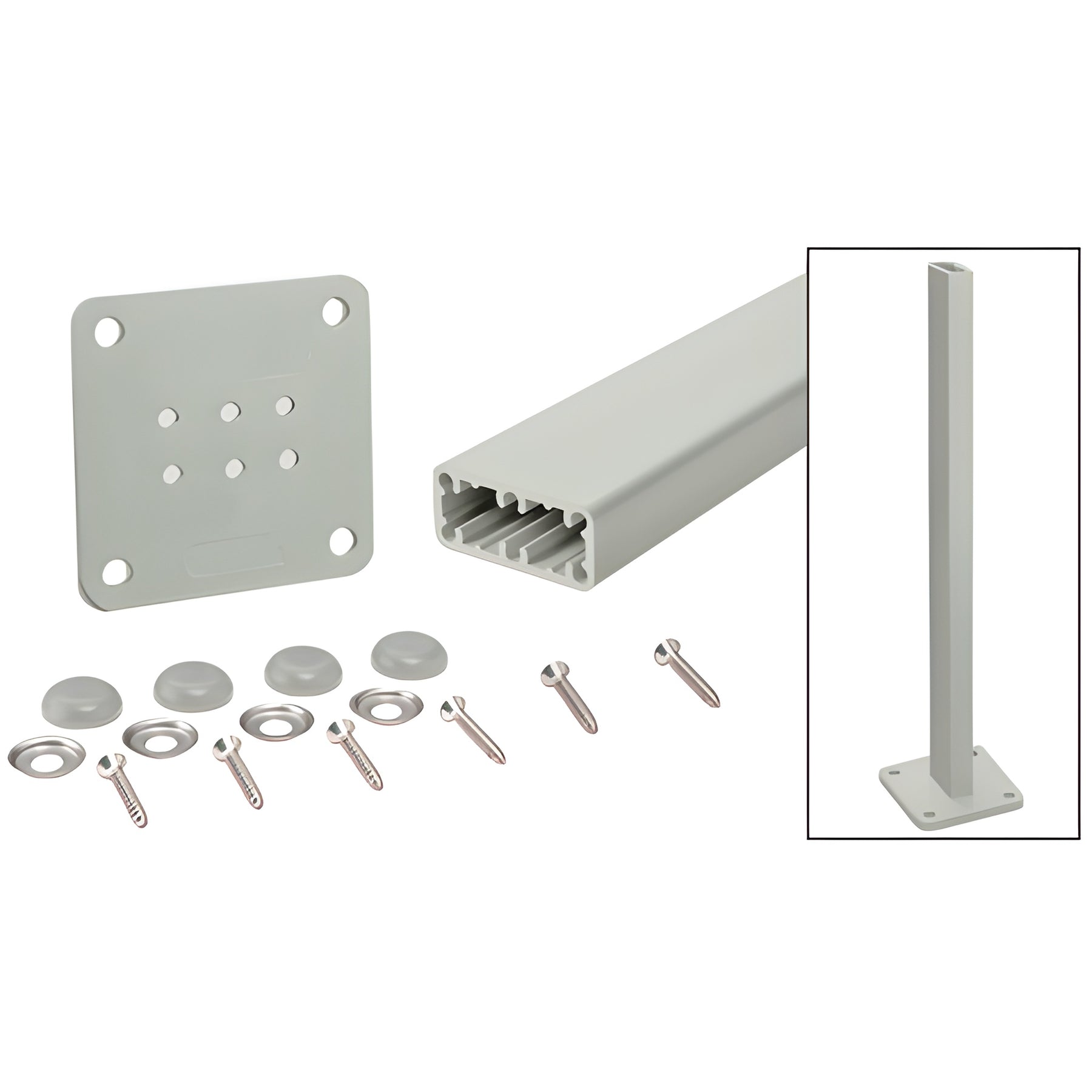

- Complete kit: base plate, moisture barrier gasket, stainless washers, screws, and color-match bolt cover buttons
CRL Hansen Trim-line Surface Mount Post Kits (SKU: HPT42KCA) include Base Plate (BP5T), Moisture Barrier Gasket (BPG1BL), Base Plate Screws (BPS112), Stainless Steel Washers (WSHR1), and Color Match Bolt Cover Buttons (BTN1). These surface-mount post kits are ideal for glass railing and balustrade installations where a low-profile, trim-line appearance and matching hardware finish are required. Choose from three standard heights and several factory-finished colors; custom heights and custom colors available on request.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable. Colors may vary slightly from images due to monitor settings.
Order the HPT42KCA Trim-line Surface Mount Post Kit or contact CRL for custom heights and color matching.
