- Designed for 3/8" (10 mm) glass (glass not included)
- Bolt-through top hangers for immediate fabrication and installation — no adhesive wait
- Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze
- Utilizes traditional metal side jambs for a frameless sliding shower door look
- Custom cut-to-size units also available
- Specifically for monolithic tempered glass panels

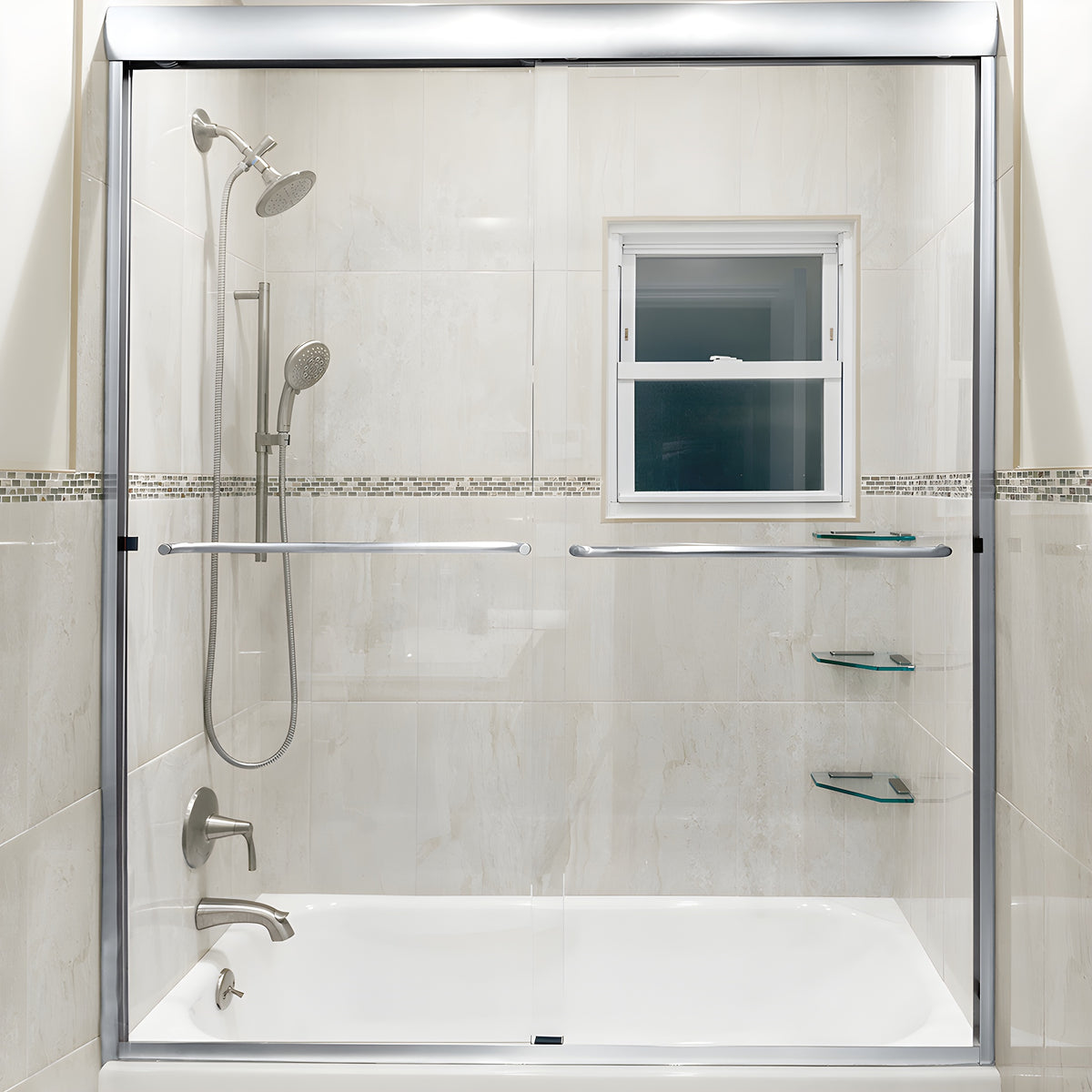

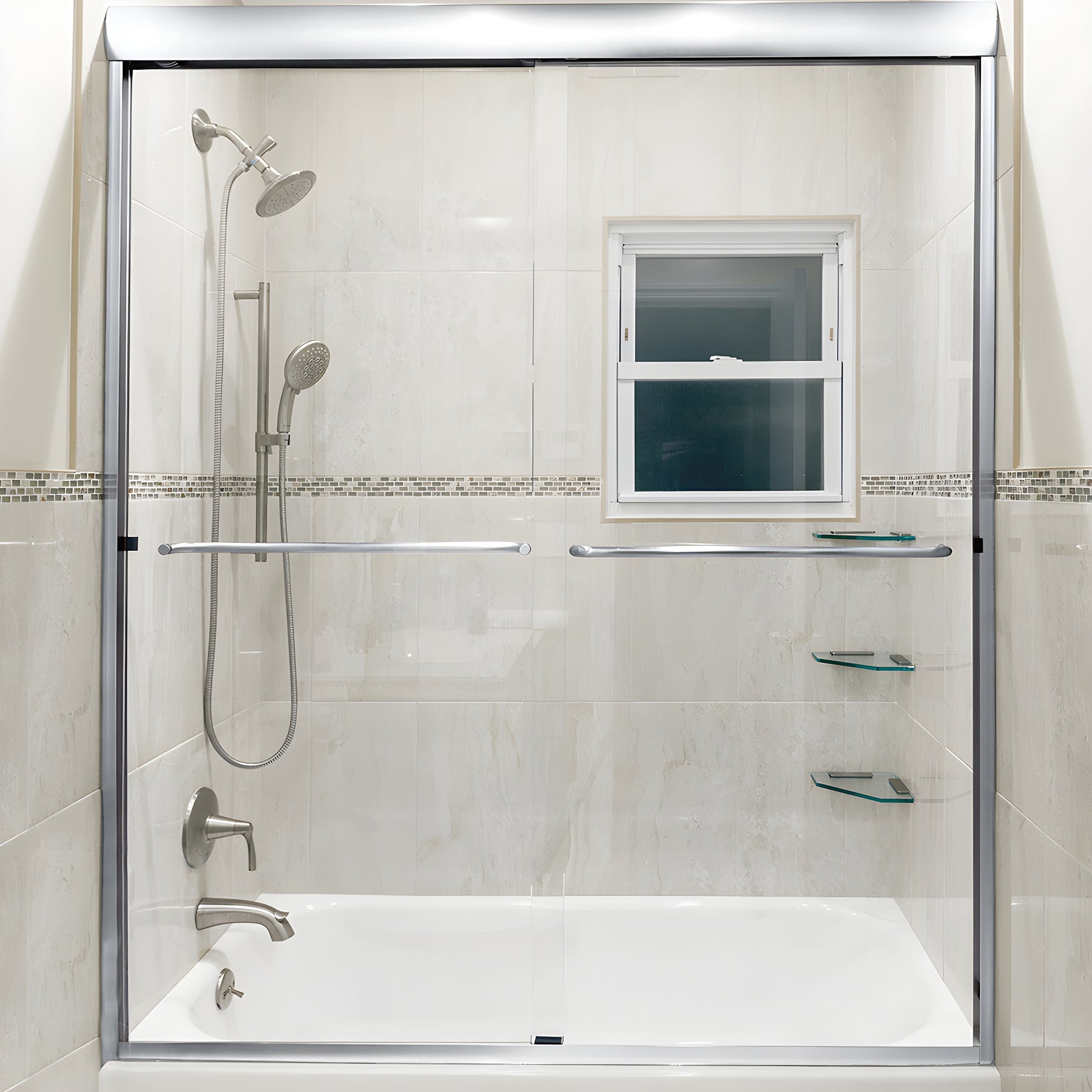

Cottage Series DK Sliders — SKU: DK386072BA utilize metal side jambs to achieve a traditional frameless sliding shower door appearance. Bolt-through top hangers enable immediate fabrication and installation, eliminating delays from adhesive curing. DK Series kits come in Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes (other finishes available by special order). These kits are a ready solution for frameless sliding shower door installations using 3/8" (10 mm) tempered glass.

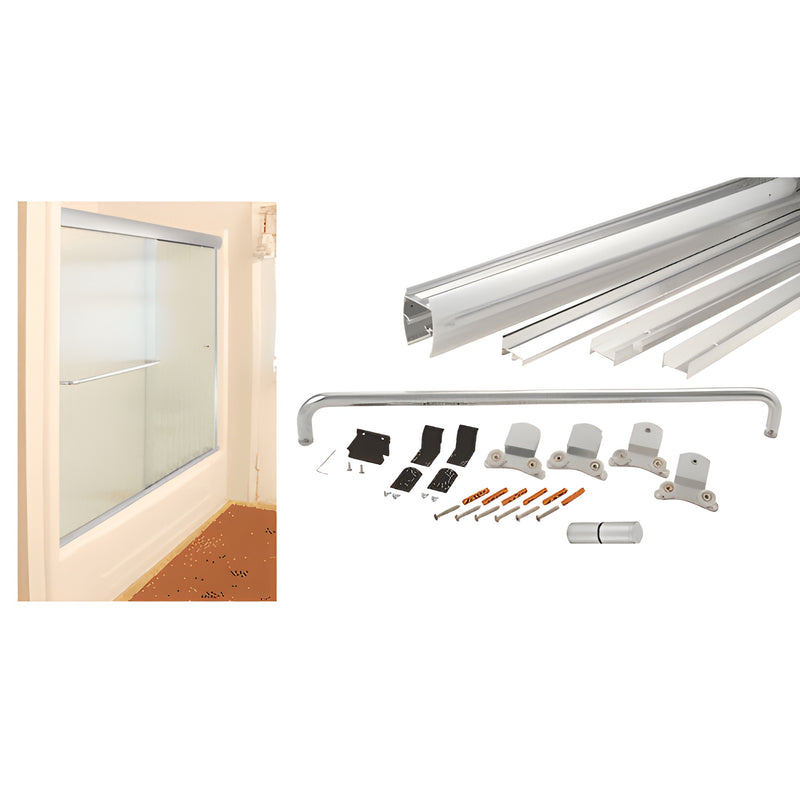

The top-hung stock units include: extruded aluminum header, side jambs, bottom sill, top hangers for 3/8" (10 mm) glass, back-to-back knob, 24" (610 mm) towel bar, nylon rollers, bottom guide, screws, and bumpers. Tempered glass and silicone sealant are supplied by the installer. With all rollers overhead, the bottom sill and side jambs remain uncluttered for easier cleaning. Available in up to six stock sizes. Extrusions, bottom guides, hardware packages, and other accessories may be ordered separately. Custom kits are available in multiple configurations and are cut-to-size for easy field installation —
click here to inquire about custom sizes.
SPECIFICATIONS:
Materials:
- Extrusions: Aluminum
- Towel Bar: Brass tubing
- Knob: Solid brass
Glass Thickness:
3/8" (10 mm) — glass not included in kit
Glass Fabrication:
Towel bar — two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob — one 1/2" (12 mm) diameter hole; Top hangers — four 1/2" (12 mm) diameter holes (two per glass panel).
