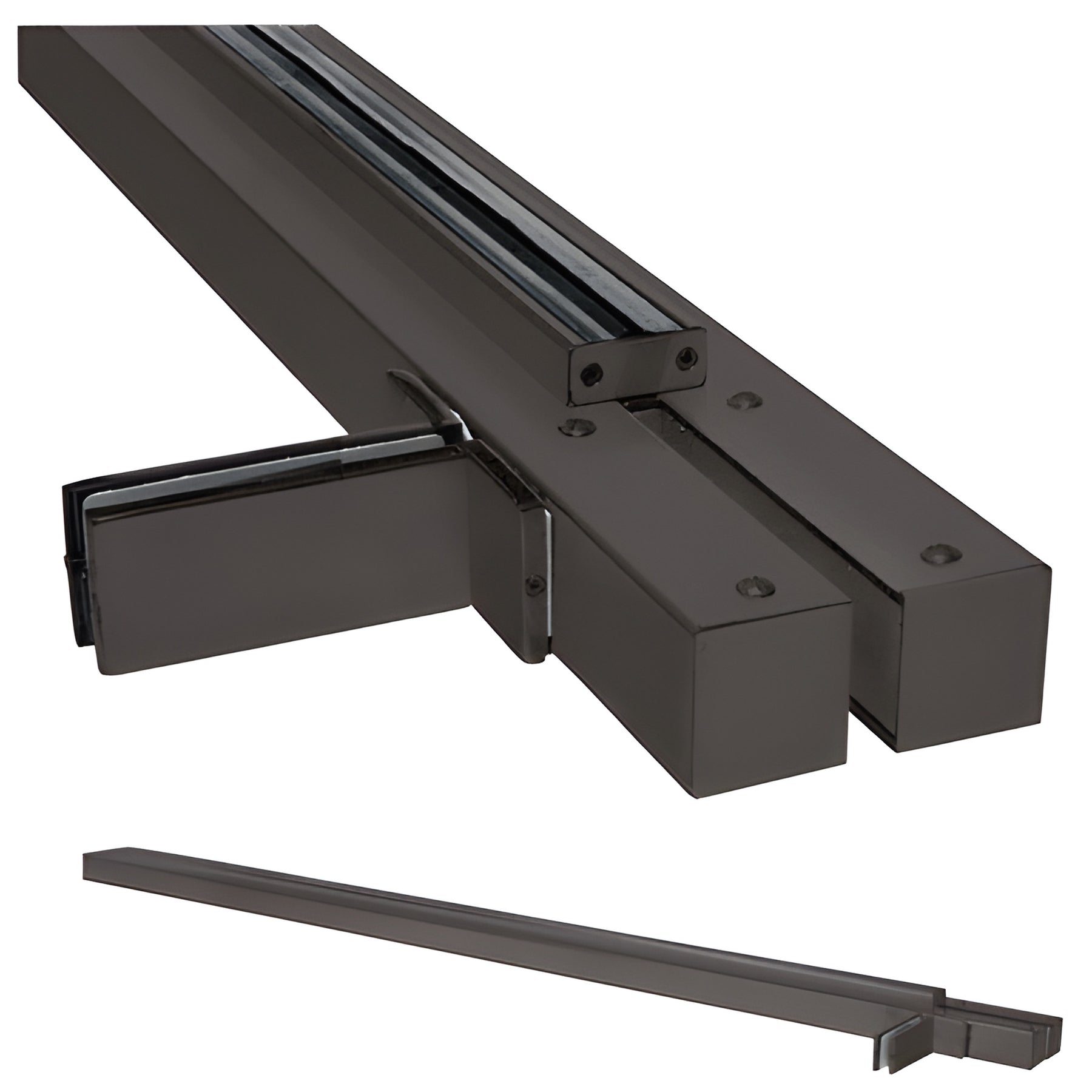

CRL Custom Black Bronze Anodized Double Door Wall-to-Glass Header

• Adds rigidity and helps stabilize your all-glass entrance opening
• Only available on special order
• For glass-to-glass or wall-to-glass installations — with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available as well
• Each floating header is customized to your project requirements

CRL Floating Headers With Fin Brackets were developed to add rigidity to all-glass entrances. These custom floating headers with fin supports reduce deflection from wind, stack load pressure, and impacts for single- or double-door installations. They accommodate glass-to-wall and wall-to-glass configurations and can be prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking-beam pivots, or overhead concealed door closers. Header dimension: 4" x 1-3/4" (102 x 44.5 mm). SKU: FH4FWGDUCD.

For technical details or to request a custom floating header for glass doors, contact the CRL Technical Sales Department.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for the intended use and site conditions. Installers must be qualified and knowledgeable about local, state, and federal regulations, safety factors, and the appropriate selection of fixings and procedures.

If the transom weight above the header exceeds 100 pounds (45.4 kg), the transom must be supported from the ceiling to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings, or contact Technical Sales for assistance.


Contact CRL Technical Sales to discuss custom lengths, finishes, or installation options and to request a quote.
