CRL Brushed Stainless Steel 1-1/4 in Square Standoff Cap for Glass
CRL Brushed Stainless Steel 1-1/4 in Square Standoff Cap for Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCAP125CBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Thickness
Specify
Width
1-1/4
Overview
- Uniquely styled square cap design for clean, modern finishes
- Custom thickness options for glass, acrylic, and panel materials
- Use with 1-1/4" (31.7 mm) square base or as decorative wall fastener for signage and panels

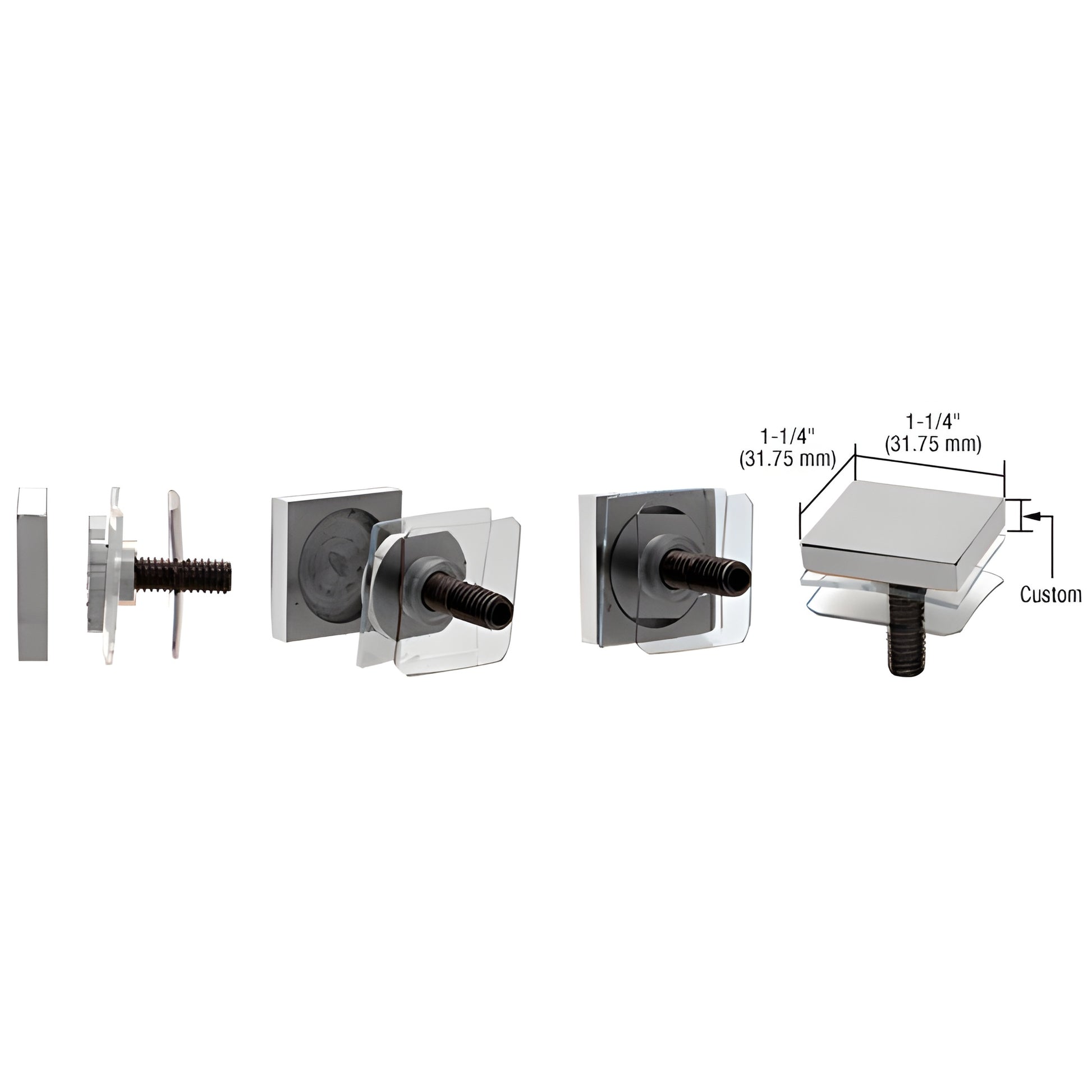

CRL's 1-1/4" (31.7 mm) Custom Square Standoff Cap Assemblies (SKU: SCAP125CBS) feature an exclusive two-piece design that simplifies installation for glass panels, acrylic signs, and decorative displays. The removable allen-screw secondary cap has two flat sides to lock to the panel. Once secured, the top cap slips over the secondary cap, aligns with the square base and is held in place with undetectable double-sided tape. This engineered fit eliminates trial-and-error alignment during mounting. Requires a 5/8" (16 mm) hole for assembly.
The complete assembly includes:
- (1) square cap with double-sided tape
- (1) secondary cap with removable allen screw
- (1) 5/16"-18 x 1" allen screw
- (1) clear plastic washer with sleeve
- (1) clear plastic washer
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order SCAP125CBS today to streamline installation of square standoff caps for glass panels and decorative signage.
