CRL Custom Cashier Service Window - Security Counter Unit
Item# SCW103C
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Specify
Glazing Thickness
1/4 in. (6 mm)
Material
Aluminum, Stainless Steel
Shelf Depth
18 in. (457.2 mm)
Shelf Thickness
2 in. (50.8 mm)
Shelf Width
30 in. (762 mm)
- Includes stainless steel shelf with built-in coin/cash tray and Cat. No. 834A speak-thru
- For stock-size, ready-to-ship unit see Catalog # SCW103N
- Frame: satin anodized aluminum; Shelf: brushed stainless steel #4 finish
- Drawings and specifications available

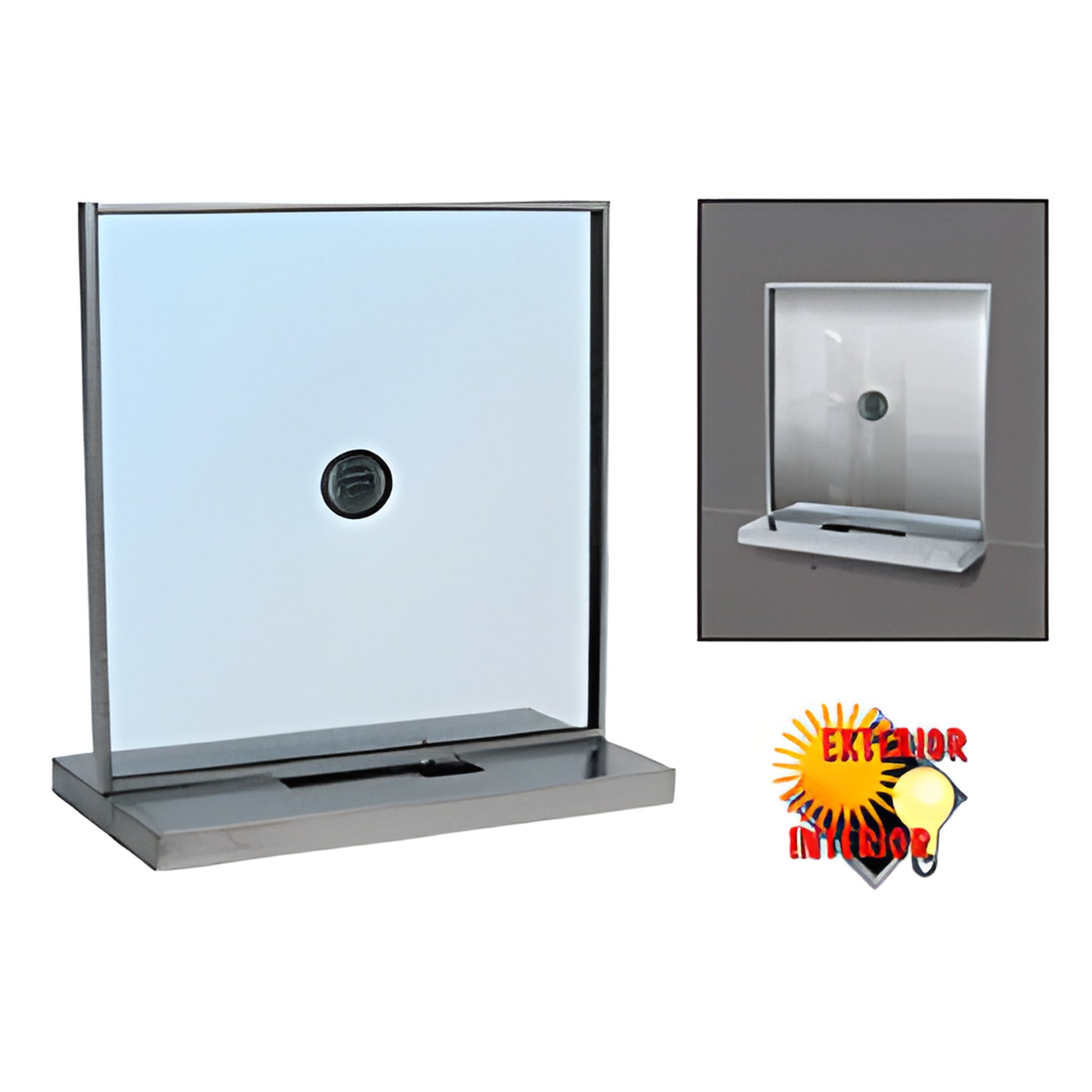

The CRL Cashier Window (SKU SCW103C) features a stationary 1/4" (6 mm) tempered clear glass panel set in a satin anodized aluminum frame. The supplied Cat. No. 834A speak-thru enables safe, clear communication while the integrated stainless steel shelf with recessed coin and cash tray provides a durable transaction surface. Shelf dimensions: 30" (762 mm) wide x 18" (457 mm) deep x 2" (51 mm) thick. Unit ships ready for immediate installation; an overhang is recommended for exterior installations.
SPECIFICATIONS:
Materials: Aluminum extrusion; tempered safety glass; stainless steel
Finishes: Frame - satin anodized; Shelf - brushed stainless steel #4 finish
Glazing: 1/4" (6 mm) tempered safety glass
Bullet Resistance: Not rated
Instructions: Included
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Why choose the SCW103C? Durable stainless steel shelf, integrated coin/cash tray, and an included speak-thru make this cashier window ideal for teller booths, ticket counters, and secure transaction points.
Contact CRL to request drawings, specifications, or to place an order.
CAD Drawings - dwg
