CRL 6" Square Door Rail with Lock for 1/2" Glass - Custom Length

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

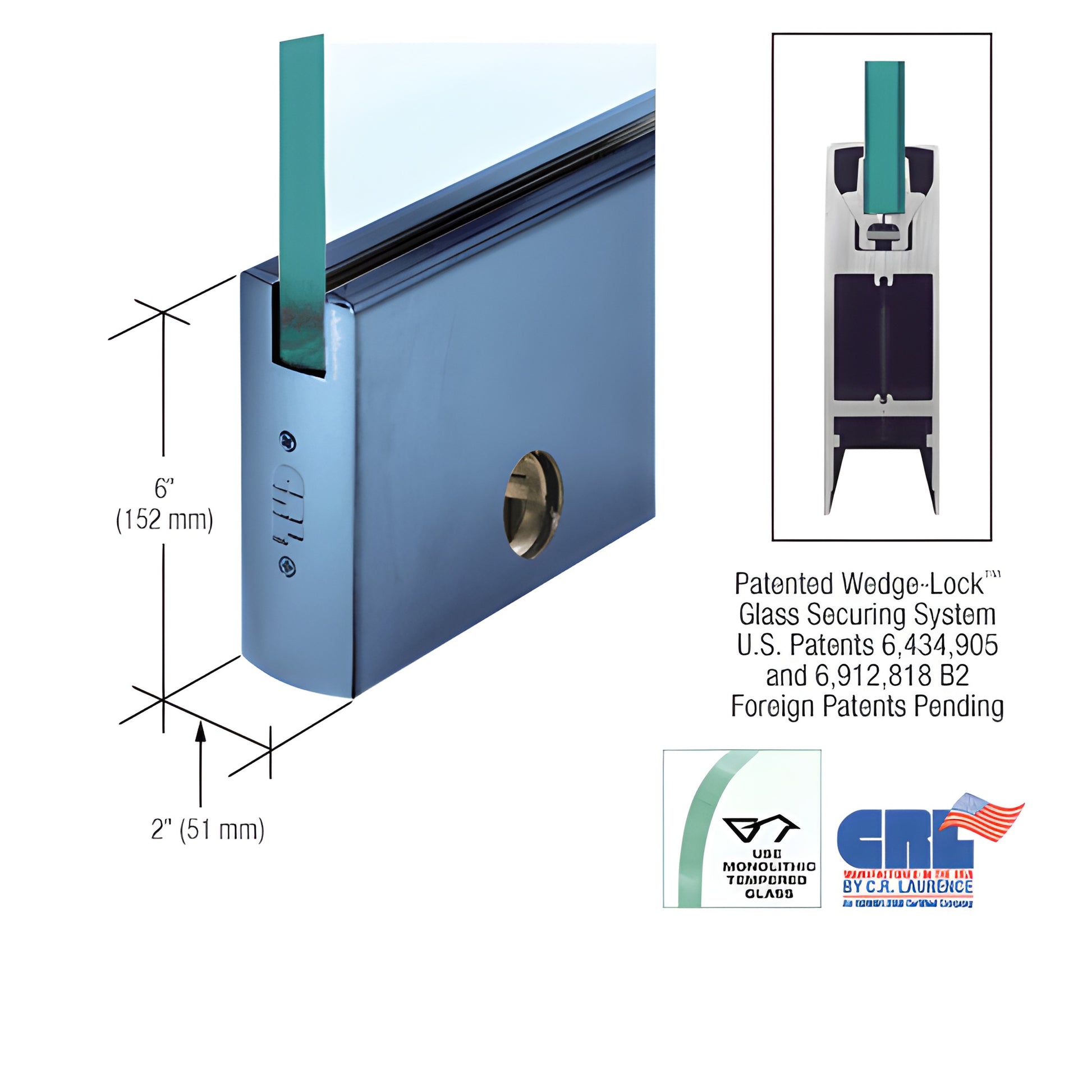

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPT12CL) uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure tempered glass in door rails. The system applies downward pressure from the bottom of the rail via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges in the rail draw the extrusions together, producing high clamping force (more than 900 lbs. in the 9" corner rail) for reliable glass retention in full-length door rails.

The Wedge-Lock® system delivers fast installation and durable performance for commercial glass doors. Experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated with end caps installed; after mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System (standard on top and bottom rails) allows ±1/8" (3.2 mm) fore/aft adjustment without removing the door.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide and the two outer bolts provide the 1/8" adjustment. The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other product highlights and long-term benefits:

• Accepts 3/8" or 1/2" (10 or 12 mm) tempered glass
• Rigid single-component housing resists shift and loss of adjustment
• Internal components remain assembled for faster installs
• Durable glass-securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms, pivots, closer arms, and keyed cylinders/thumbturns must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in multiple standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from our Technical Sales Department.

ORDERING INFORMATION:
