CRL 1/2" Glass Low-Profile Square Door Rail with Lock, Custom Length

• Custom length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

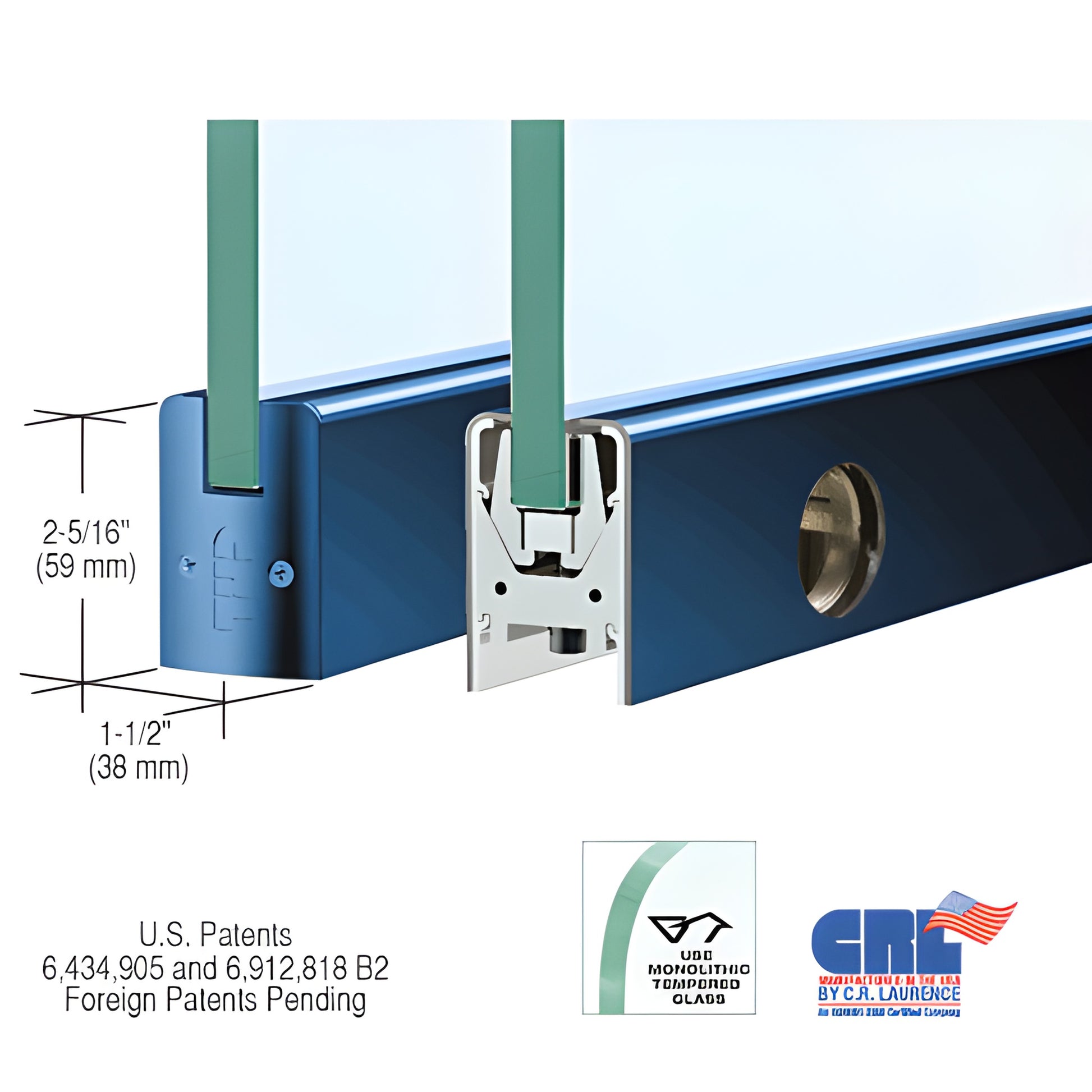

Our CRL Low Profile Door Rail (SKU: DR2SPT12CL) measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches.

Key differentiators:

• Fastest installation time among door rail systems — experienced installers can prepare a door in under ten minutes
• Built-in adjustable door alignment slide (standard on top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door
• Rigid single-component housing resists shifting or loss of adjustment over time
• Internal components stay assembled for quick installation; glass securing pads designed for longevity in extreme environments
• Prepped to accept common pivot inserts (pivot inserts and arms/pivots sold separately)

Installation notes: After installing the rail, attach the door arm or pivot (not included) to the adjustable alignment slide. To make field adjustments after installation, remove the end cap to access three socket head cap bolts: center bolt locks the slide; the two outer bolts provide the ±1/8" (3 mm) adjustment. The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Compatibility: Models available to accept 3/8" to 3/4" (10 or 19 mm) glass. All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, and thumbturns must be ordered separately.

Finishes & ordering: Standard finishes available; custom finishes and widths quoted on request. End caps are included in stock lengths; specify total rail length (including end caps) when ordering custom lengths. For templates, rail specifications, or hardware packages, contact CRL Technical Sales via e-mail.

Product warning: Rails supplied with locks include the latch mechanism; matching finish keyed cylinders or thumbturns are not included and must be ordered separately.
