CRL 1/2" Low-Profile Square Glass Rail, Custom Color/Length (No Lock)

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation)
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

SKU: DR2SPT12C

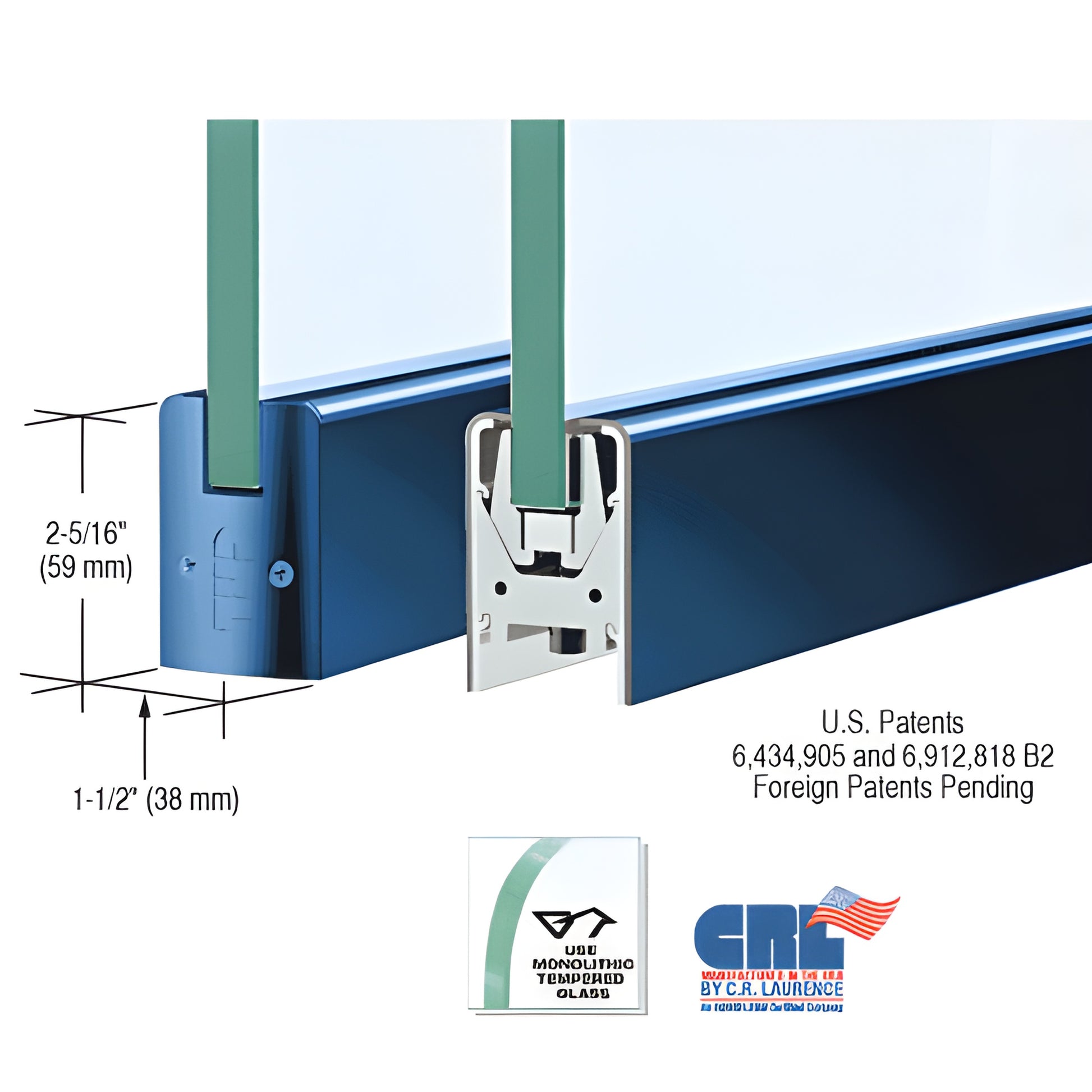

Our CRL Low Profile Door Rail is a compact, high-performance door rail designed for 1/2" (12 mm) monolithic tempered glass. Measuring only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, it integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for a secure, durable attachment and industry-leading installation speed.

Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install out of the carton. The Wedge-Lock® system reduces prep time: experienced installers can have a door ready for installation in under ten minutes.

The assembled adjustable door alignment slide (standard on both top and bottom rails) allows field adjustment of ±1/8" (3 mm) toward or away from the jamb without removing the door. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide and the two outer bolts provide the ±1/8" adjustment. The low-profile adjustable slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Additional benefits of Wedge-Lock® door rails:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and loss of adjustment over time
• Internal components remain in place—no removal required before installation
• Glass securing pads designed for long life in extreme environments

Note: All Wedge-Lock® door rails include the built-in jamb alignment block. Arms, pivots, closer arms, and floor or overhead pivots are sold separately to meet job requirements. Pivot inserts 1NT701, 1NT703, and 1NT704 are sold separately. Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.

CRL Wedge-Lock® door rails are offered in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
