CRL Custom Color Low-Profile Tapered Door Rail 1/2in Glass, No Lock

• Custom length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System for fast, secure installation

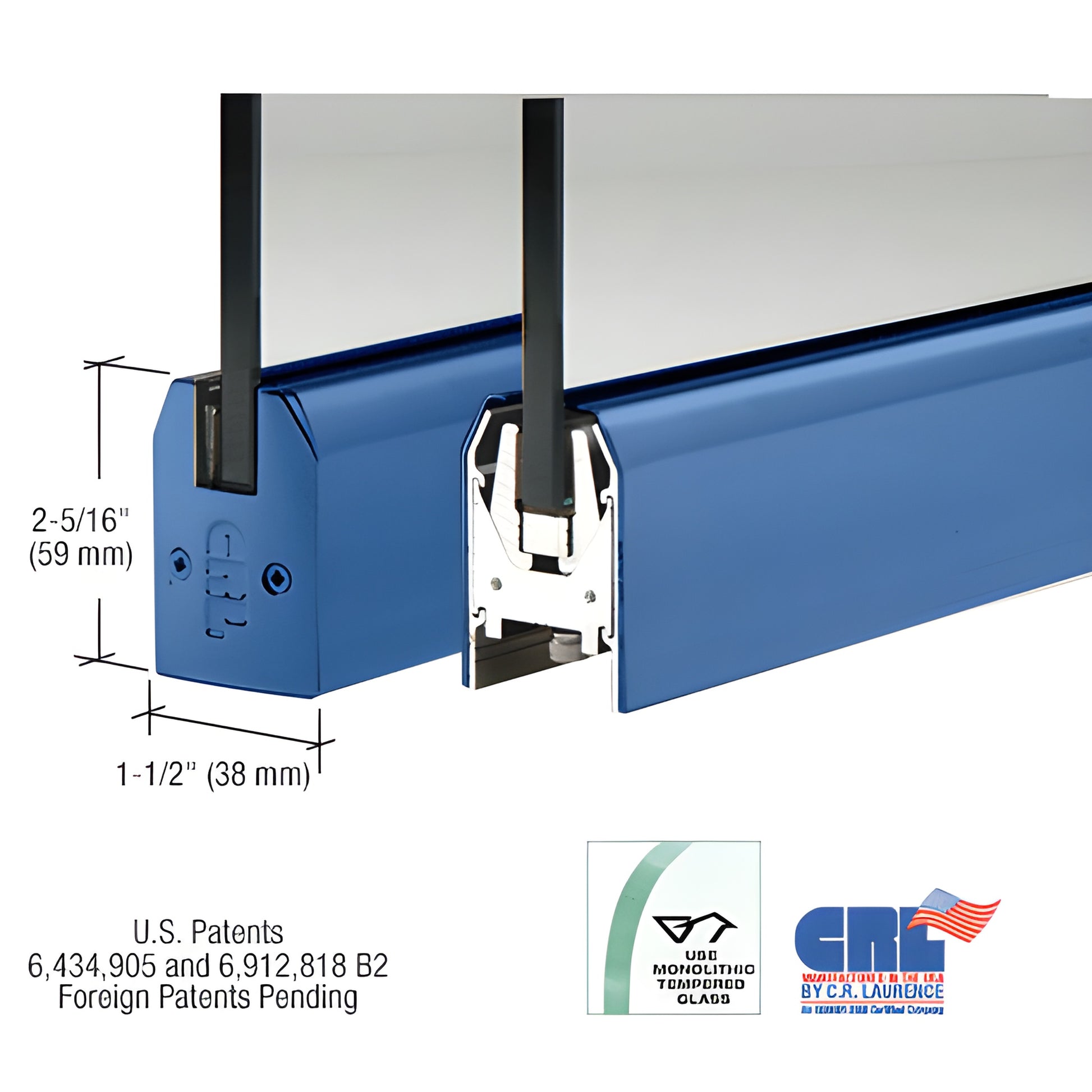

• Low profile rails: 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks; matching sidelite rails available

SKU: DR2TPT12C

CRL Low Profile Door Rail is engineered for 1/2" (12 mm) monolithic tempered glass and measures only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It includes our patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) and ships ready-to-install with End Caps, installation instructions, and adjustment wrenches.

Key differentiators:

• Fastest installation among door rail systems — experienced installers can prepare a door in under 10 minutes
• Rigid, single-component housing that resists shifting or loss of adjustment
• Internal components remain in place during installation; no disassembly required
• Durable glass securing pads designed for longevity in extreme environments
• Adjustable Door Alignment System standard on top and bottom rails — allows ±1/8" (3 mm) adjustment without removing the door

The rail comes completely fabricated with the adjustable door alignment slide preassembled. After installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide lets pivots with slotted grooves be positioned other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other available models accept 3/8" to 3/4" (10 to 19 mm) glass. All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, thumbturns, and pivot inserts (1NT701, 1NT703, 1NT704) are ordered separately. Closer arms and floor or overhead pivots must also be ordered separately.

Ordering & finishes: Standard stock finishes available; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
