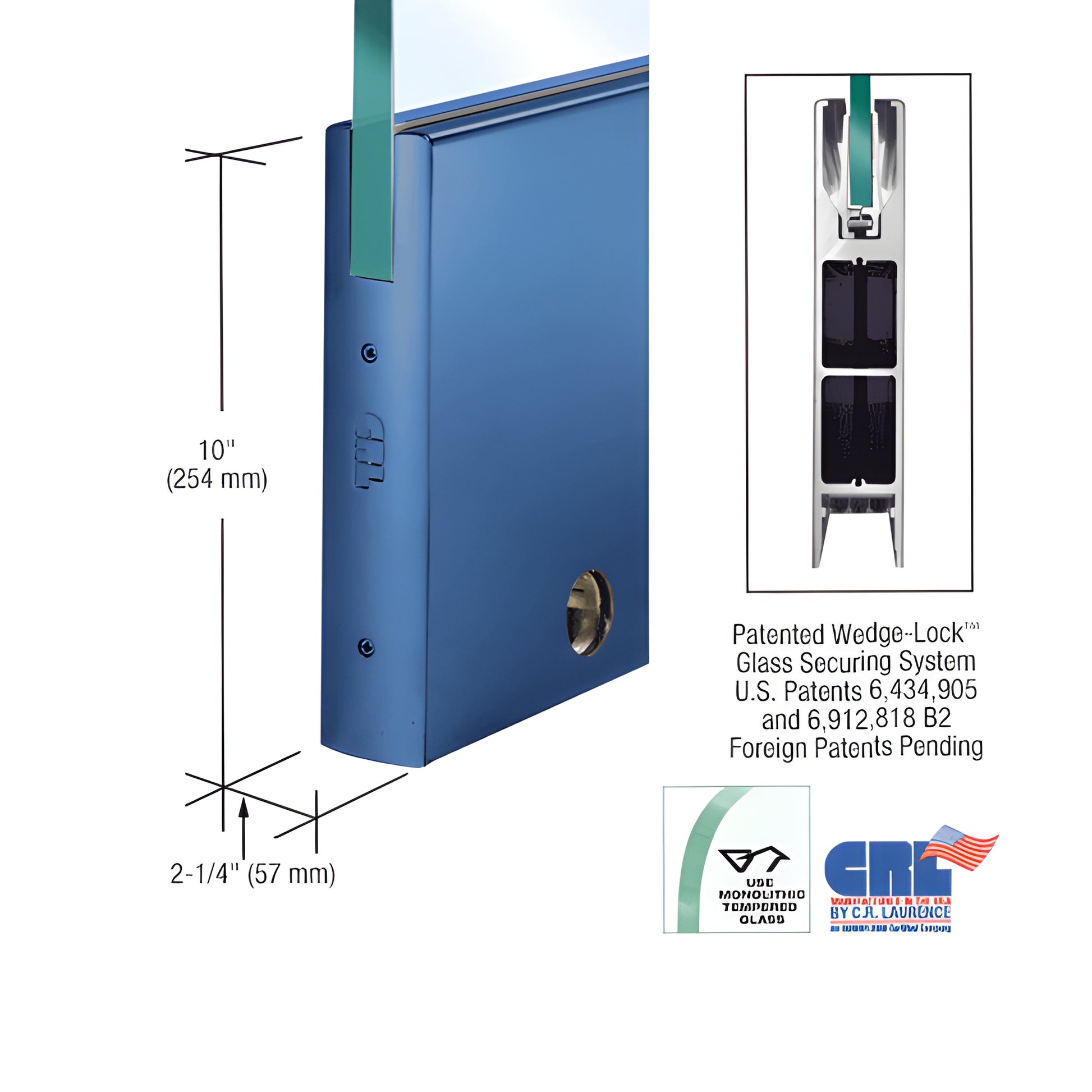

CRL 10in Square 3/4in Glass Door Rail w/ Lock - Custom Color & Length

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR10SPT34CL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to clamp monolithic tempered glass securely in place. The patented design applies downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail and wedge together—creating exceptional holding force (more than 900 lbs. in the 9" corner rail).

NOTE: Actual Product Height: 10” (254 mm)

Benefits and key features:

• Fastest installation of any door rail system—experienced installers can prepare a door for installation in under ten minutes.
• Comes completely fabricated and ready-to-install with End Caps installed; attach door arm or pivot to the preassembled adjustable door alignment slide (arm/pivot not included).
• Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails—adjustable via three socket head cap bolts hidden behind the End Cap.
• Low-profile adjustable slide permits non‑standard setback positioning for vertically out-of-square openings.
• Models accept 3/8" to 3/4" (10 to 19 mm) glass; rigid single-component housing resists shifting or loss of adjustment; internal components remain installed during fitting; durable glass securing pads for extreme environments.
• Built-in Jamb Alignment Block included; arms and pivots must be ordered separately.

Available in several standard architectural finishes and quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales; contact us via e-mail.

Ordering information:

• All door rails include the standard Kwik-
