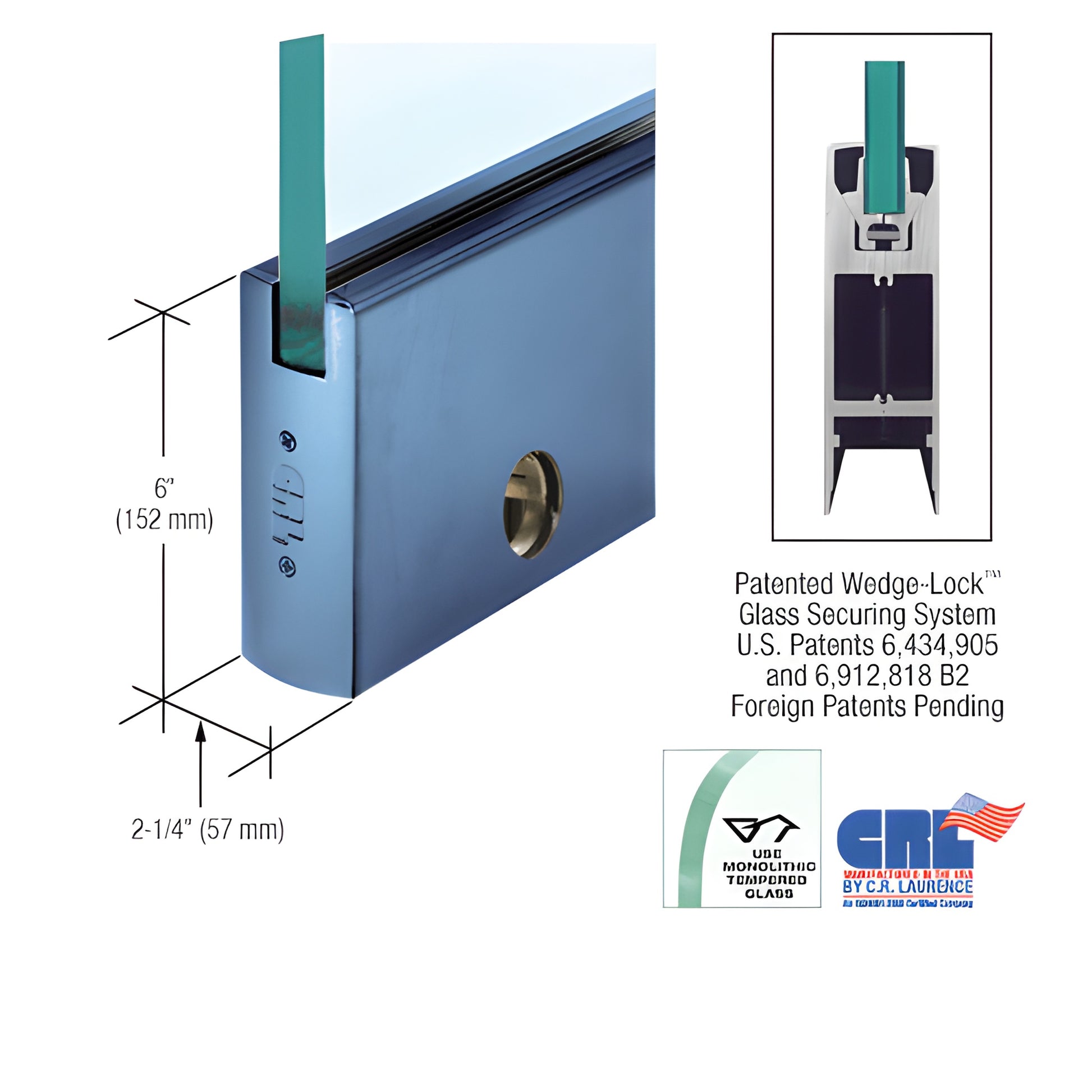

CRL 6" Square Glass Door Rail with Lock - 3/4" Glass, Custom Length

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPT34CL) is engineered for secure, long-lasting glass doors. The exclusive Wedge-Lock® Securing System uses two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the bar is pulled down, angled wedges draw the extrusions together and compress the door retaining gasket—producing more than 900 lbs. of force in the 9" (228.6 mm) Corner Rail. This wedge-action design secures monolithic tempered glass without two-piece housings that can shift over time.

Key differentiators and long-tail features:

• Patented wedge-lock method delivers exceptional glass retention for commercial tempered glass doors and storefronts.
• Fastest door-rail installation in the industry—experienced installers can prepare a door in under ten minutes.
• Comes fully fabricated and ready-to-install with End Caps installed; only attachment of pivot or door arm (not included) is required before hanging.
• Standard Adjustable Door Alignment System (top & bottom rails) allows 1/8" (3.2 mm) in/out adjustment without removing the door—ideal for vertically out-of-square openings.
• Rigid single-component housing resists shifting and maintains alignment over time; internal components remain in place during installation.
• Glass securing pads designed for longevity in extreme environments.

Installation & adjustment highlights:

• Remove End Cap to access three socket head cap bolts—center bolt secures the slide; outer bolts adjust ±1/8" (3.2 mm).
• Low-profile adjustable slide permits pivot placement other than the American Standard 2-3/4" (69.8 mm) setback.

Other product notes:

• NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.
• Models available to accept 3/8" or 1/2" (10 or 12 mm) glass as well as 3/4" (19 mm) custom lengths.
• Rail specifications, templates and hardware packages are available from CRL Technical Sales.

ORDERING INFORMATION:

• All Door Rails supplied with
