CRL 3/8" Glass Low-Profile Square Door Rail with Lock, Custom Length

• Custom Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

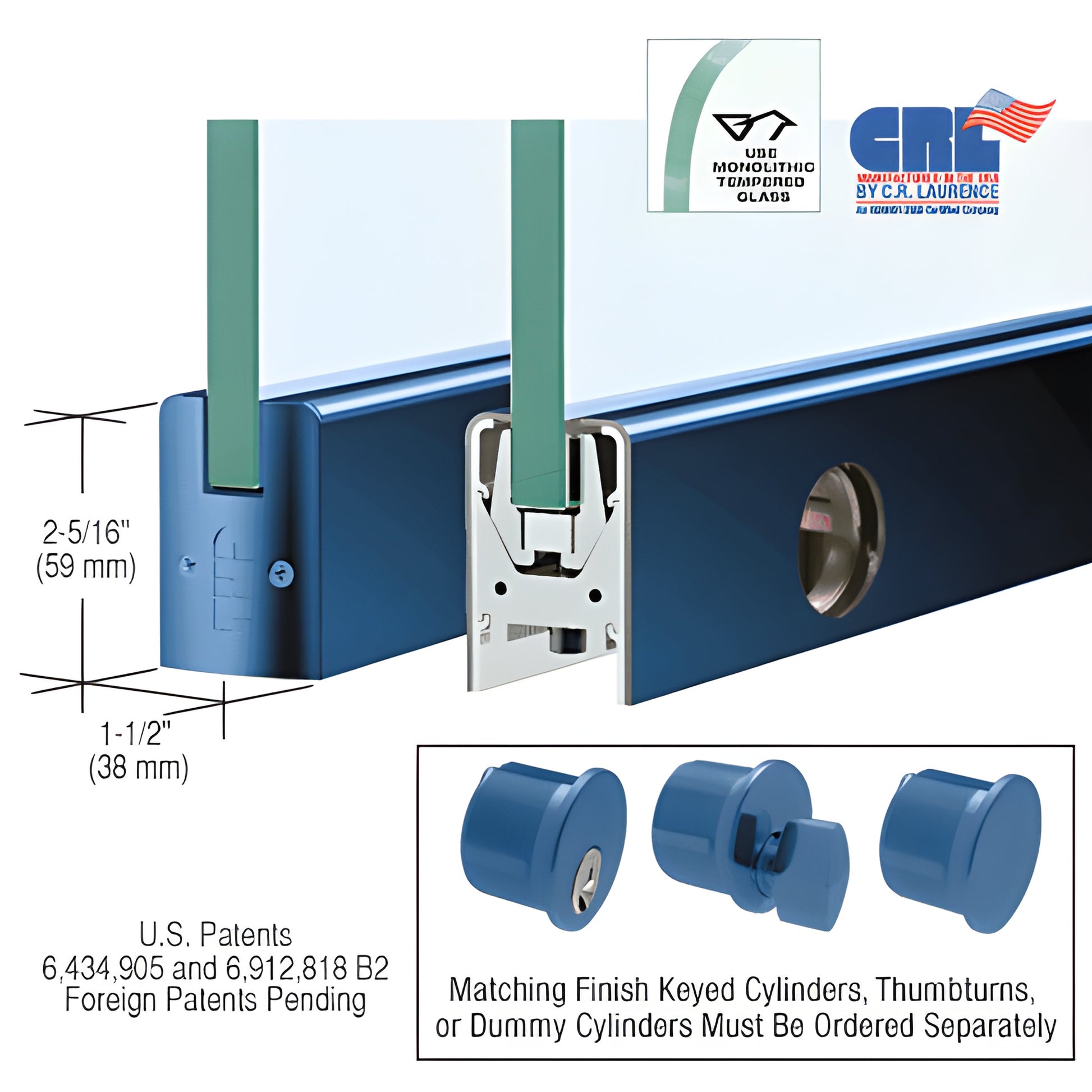

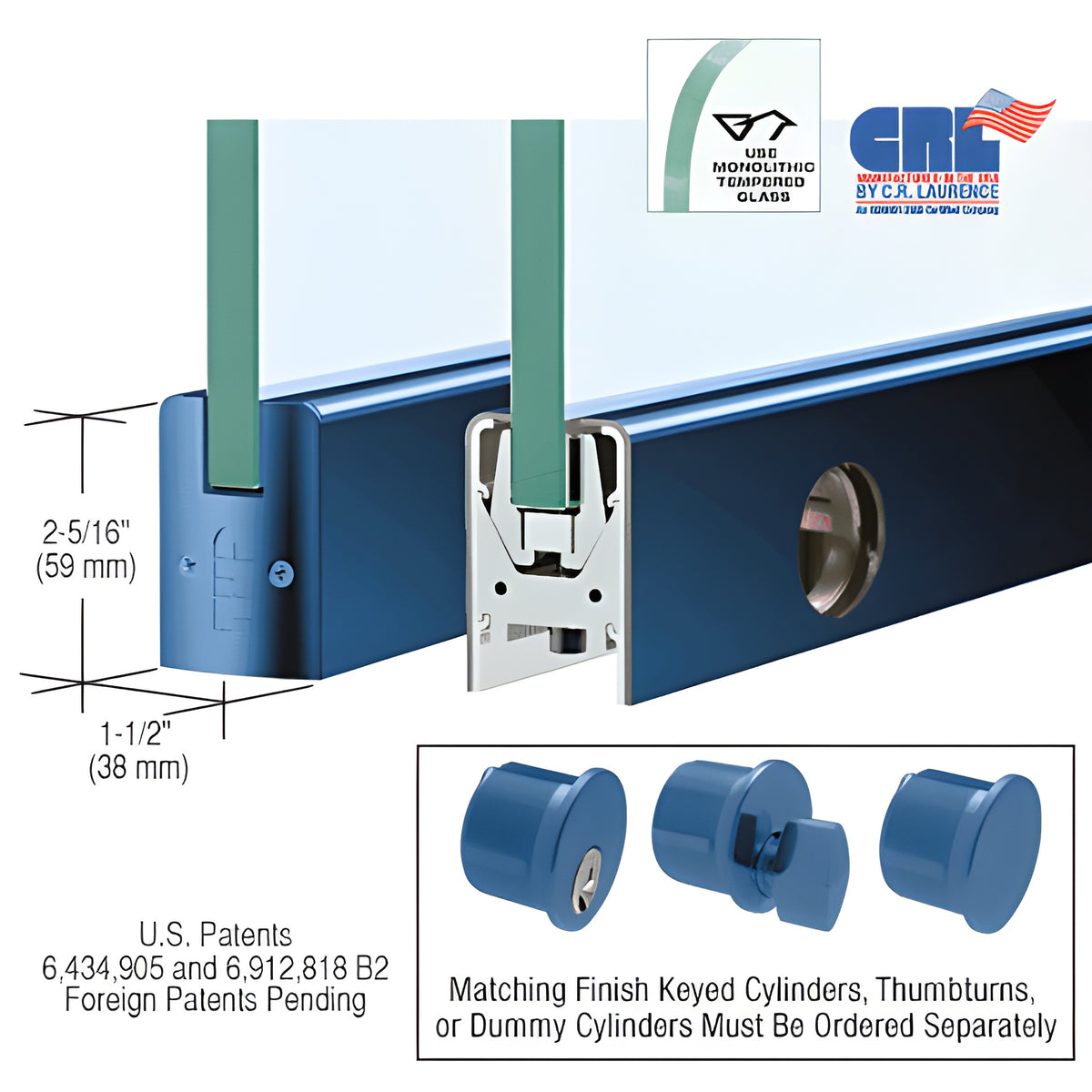

Our CRL Low Profile Door Rail (SKU: DR2SPT38CL) is engineered for 3/8" (10 mm) monolithic tempered glass and measures just 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent No. EP 1 404 939 B1) for a secure, long-lasting glass attachment—ideal for commercial storefronts, interior glass doors, and architectural glass installations. Rails ship complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance.

NOTE: Actual Product Height: 2-5/16” (59 mm)

The Wedge-Lock® system delivers the fastest installation times among door rail systems—experienced installers can prepare a door for installation in under ten minutes. Rails come fully fabricated with the adjustable door alignment slide pre-assembled; simply attach the door arm or pivot (not included) to hang the door. The adjustable alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door, standard on both top and bottom rails.

To adjust after installation, remove the End Cap to access three socket head cap bolts: the center secures the slide, and the two outer bolts provide the ±1/8" (3 mm) fine adjustment. The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings—useful for retrofit or non-standard jambs.

Key differentiators and long-tail benefits:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass on select models
• Rigid single-component housing resists shifting and long-term misalignment (not made of two halves)
• Internal components remain assembled—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
