CRL 3/8" Glass Low-Profile Square Door Rail (No Lock)- Custom Length

• Custom Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

SKU: DR2SPT38C

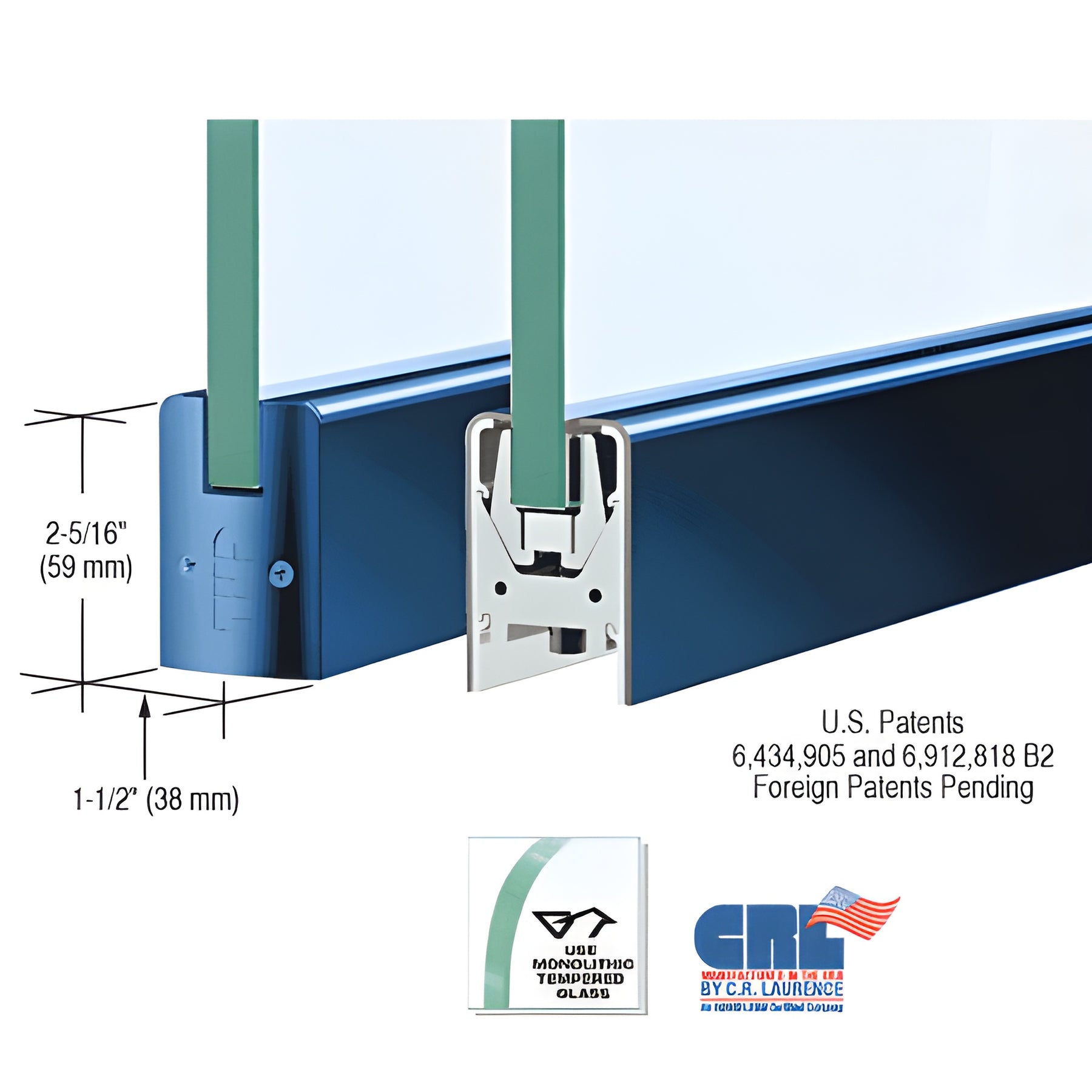

CRL Low Profile Door Rail—compact at 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide—features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for 3/8" (10 mm) monolithic tempered glass, these low profile door rails arrive ready-to-install with End Caps, installation instructions, and adjustment wrenches.

Key benefits & differentiators:

• Fastest installation among door rail systems—experienced installers can prepare a door in under ten minutes.
• Integral Wedge-Lock® design: a single rigid housing that resists shifting or losing adjustment over time.
• Adjustable Door Alignment System on both top and bottom rails allows ±1/8" (3 mm) in/out adjustment without removing the door.
• Durable glass securing pads engineered for longevity in extreme environments.
• Models available to accept 3/8" to 3/4" (10–19 mm) glass; internal components stay in place for quick installation.
• Built-in Jamb Alignment Block standard; arms and pivots sold separately to meet job requirements.

How to adjust: remove the End Cap to access three socket head cap bolts—the center bolt secures the slide; the two outer bolts adjust the slide ±1/8" (3 mm). The low-profile slide lets pivots be positioned off the American Standard setback (2-3/4" / 69.8 mm) for vertically out-of-square openings.

Finishes & ordering: Available in several standard architectural finishes; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail. End Caps and standard Kwik-Adjust™ Pivot Alignment System are included. Closer arms, floor/overhead pivots, keyed cylinders, thumbturns and pivot inserts (1NT701, 1NT703, 1NT704) are sold separately.
