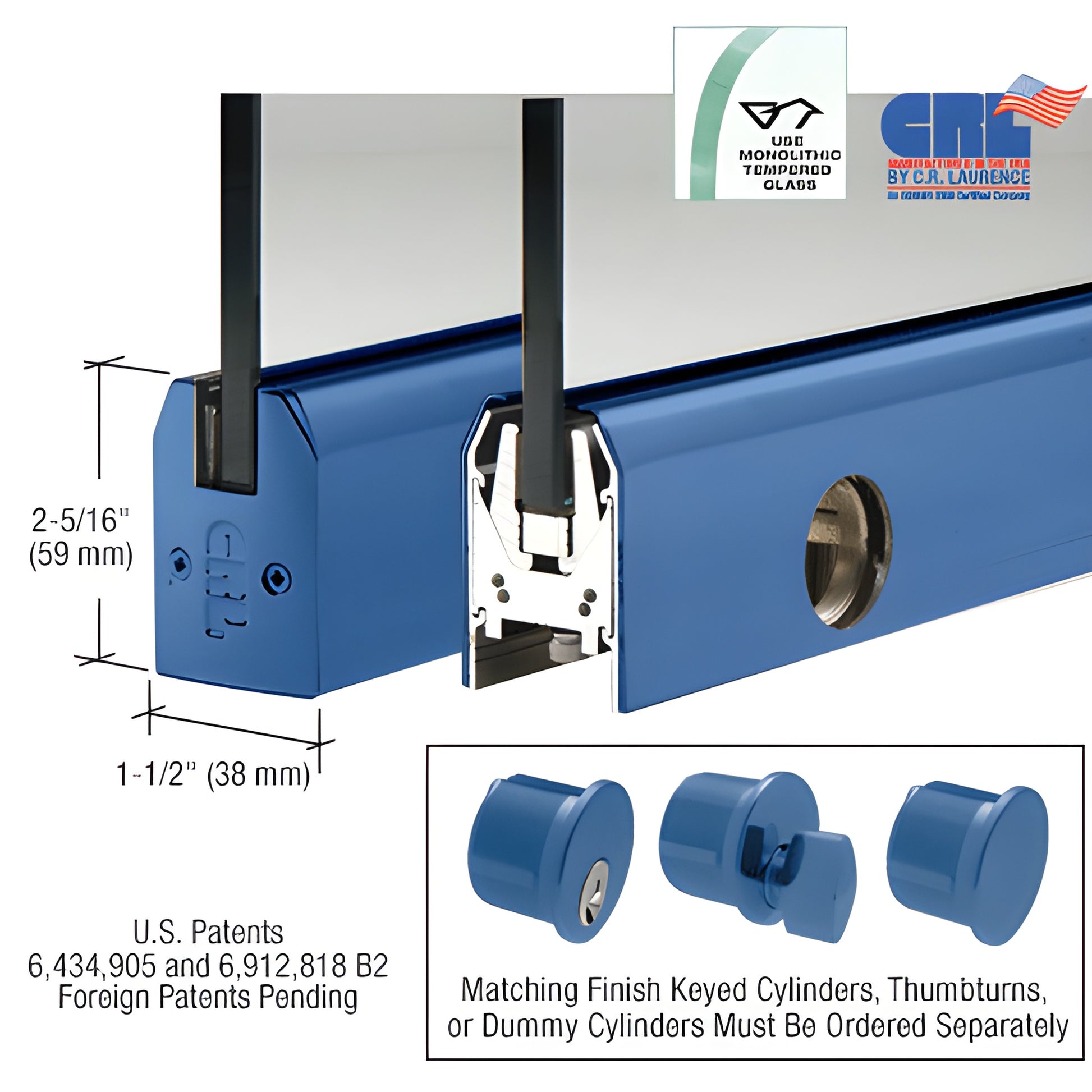

CRL 3/8" Low-Profile Tapered Glass Door Rail w/ Lock - Custom Length

• Custom length for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system for fast, secure installation
• Low profile rail: 2-5/16" (59 mm) tall × 1-1/2" (38 mm) wide
• Available in multiple stock architectural finishes; custom finishes available
• Available with or without locks; matching sidelite rails available

CRL Low Profile Door Rail (SKU: DR2TPT38CL) delivers a compact 2-5/16" (59 mm) height with a patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Ships ready-to-install with end caps, installation instructions, and adjustment wrenches. Ideal long-tail search query match: low profile glass door rail for 3/8 inch tempered glass, low profile door rail with Wedge-Lock.

Fast installation & adjustable alignment: Wedge-Lock® provides the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated; after installation attach the door arm or pivot (not included) to the preassembled adjustable alignment slide. The adjustable system allows ±1/8" (3 mm) alignment toward or away from the jamb on both top and bottom rails without removing the door.

Durable single-piece housing: Rigid single-component rail housing resists shifting and long-term misalignment. Internal components remain installed during mounting, and glass securing pads are designed for longevity in extreme environments. Models accept 3/8" to 3/4" (10 to 19 mm) glass.

Serviceability: To adjust after installation, remove the end cap to access three socket head cap bolts—center bolt locks the slide; outer bolts adjust ±1/8" (3 mm). The low-profile slide lets pivots with slotted grooves be placed off the American Standard setback (2-3/4" / 69.8 mm) to accommodate vertically out-of-square openings.

Notes & ordering: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, and thumbturns are ordered separately. Models with locks include the lock mechanism; matching finish keyed cylinders or thumbturns must be ordered separately. Pivot inserts 1NT701, 1NT703, and 1NT704, and other low profile pivot inserts, are sold separately. Rail specifications, templates, and hardware packages available from CRL Technical Sales via e-mail.

Included: End caps, installation instructions, and adjustment wrenches. For custom finishes or custom widths, request a quote.
