Shipping weights are approximate. If exact weight is required to calculate shipping costs, contact CRL Customer Service before submitting your order. Product images are representative; actual colors may vary with monitor settings.
CRL

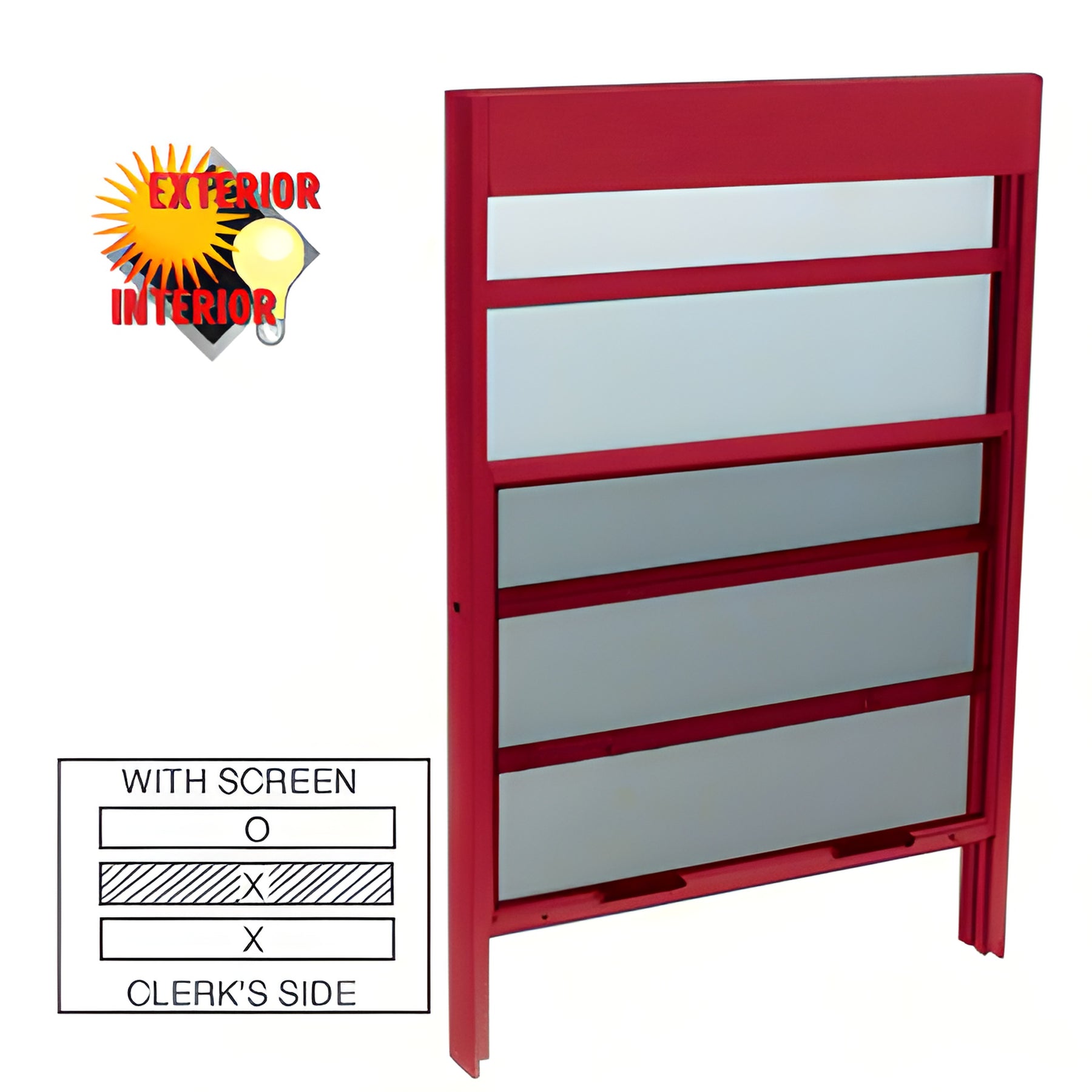

CRL Custom KYNAR® Sliding Service Window - 1/4" Glass, Screen
CRL Custom KYNAR® Sliding Service Window - 1/4" Glass, Screen
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SWB1214K
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Kynar Painted
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Tempered (Specify)
Handing
Specify
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
Yes
Usage
Interior,Exterior
Window Style
Vertical Sliding
Overview
- For light-duty applications (50 or fewer uses per day)
- For windows exceeding 1050 square inches (width × height)
- Available pre-glazed or non-glazed
- Each unit customized to your needs — specify left or right hand fixed from clerk’s side
This CRL "SW" Series Sliding Service Window (SKU: SWB1214K) is designed for interior or exterior use and is ideal as a walk-up food service window, receptionist pass-through, or pharmacy service window. Vertical format units use nylon runners over coiled tension springs for smooth operation; horizontal formats operate on top nylon guides. For larger openings we recommend a full bottom track with rollers for added durability.
All vertical format service windows that exceed 1050 square inches (width × height) require concealed sash balances located behind the 4-5/8" (117 mm) tall header. For exterior installations an overhang is recommended.
NOTE: Specify handling when ordering (left or right hand fixed from clerk’s side). Surround frame is not available for insulating glass models. If ordered with a keyed lock, the screen panel will be installed in the center channel.
SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, Duranodic bronze, RAL powder paint, or KYNAR® paint. Painted units ship glazed only.
Glazing: 1/4" (6 mm) glass
Installation instructions included.
Product Warning:
All larger vertical format service windows which exceed 1050 square inches (width × height) require sash balances.
Order your CRL SW Series sliding service window (SKU: SWB1214K) today — contact CRL to customize finish, glazing, and handing options.
