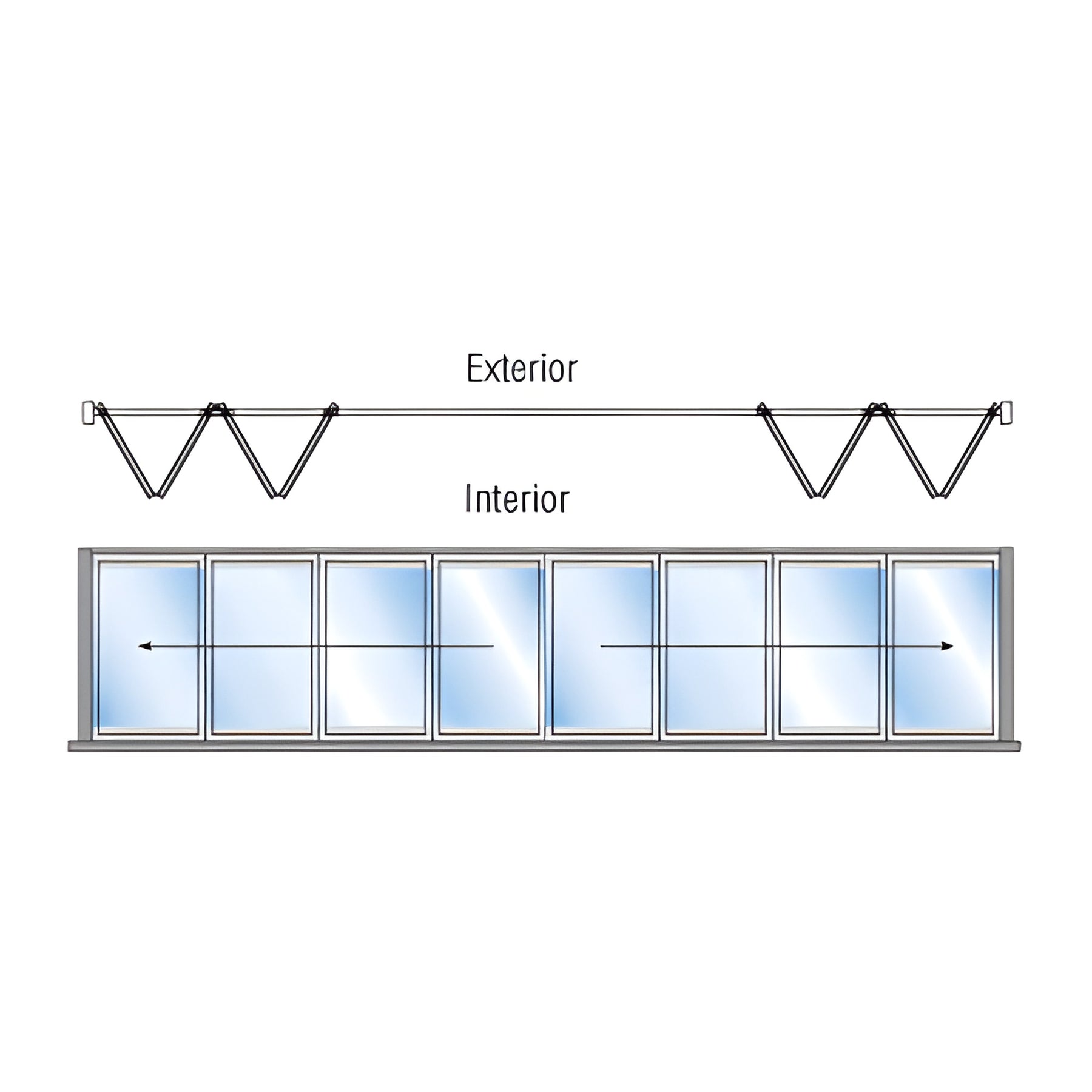

CRL Custom KYNAR® Paint S55R Monterey 4+4 Bi-Fold Bi-Part Interior Swing with Flush Sill
Buy More, Save More!
| Product quantity | Discount |
|---|---|
| Buy 3 | 2% off |
| Buy 5 | 4% off |
| Buy 10 | 6% off |
| Buy 15 | 8% off |
| Buy 20 | 10% off |
Overview
| SKU | M6B44F1KY |
|---|---|
| Pack Size | 1 |
| 2 Point Lever Latch | Yes |
| Configuration | 4+4 Biparting |
| Door Type | Framed Bi-Folding Doors |
| Finish/Color: | Kynar Painted |
| Flush Sill | Yes |
| Frame Depth | 2-5/16 in. (59 mm) |
| Glazing Thickness | 3/4 in. (19 mm) |
| Glazing Type | Tempered Insulated,Tempered Monolithic,Tempered Laminated |
| Maximum Height Interior Application | 120 in. (3048 mm) |
| Maximum Panel Weight | 100 lbs. (45.4 kg) |
| Minimum Overall Opening Width | 149 in. (3785 mm) |
| Panel Stile Width | 2-3/8 in. (60 mm) |
| Panel Thickness | 2-1/8 in. (54 mm) |
| Series | S55 |
| Swing | Inswing |
Description
Product Details
- Weather Resistant, Designed for Interior/Exterior Use
- Thermally Broken Option Available
- New Construction or Retrofit, Commercial and Residential
- Fully Assembled, Ready for Glazing
- Easy to Operate Panels Open and Close Effortlessly
- White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available
The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
Specifications
Technical Resources
Brochures & Literature
Installation Instructions
BIM Objects - rvt
BIM Objects - pdf
Quote Request Forms
Specifications
Engineering & Test Reports
