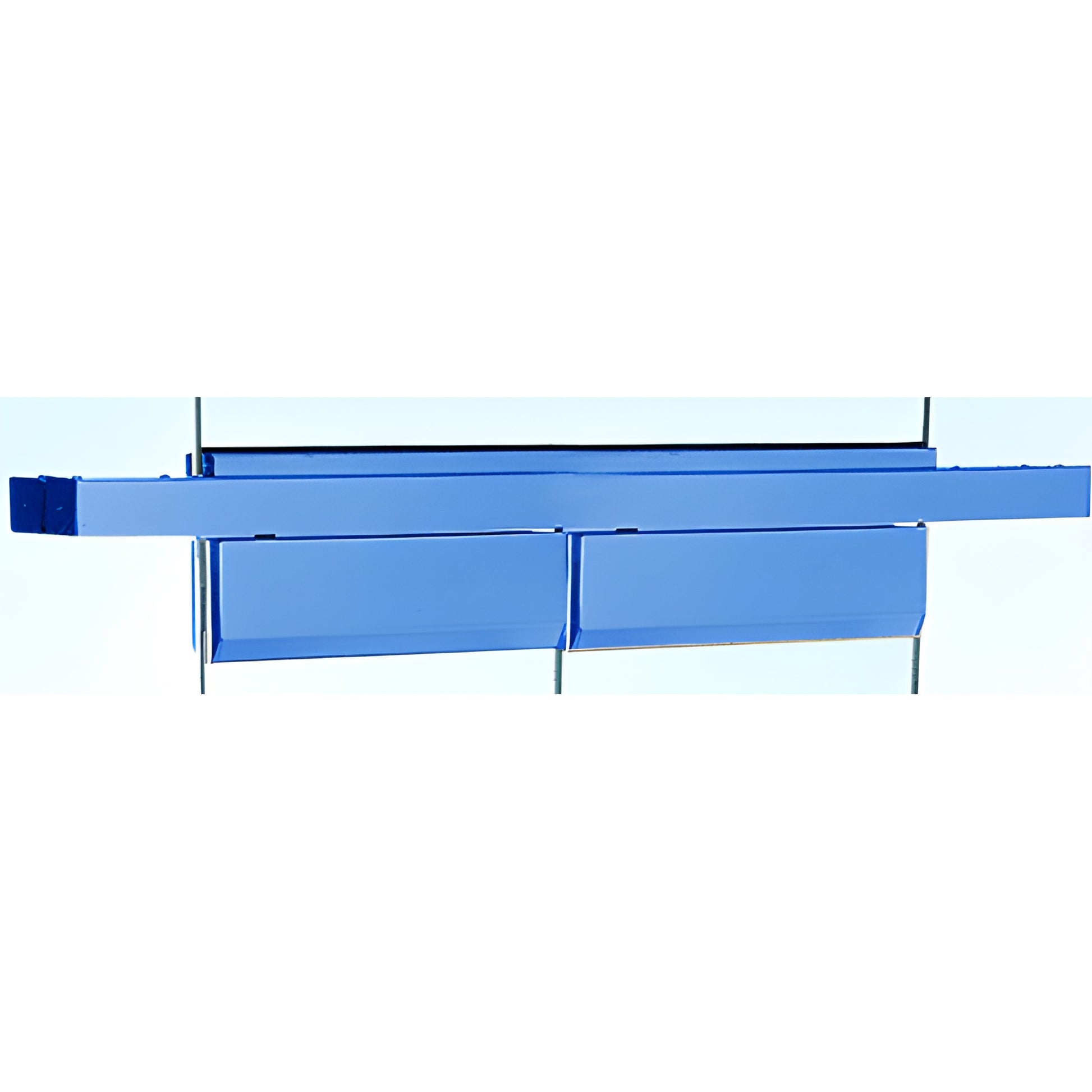

CRL Custom-Painted Double Header for Concealed Closers — Custom Length

• Ideal for installations where cutting into the floor for a floor closer is not an option
• Designed for 1/2" (12 mm) glass-to-glass or glass-to-wall installations with or without overhead concealed door closers
• Use with or without an overhead concealed closer
• Six standard finishes: Satin Anodized, Black Bronze Anodized, Black Kynar®, Polished Stainless, Brushed Stainless, Polished Brass
• Custom finishes available on special order
• RED‑E to ship from CRL inventory

CRL Floating Headers for Overhead Concealed Door Closers were engineered to mount single or double doors off glass sidelites with a transom above. Stock floating headers are fabricated for 1/2" (12 mm) glass-to-glass installations, prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom. Custom floating headers cover additional configurations: custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers. Headers measure 4" x 1-3/4" (102 x 44.5 mm). SKU: FH4PTCD.

Quick Pick policy: These products are stocked centrally and shipped on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order can typically be filled within a few days. Click the box above marked "CHECK STOCK AVAILABILITY" to view current inventory.

Product Warning:

STRUCTURAL DISCLAIMER - Customers using this product are responsible for consulting a structural engineer to confirm suitability for the intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.

If the weight of the transom above the header exceeds 100 lbs. (45.4 kg), the transom must be supported from the ceiling to relieve the header and prevent bowing. Consider Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

Key differentiators: purpose-built floating header for overhead concealed door closers, stock and custom configurations for 1/2" (12 mm)
