CRL OXXO Format Custom Painted Glass Sliding System - 4" Square Rail
CRL OXXO Format Custom Painted Glass Sliding System - 4" Square Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR4FPT
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXXO
Finish/Color
Powder Coated
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails (Top and Bottom) features the proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4S Series rails are custom fabricated to your specifications for door and fixed panels and are available in seven architectural finishes to match commercial and residential interiors.
- Maximum door width: 48" (1.22 m)
- Maximum door height: 108" (2.74 m)
- Maximum door weight: 234 lbs. (106 kg)
- Optional bottom-rail locks; doors can be ordered with or without locks
SKU: 4SDR4FPT. For custom sizes, finishes, or pricing, contact CRL Customer Service or order online today.
Specifications

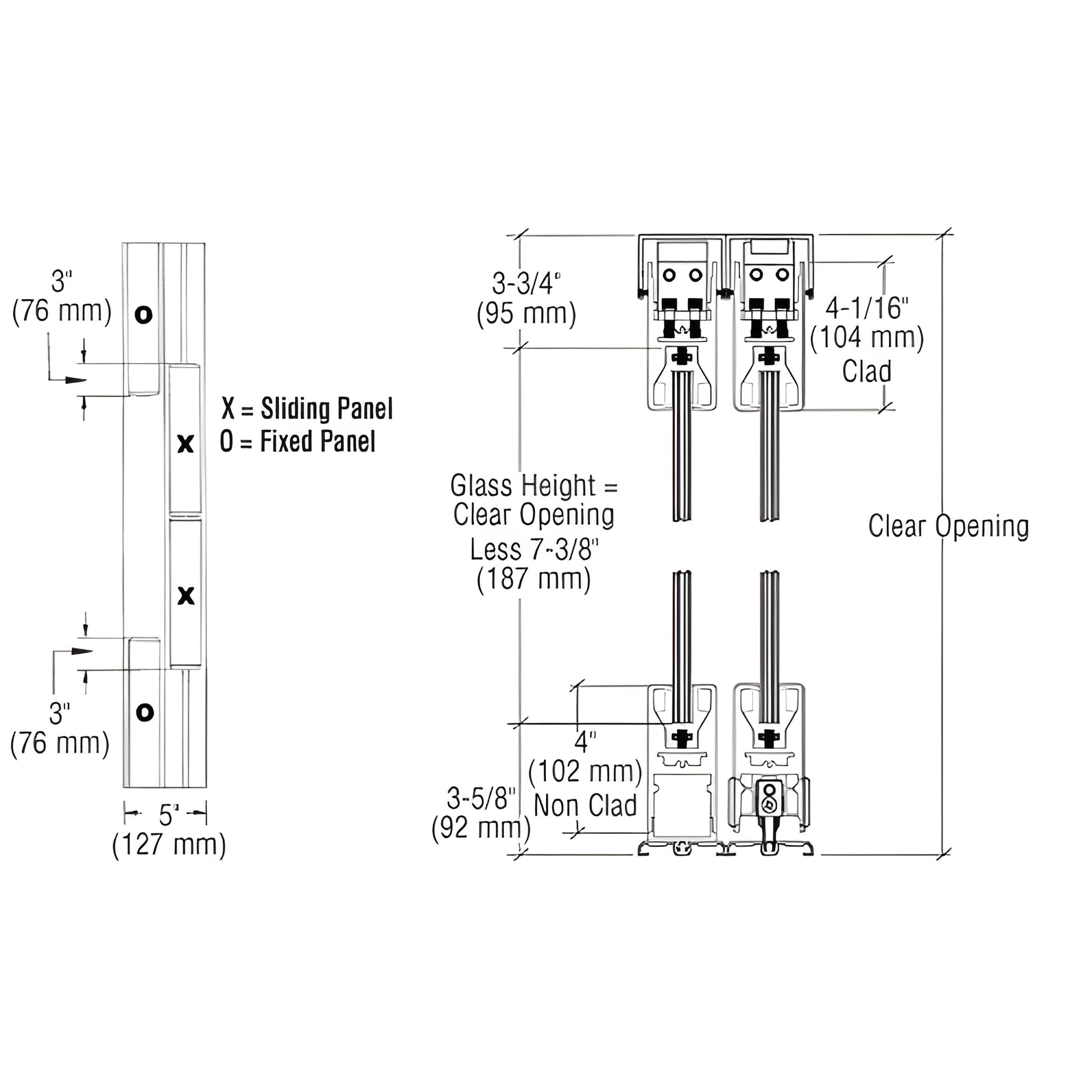

CAD Drawings - pdf
