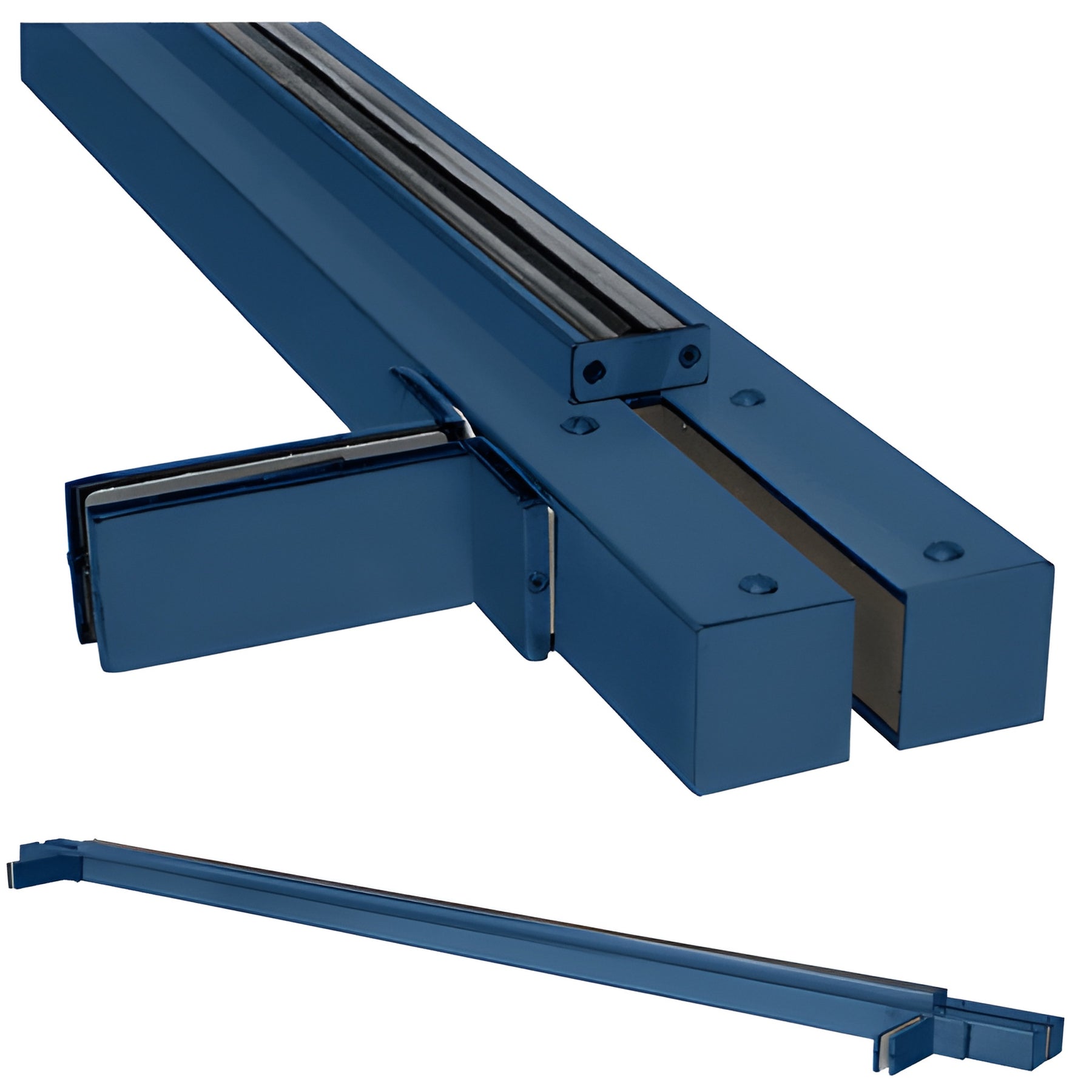

CRL Custom Painted Single Door Header - Custom Size, Fin Brackets

• Adds rigidity and stabilizes all-glass entrances against wind, stack load and impacts
• Special order only — custom lengths and configurations available (SKU: FH4FPTCS)
• Fits glass-to-glass or glass-to-wall installations, with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available on request
• Each floating header is customized to your project and can be prepped for locks, pivots or closers

CRL Floating Headers With Fin Brackets were developed to add rigidity to all-glass entrances and reduce deflection from wind, stack load pressure, and impacts. Suitable for single or double door installations, these floating headers accommodate glass-to-wall and glass-to-glass configurations and can be prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots or overhead concealed door closers. Header profile measures 4" x 1-3/4" (102 x 44.5 mm). For specification help or project quotes, contact CRL Technical Sales Department.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety factors, and proper fixing materials and procedures.

If the transom weight above the header exceeds 100 lbs. (45.4 kg), support from the ceiling is required to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings where applicable. Contact our Technical Sales Department for assistance.



Ready to specify FH4FPTCS for your all-glass entrance? Contact CRL Technical Sales for a custom quote.
