CRL Painted U-Channel Top-Load Glazing Gasket 3/8 & 1/2in, Custom
CRL Painted U-Channel Top-Load Glazing Gasket 3/8 & 1/2in, Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2PTCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Powder Coated
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
1-7/8 in. (48 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert
- Offered in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when used with the narrow header

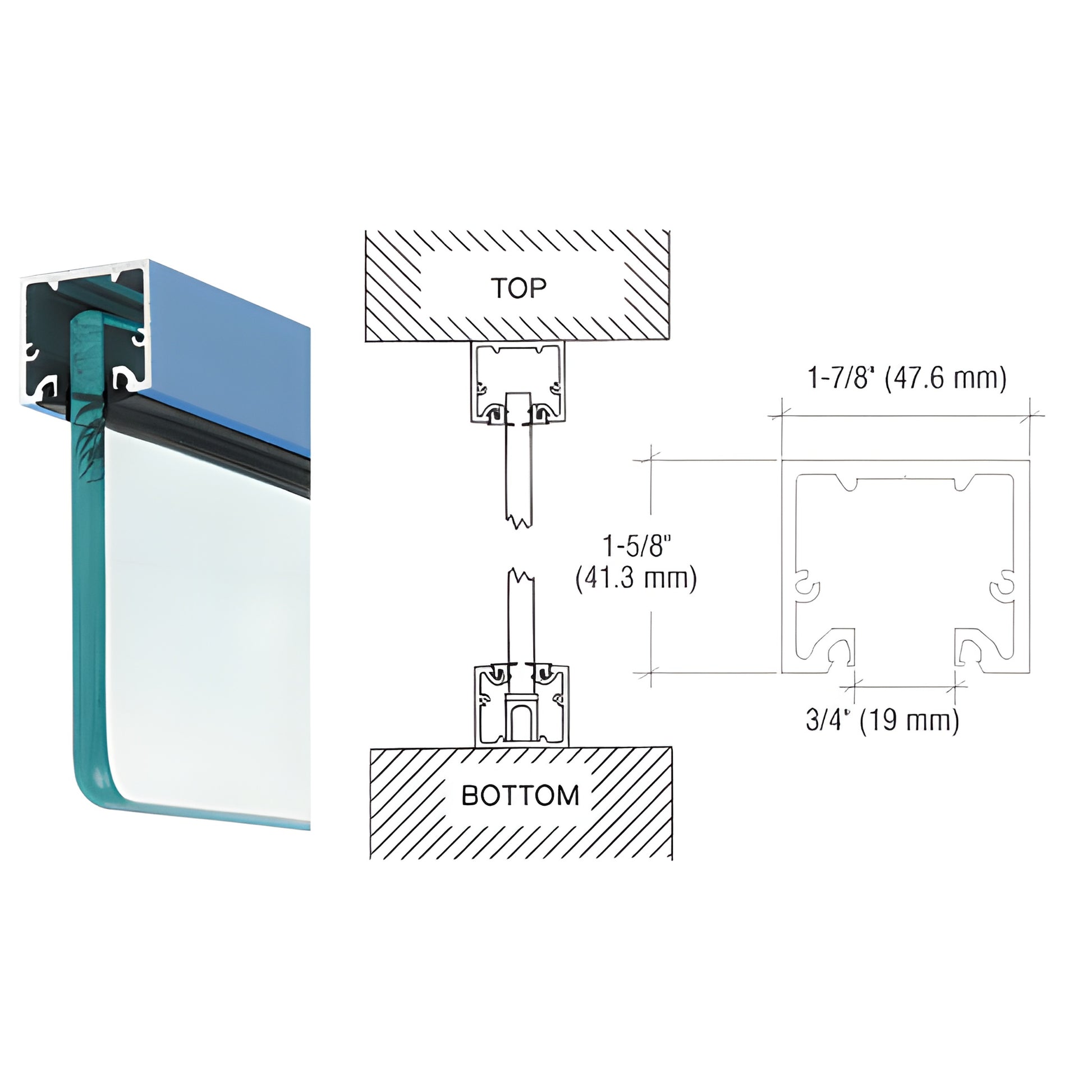

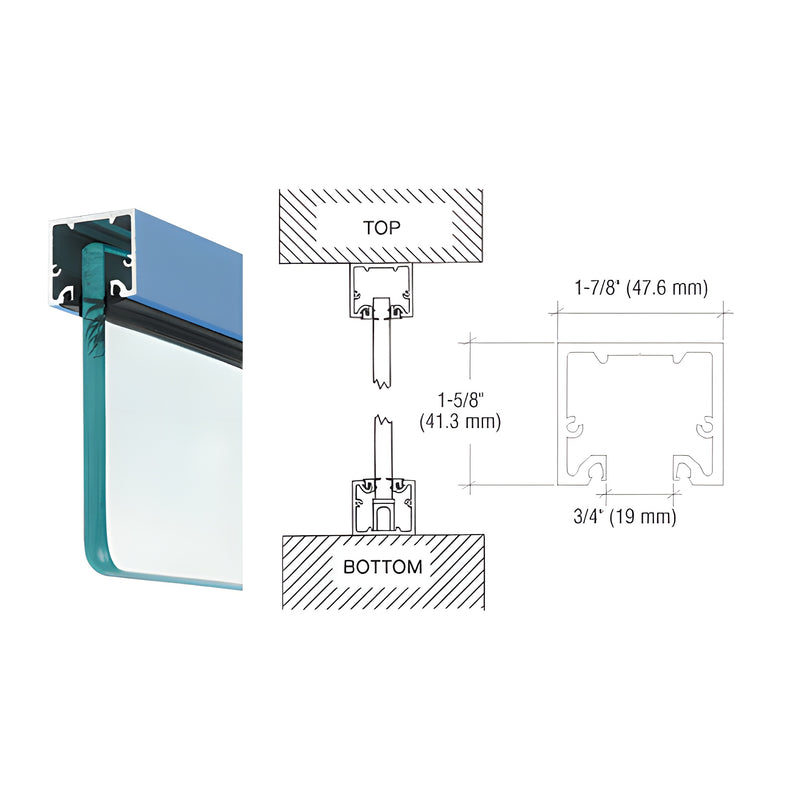

CRL Wide U-Channel and Narrow Header (SKU: NH2PTCL) — a versatile aluminum channel and header system designed for storefront and interior glass door assemblies. Use as a U-channel aligned to CRL Sidelite and Door Rails, as a narrow header that accepts a top free-swinging pivot, or as an Even Sight Line System by fastening the sidelite rail to the fabricated narrow header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed during manufacturing to eliminate field fabrication and save installation time. For technical assistance, contact CRL Technical Sales Department.
Choose NH2PTCL for a ready-to-install narrow header and U-channel solution that reduces field work and ensures an even sight line. Contact CRL to order or request a quote.
Specifications
CAD Drawings - dwg
