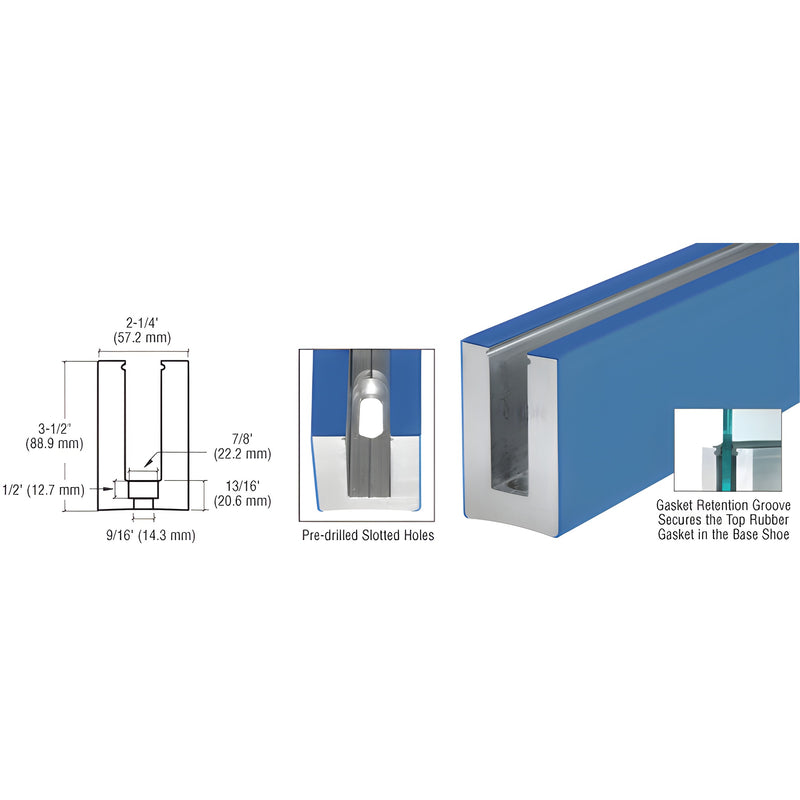

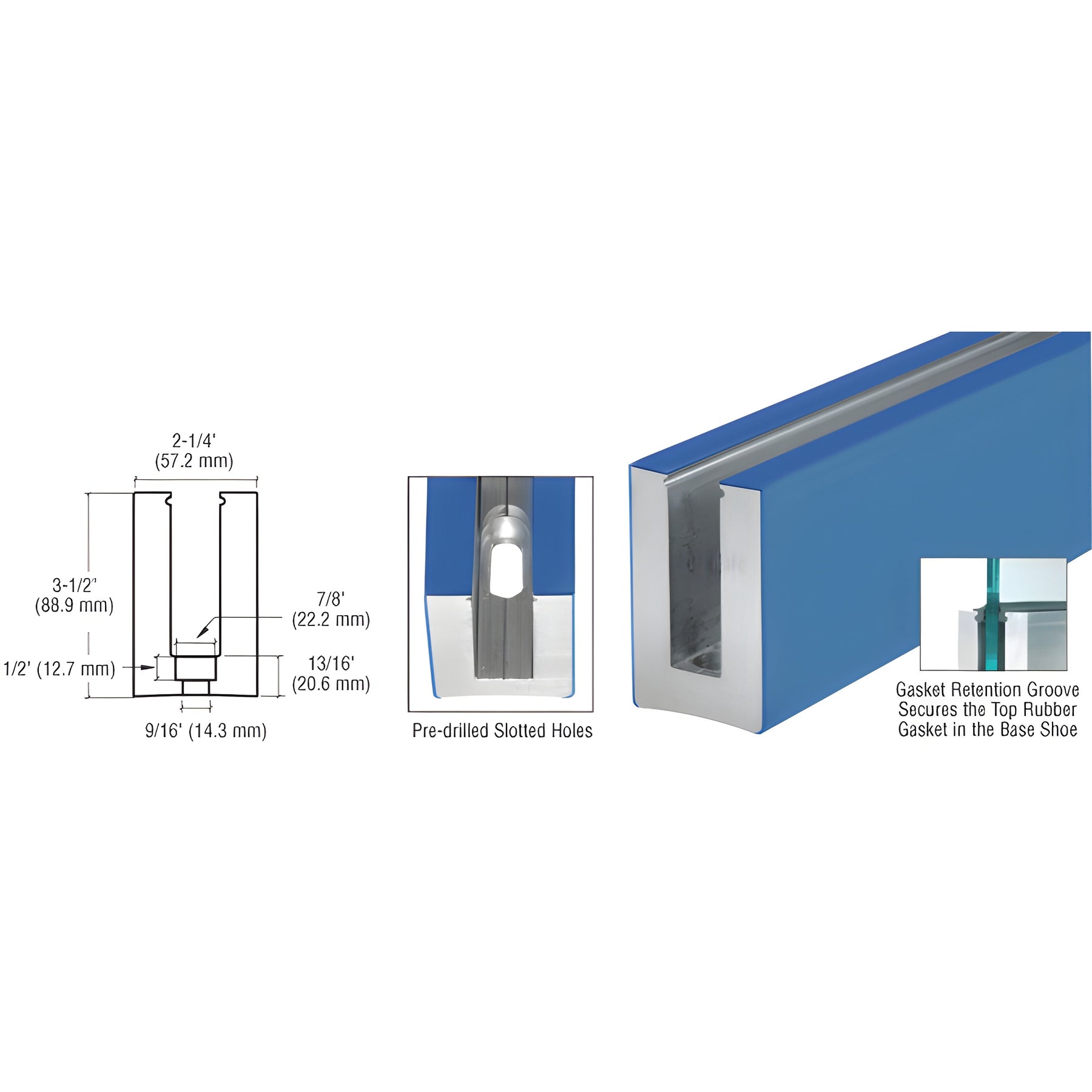

** CRL Custom Powder Coated EGR Elevated Glass Railing Base Shoe for 1/2" Glass

• Ideal for balconies that require clearance under the bottom rail for drainage
• 6063 aluminum alloy, T5 temper
• 10' (3.05 m) elevated base shoe — SKU: EGRB10DP
• Custom drilling and fabrication available
• Seven standard powder coated finishes; custom colors also available (250+ quick-turn options and color matching)
• Pre-drilled, slotted holes 24" (610 mm) on center for easy installation

CRL's EGR Elevated Glass Railing Base Shoe is the heavy-duty base channel designed for elevated 1/2" (12 mm) tempered glass balusters installed using the Wet Glaze Method. The base shoe is intended to sit atop CRL EGR stanchions, providing required clearance for water and debris drainage—essential for high-rise, commercial, and balcony glass railing installations. Installation to the stanchions uses stainless steel socket head cap screw fasteners through pre-drilled, slotted holes at 24" (609.6 mm) on center after stanchions are set in the concrete substrate. For hole patterns less than 24" on center, contact our Railing Technical Sales Department for custom drilling options.

CRL offers this elevated glass railing base shoe in mill finish or powder coat with seven standard colors. For specialty projects we provide over 250 quick-turn custom color options with color matching and custom fabrication on special order. These long-tail benefits—custom hole patterns, powder coated elevated base shoe, and elevated glass railing channel for balcony drainage—make this product ideal for demanding architectural and commercial railing projects.

Product Warning:

NOTE: Cat. No. EGRW1 square washer must be used for attachment to steel stanchion assembly.


Contact CRL Technical Sales for quotes, custom fabrication, or expedited color matching.
