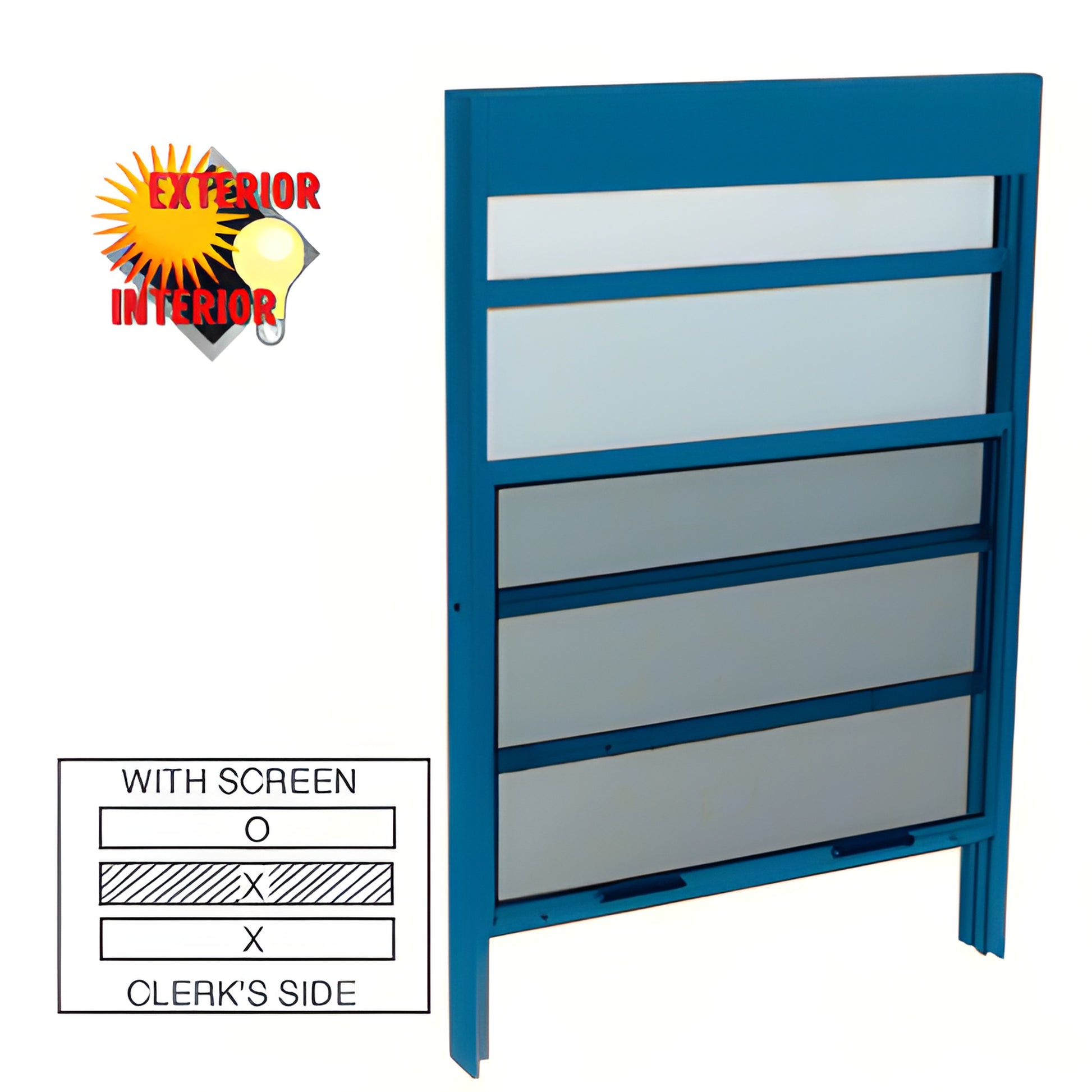

CRL Custom Powder-Coated Vertical Sliding Service Window, 1/4in Glass
CRL Custom Powder-Coated Vertical Sliding Service Window, 1/4in Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SWB1214P
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Powder Coated
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Tempered (Specify)
Handing
Specify
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
Yes
Usage
Interior,Exterior
Window Style
Vertical Sliding
Overview
- For light-duty applications of 50 or fewer uses per day
- For windows exceeding 1050 square inches (width × height)
- Available pre-glazed or non-glazed
- Each unit is customized to your needs
This CRL "SW" Series Sliding Service Window (SKU: SWB1214P) is designed for interior or exterior use and is ideal for walk-up food service windows, reception or pharmacy counters, and other customer-service openings. Choose vertical or horizontal formats with multiple options: vertical units use nylon runners over coiled tension springs for smooth operation; horizontal units run on top nylon guides. For large openings we recommend a full bottom track with rollers for added stability.
All vertical-format service windows that exceed 1050 square inches (width × height) require sash balances, concealed behind a 4-5/8" (117 mm) tall header. For exterior installations an overhang is recommended.
Note: Specify handling when ordering (left or right hand fixed from clerk’s side). Surround frame is not available for insulating glass models. If ordered with keyed lock, the screen panel is installed in the center channel.
Specifications
- Materials: Extruded aluminum; tempered safety glass on select models; fiberglass screen on select models
- Glazing: 1/4" (6 mm) glass
- Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or KYNAR® painted. Painted units ship glazed only.
- Installation: Installation instructions included
Product Warning: Larger vertical-format service windows exceeding 1050 square inches (width × height) require sash balances.
Customize your CRL SW Series sliding service window (SKU SWB1214P) for secure, smooth operation—contact us to get a quote or place an order.
