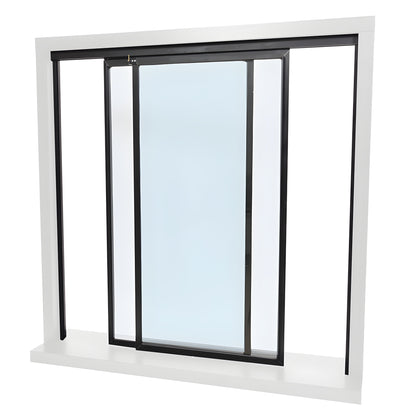

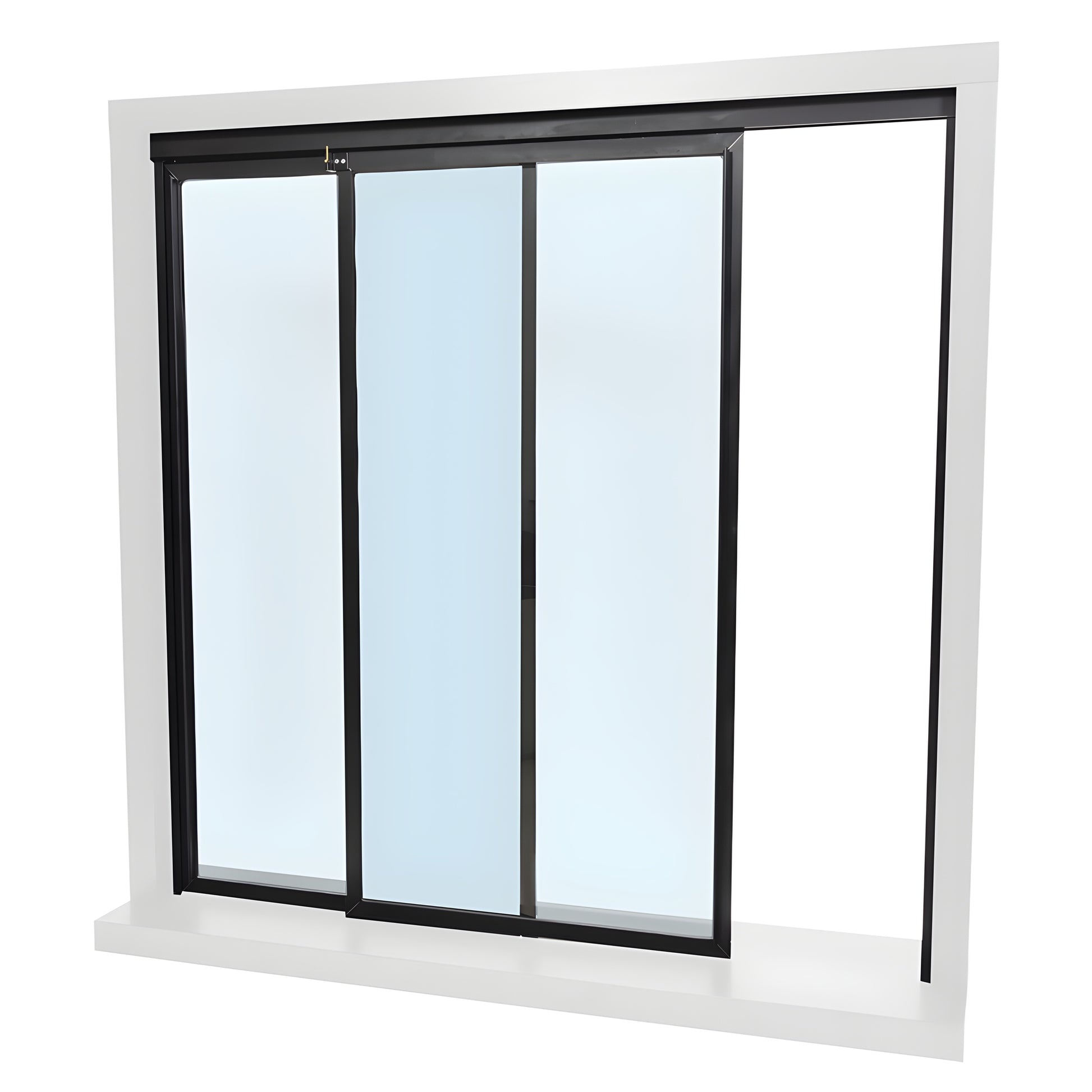

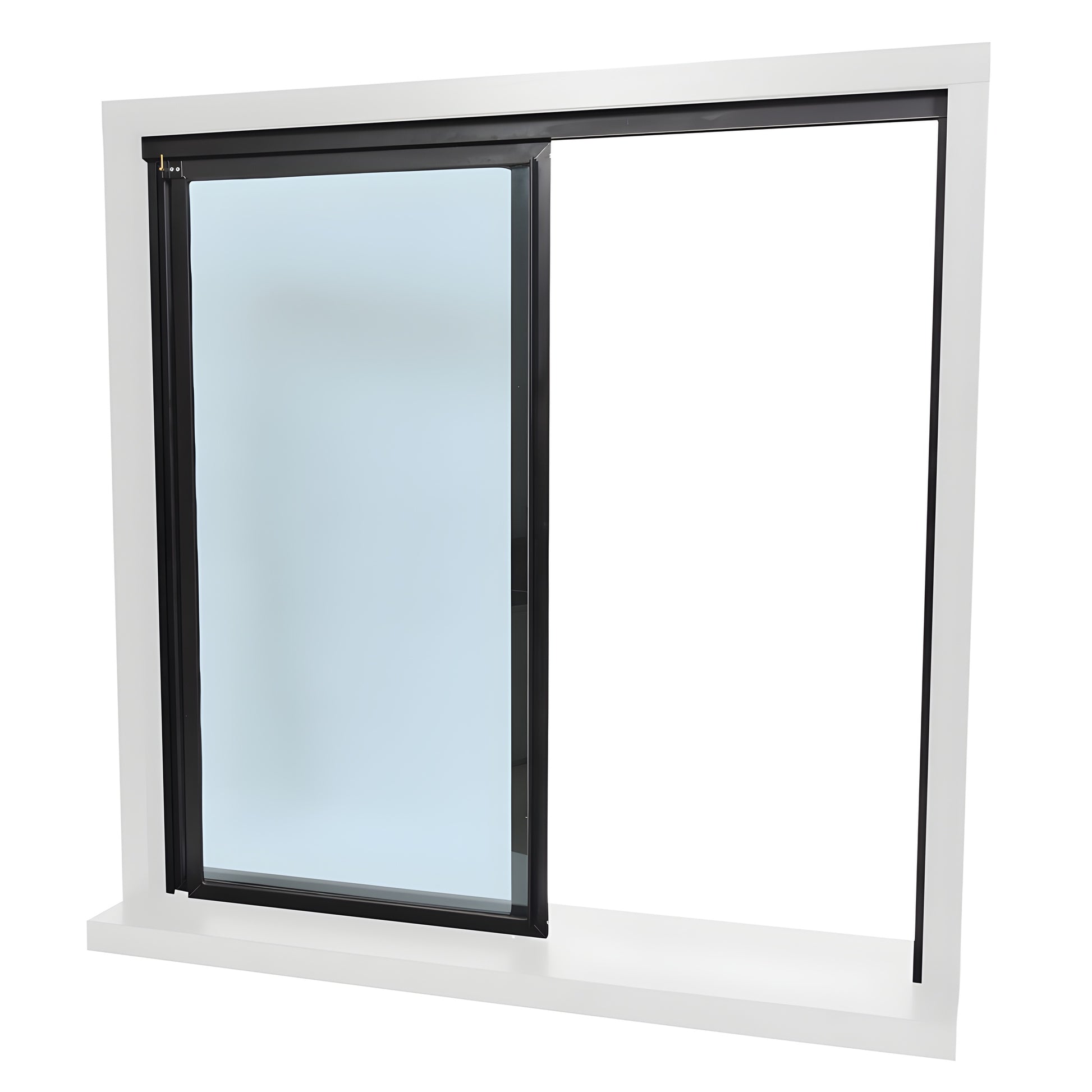

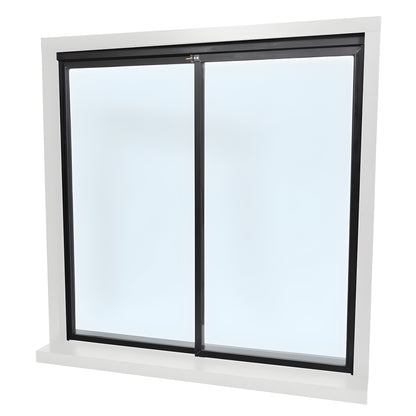

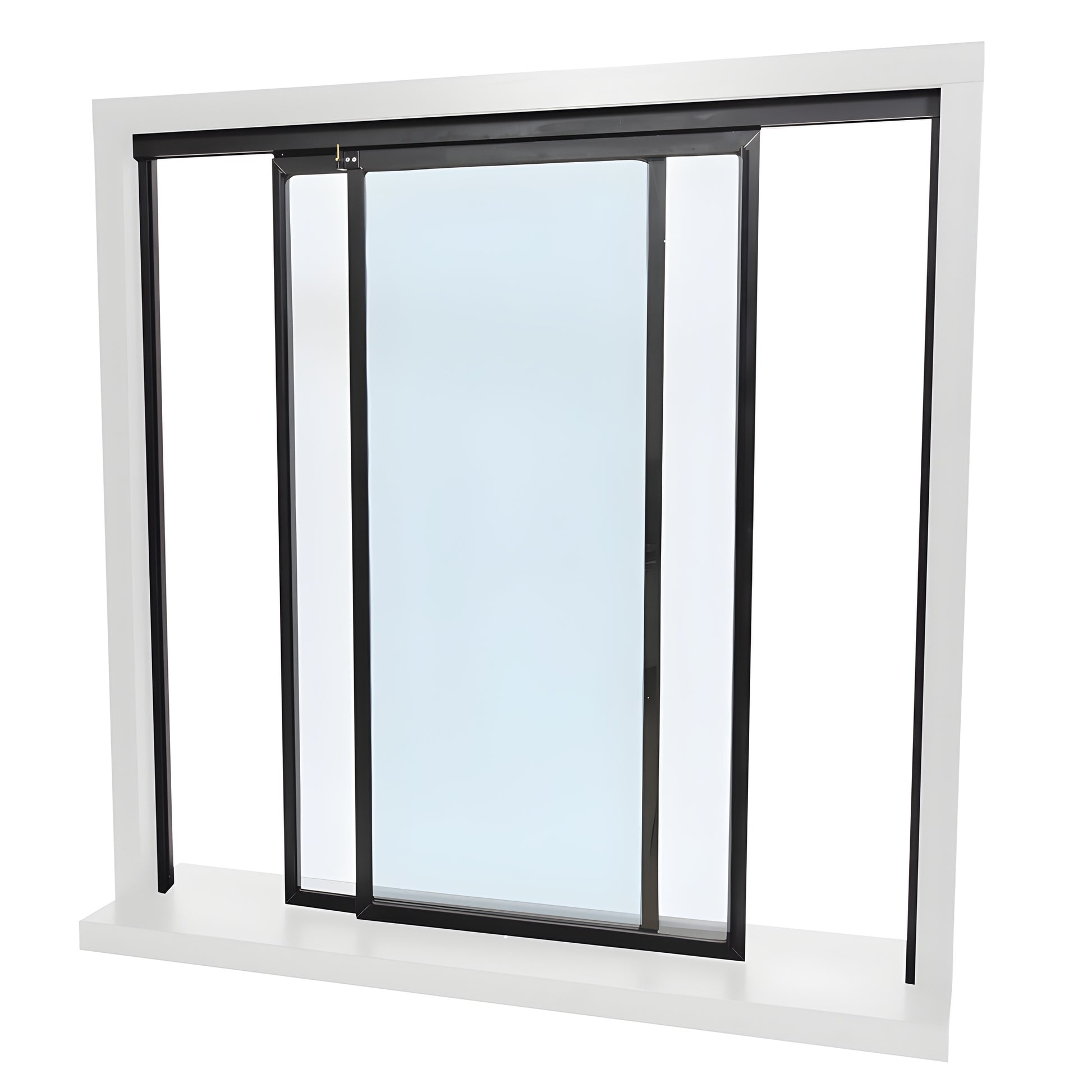

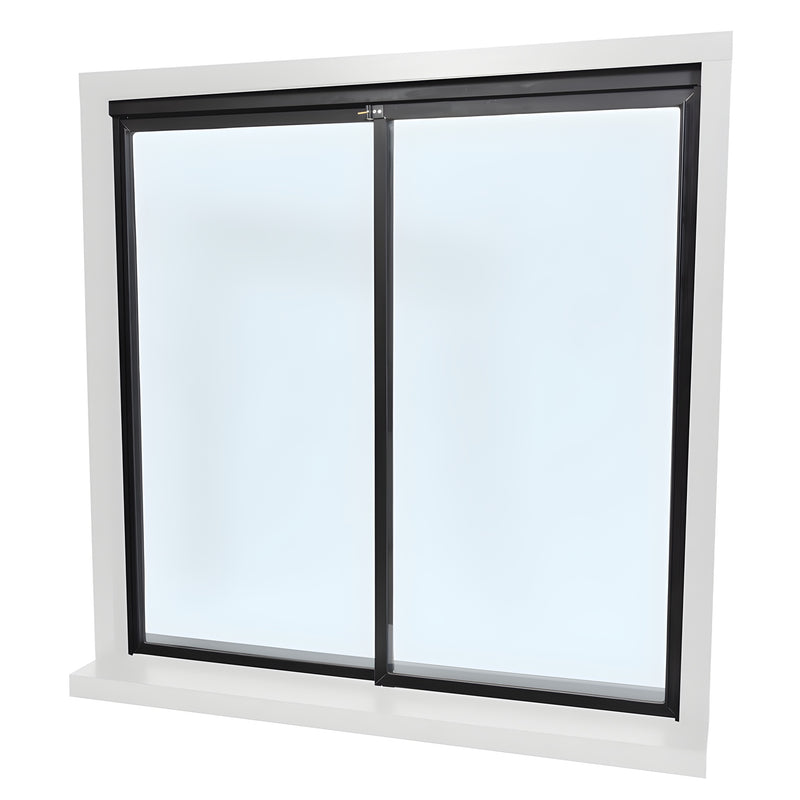

CRL Daisy Duranodic Bronze Factory Glazed with 1/4" Tempered Glass Pass-Thru Assembly 36" Width 48" Height

Finish / Colour (2)

Quote volume pricing

Save up to 10% on your quote

Applied to final quote

Overview
SKUD1041DUXX3648
Sold as1 Each
Shipping LimitationsShipping Quote Required
ConfigurationXX
Finish/Color:Duranodic Bronze
Glazing Type1/4" Clear Tempered Glass
ModelDaisy
Panel DesignationXX Type X = Sliding
Panel Quantity2
Width36 in. (914.4 mm)

Description

Product Details

  • Assembled and ready to install
  • Satin Anodized or Duranodic Bronze Finish
  • Two Sliding Glass Panels

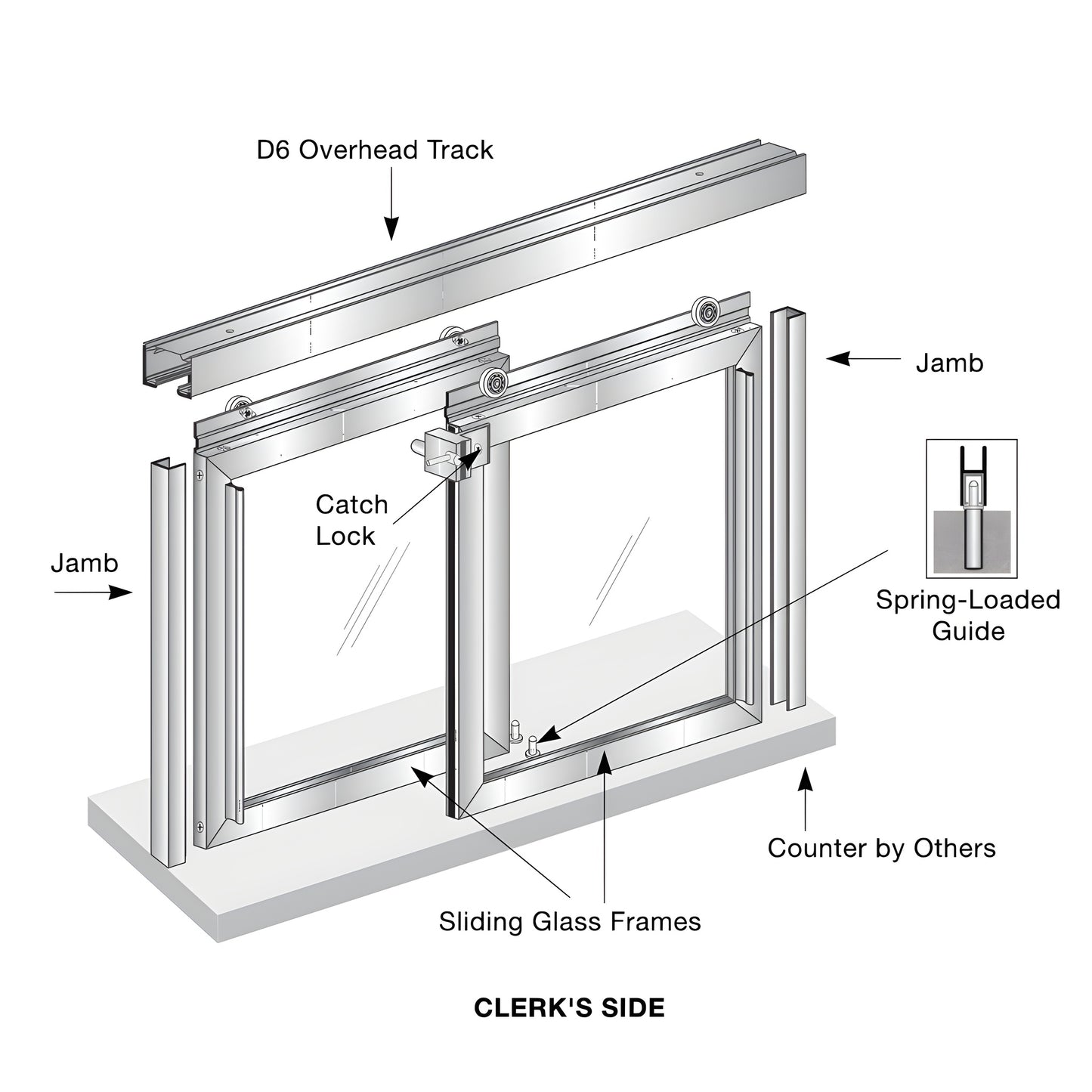

  • View: Clerk Side View
  • Counter and Sub-Frame not included

This kit includes 1/4" clear tempered glass. The net frame size is 36"w x 48"h designed for an opening approximately 36-1/8"w x 48-1/8"h. The kit ships with glass lites assembled assembly of the overall frame required during installation. XX Models, (TWO) X= sliding panels, clerk side view.

Note: Panels Come Fully Glazed. Some Assembly Required.

Specifications

Technical Resources

Installation Instructions

PDF
Daisy Model Pass-Thru Models D1040 D1041 D1042 D1043 Installation InstructionsOpen PDF ↗

Specifications

DOC
Aluminum Interior Sliding Service Window 3-Part SpecOpen DOC ↗

CAD Drawings - pdf

PDF
Daisy D1041 CAD Drawings.pdfOpen PDF ↗

Warranty

PDF
Transaction Hardware Products Limited WarrantyOpen PDF ↗
