Product Details
- Custom Sized, Ships Knocked-Down
- Satin Anodized or Duranodic Bronze Anodized Finish
- Two Sliding Glass Panels
- Two Overhead Track Options
- Order with or without Jambs

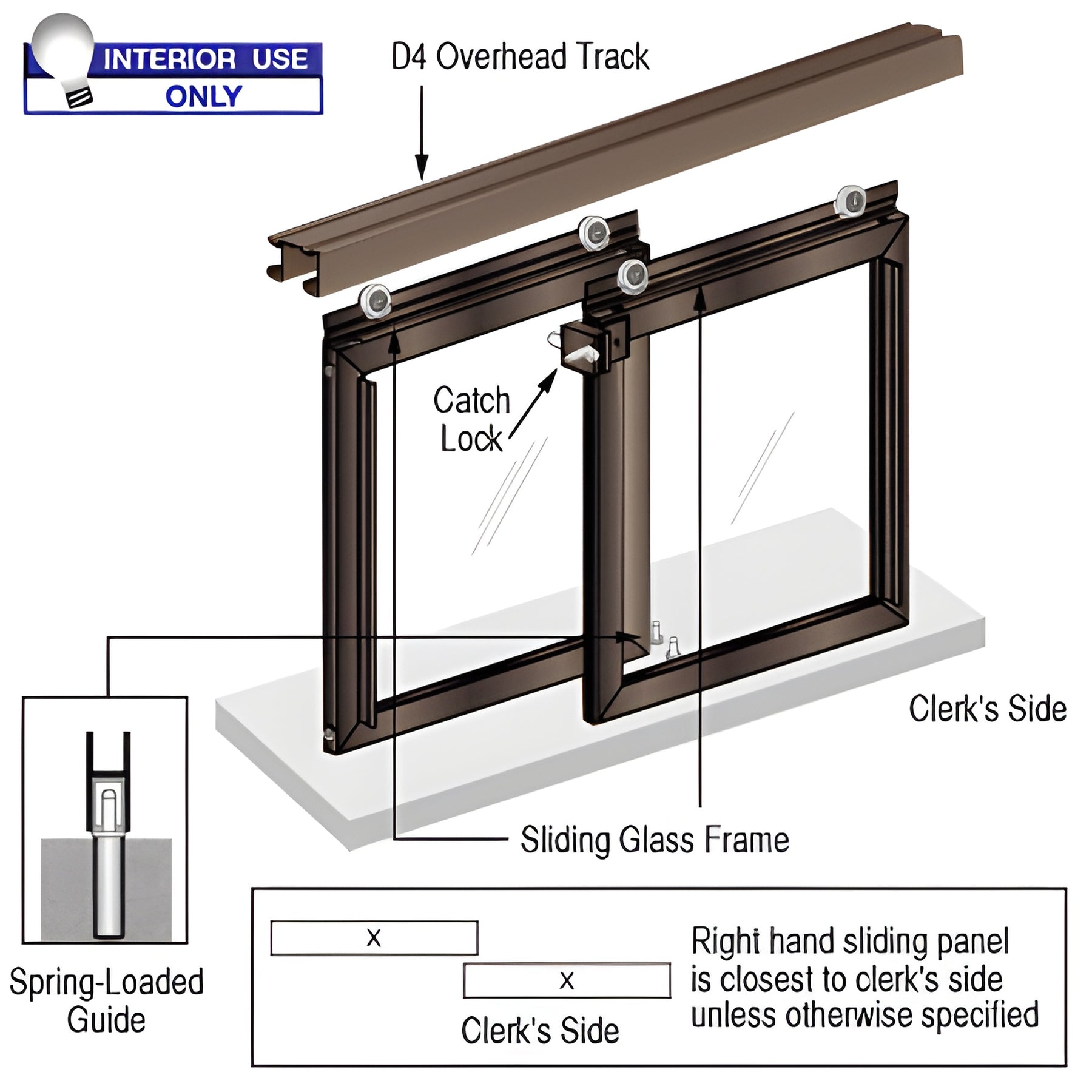

The CRL Daisy Pass-Thru Window is the most popular window of its type. Two equal panels (both sliding) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.
Different models are available with two types of headers: The standard D6 Overhead Track for transaction applications, or the back-loading D4 Overhead Track for display cases. Different models are also available with or without jambs. Screens are not available.
Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.
NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.
Weight: Varies per custom size
Case Qty: Minimum order one each
Product Warning:
Maximum frame size 72" (1829mm) W x 50" (1270mm) H
