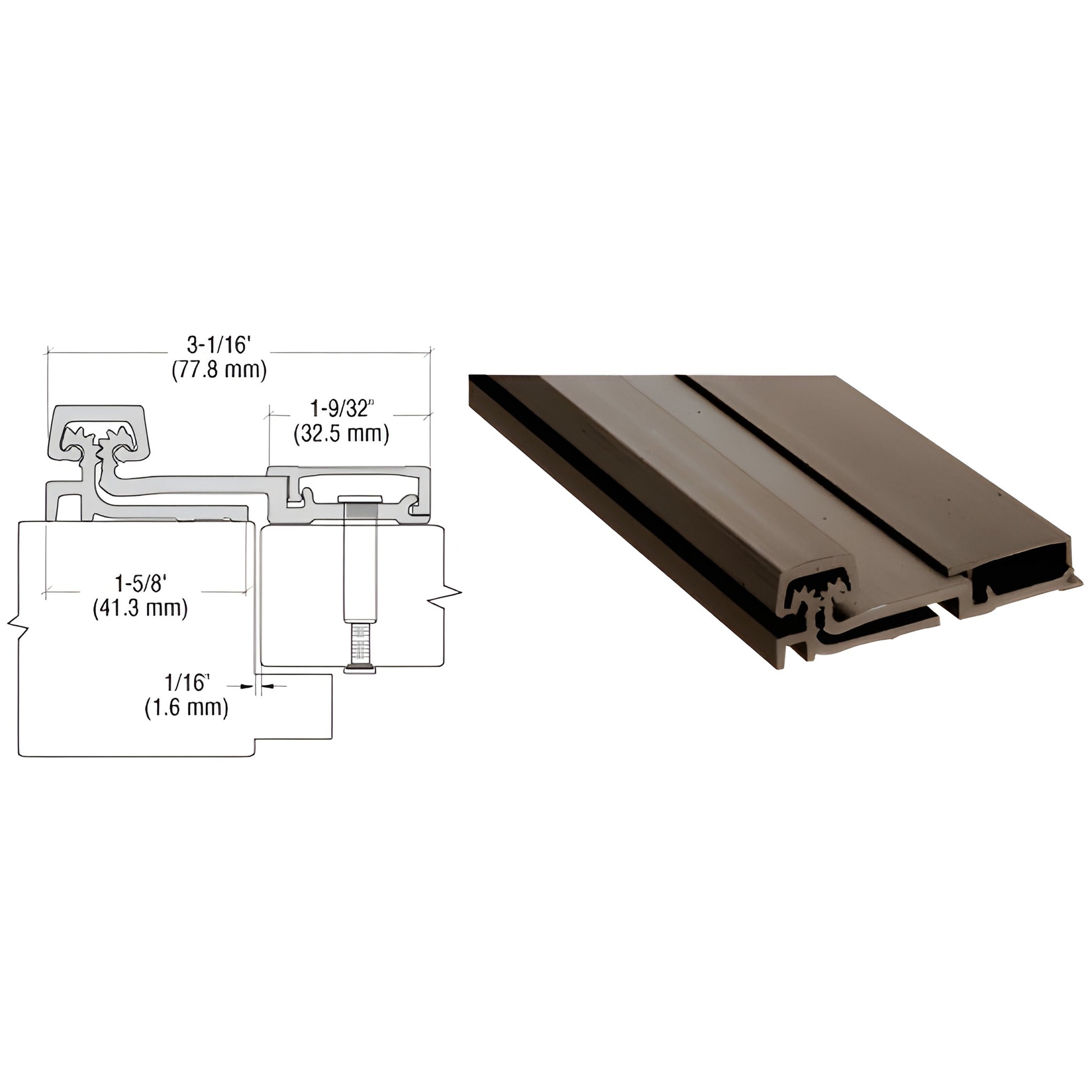

• CRL continuous full-surface door hinge 83in, dark bronze anodized, cross-section drawing and product photo, SKU 10083DU
1 1

CRL

CRL 100 Series Dark Bronze Standard-Duty Continuous Door Hinge

CRL 100 Series Dark Bronze Standard-Duty Continuous Door Hinge

$333.33 CAD
$333.33 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 10083DU
Shipping Weight: 10.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Dark Bronze
Includes
Pack of Screws
Length
83 in. (2108.2 mm)
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
RSC100DU
Series
100
Width
3-1/16 in. (77.8 mm)

Overview

  • Standard-duty full surface continuous hinge for doors weighing up to 200 lbs. (90 kg)
  • Heavy-duty full surface continuous hinge for doors weighing up to 600 lbs. (272 kg)
  • Finishes: Satin anodized and dark bronze anodized

These CRL Full Surface Continuous Hinges (SKU: 10083DU) feature load-bearing blocks spaced every 5-1/8" (130 mm) on the standard-duty hinge and every 2-9/16" (65 mm) on the heavy-duty hinge for consistent load distribution and smooth operation. Stocked in 83" (2.1 m) lengths, each hinge includes a pack of installation screws; replacement screw packs are available separately. Ideal for commercial and residential glass, wood, or metal doors that require continuous hinge support and long-lasting durability.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor's settings.


Order SKU 10083DU today to upgrade door performance—contact us for availability and lead times.
