Product Details
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
- Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
- Standard Height 84" (2.13 m) - Extension Available
- Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry MATERIALS: Base and Push-Pad: Extruded Aluminum Mechanical Components: Stainless and Hardened, Plated Steel Latch and Strikes: Sintered Steel Metal End Caps Product Warning: If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.

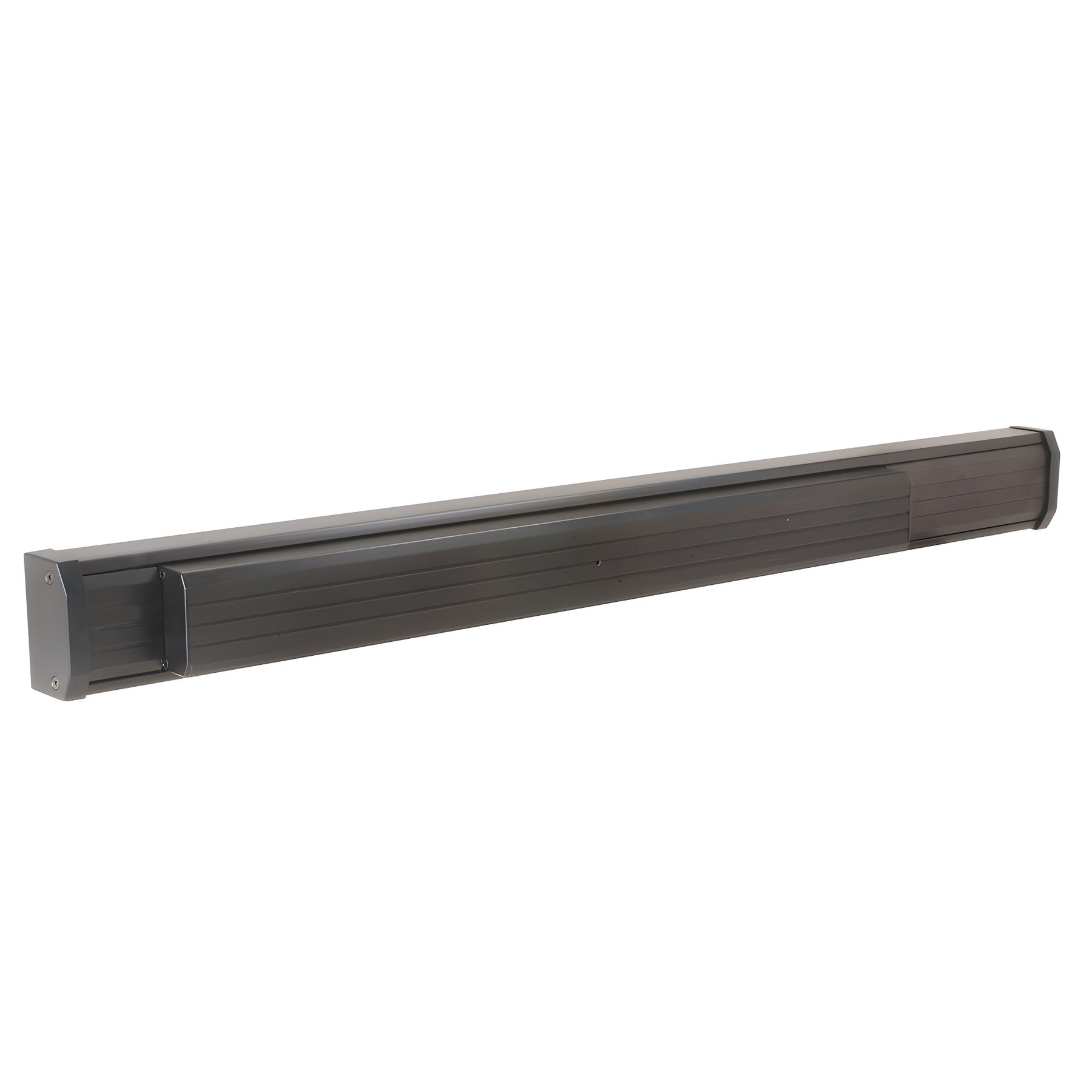

This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
Standard Height 84" (2.13 m) - Extension Available
Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
