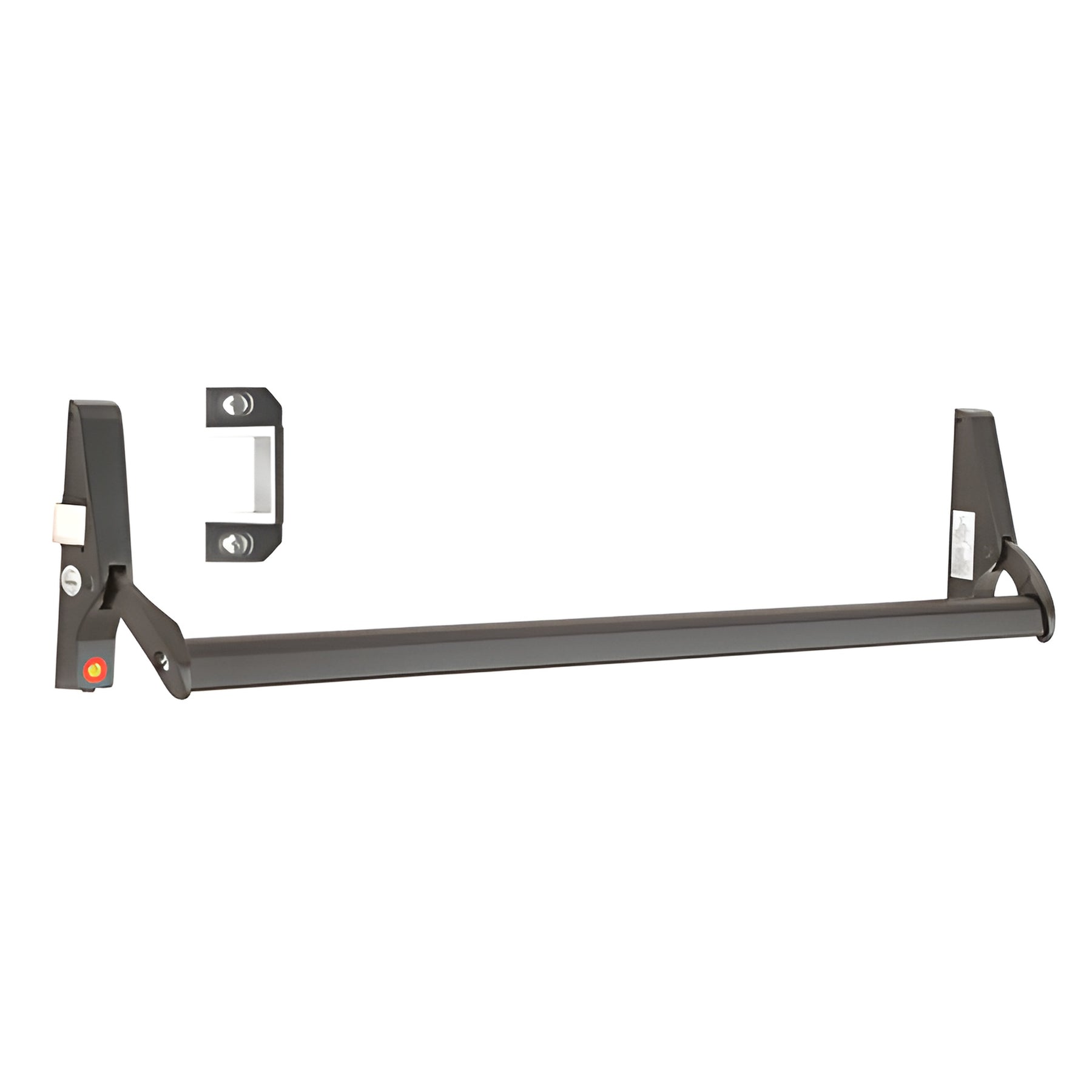

CRL Dark Bronze 48" Jackson® 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKU311095LC4313
Pack Size1
BrandJackson
CertificationANSI/BHMA 156.3
Door Thickness1-3/4 in. (44.5 mm)
Door Width48 in. (1219.2 mm)
Finish/Color:Dark Bronze
HandingLeft Hand Reverse Bevel (LHR)
IncludesMounting Hardware
Material - HousingAluminum
Material - Latch & StrikeSintered Steel
Material - Mechanical ComponentsStainless and Hardened Plated Steel
Minimum Stile Width1-3/4 in. (44.5 mm)
Model1095
Panic Bar Projection4-5/8 in. (117.5 mm)
Panic Bar Width Net48 in. (1219.2 mm)
Panic DoggingScrew Driver
Panic Head Base Width1-1/4 in. (31.8 mm)
Panic Head Height7-5/16 in. (185.7 mm)
Panic TypeRim
Recommended Door TypeNarrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Series10
UL ListedYes

Description

Product Details

  • Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
  • Concealed Fastening for Added Security

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. These Exit Devices are designed to withstand wear and tear, yet remain aesthetically pleasing for years to come. Each part is manufactured from the highest quality materials, which are hand fitted and adjusted for a smooth, whisper quiet operation. CRL Jackson® Exit Devices are suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.

Product Warning:

Wood Door Mounting Requires Use of Cat. No. 30894 Wood Door Mounting Kit.

Specifications
