CRL 4-inch Square Sliding Door System Dark Bronze Anodized SSR OX/XO
CRL 4-inch Square Sliding Door System Dark Bronze Anodized SSR OX/XO
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR2CDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO or OX
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) square rails features the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails on all sliding panels. Bottom rails can be specified with or without locks to suit commercial or residential applications.
The fixed panels use SR4S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for secure, weather-resistant installation. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications and ideal for projects requiring a bottom rolling sliding door system with 4-inch square rails.
SKU: 4SSR2CDU — Contact CRL Customer Service or request a quote to get pricing and lead times.
Specifications

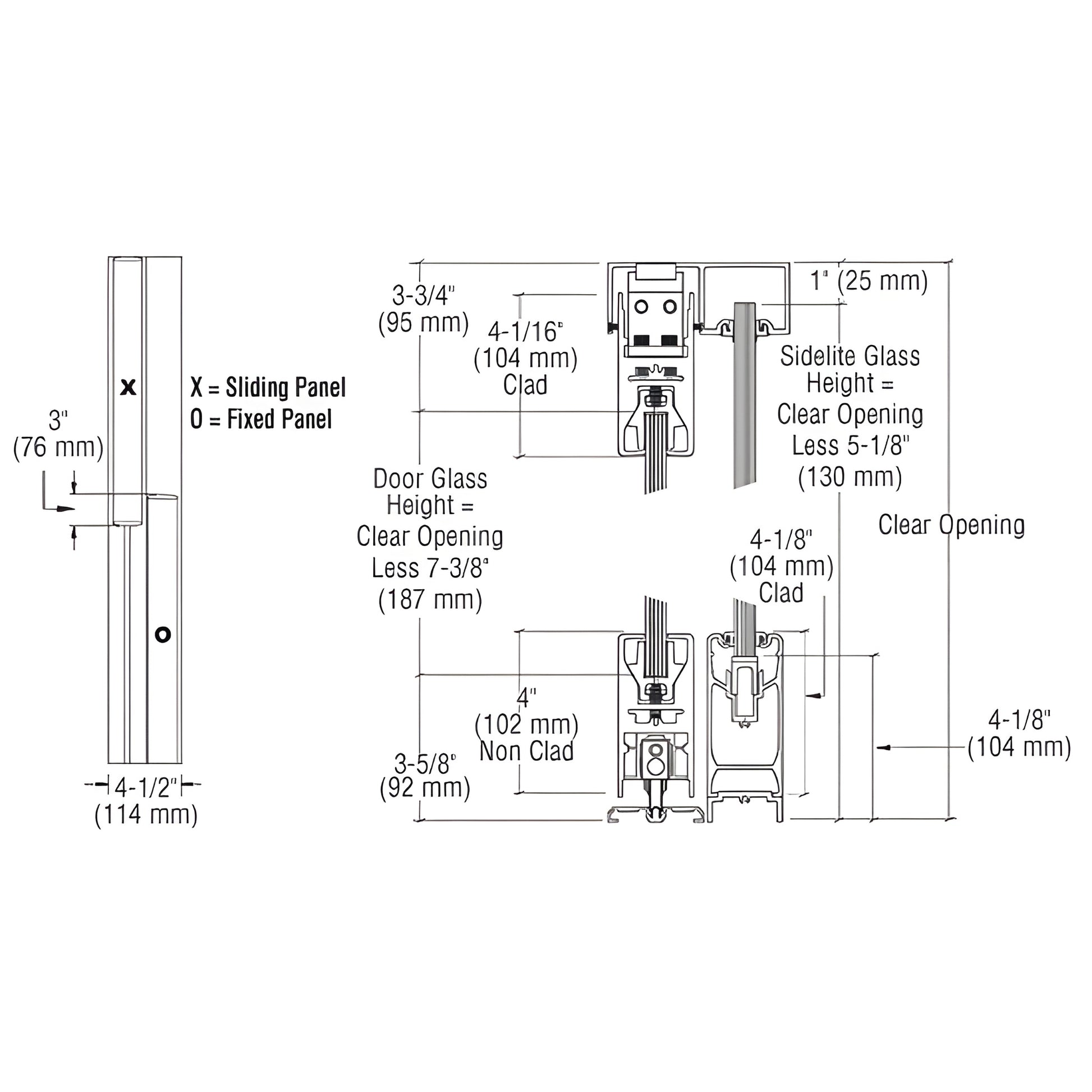

CAD Drawings - pdf
