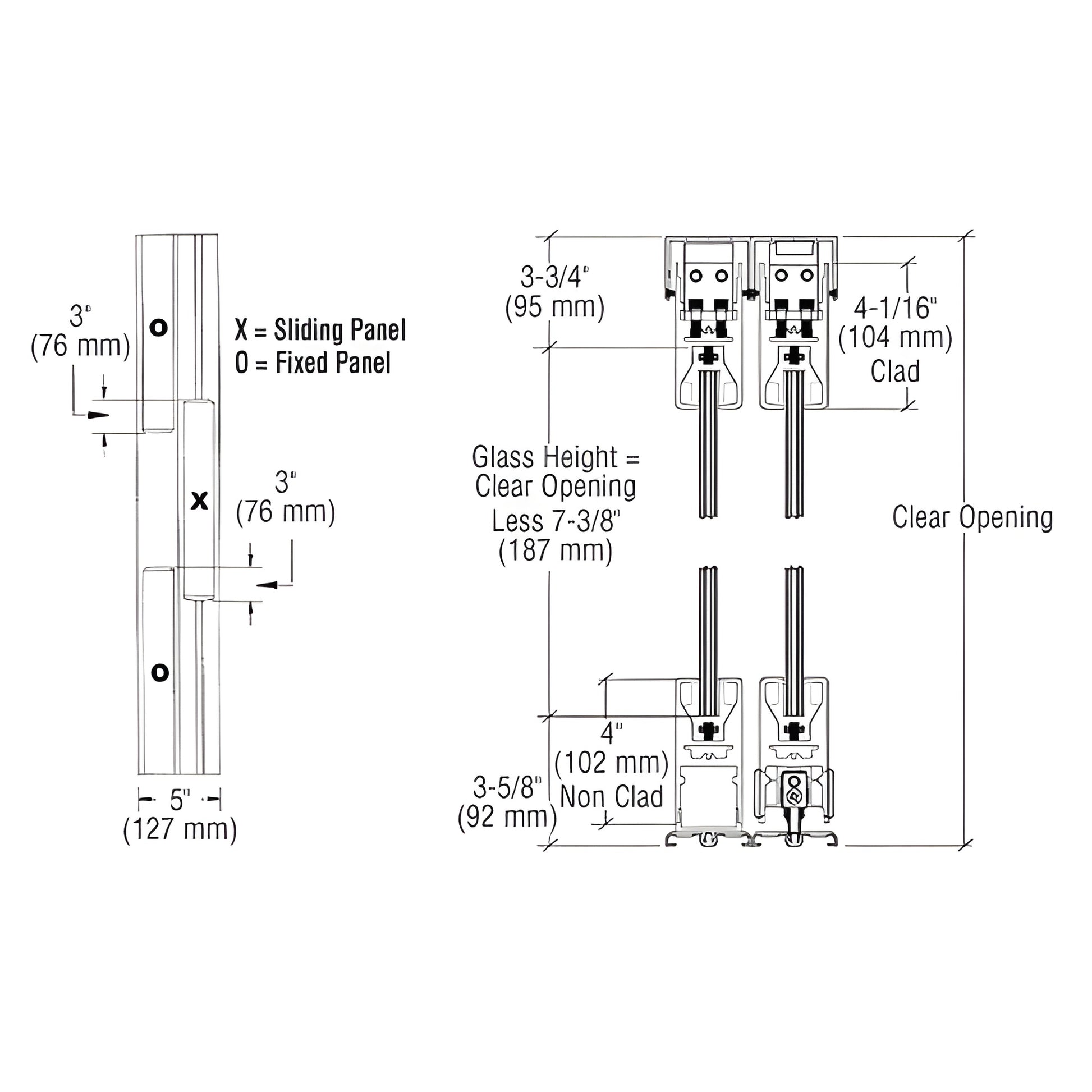

• Line drawing of CRL SDR bottom-rolling sliding door system DR4S rails with 4 in. rail and dimensional callouts
1 1

CRL

CRL OXO Format Dark Bronze Anodized Sliding Door System - 4" Rail

CRL OXO Format Dark Bronze Anodized Sliding Door System - 4" Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR3EDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR bottom rolling sliding door system with 4" (102 mm) square rails top and bottom features the proven Wedge-Lock® glass securing system for secure, frameless glass installations. DR4S Series door rails are custom fabricated to your specifications for both door and fixed panels. Doors can be ordered with or without bottom-rail locks to suit commercial and residential applications.
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lb (106 kg)

Available in seven architectural finishes—ideal for contemporary interior storefronts, glass office partitions, and shower enclosures that require a low-profile, bottom-rolling solution.

Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary with monitor settings.


Order the CRL SDR bottom rolling sliding door system with DR4S rails for reliable, custom glass door performance—contact CRL for a quote or lead time.
