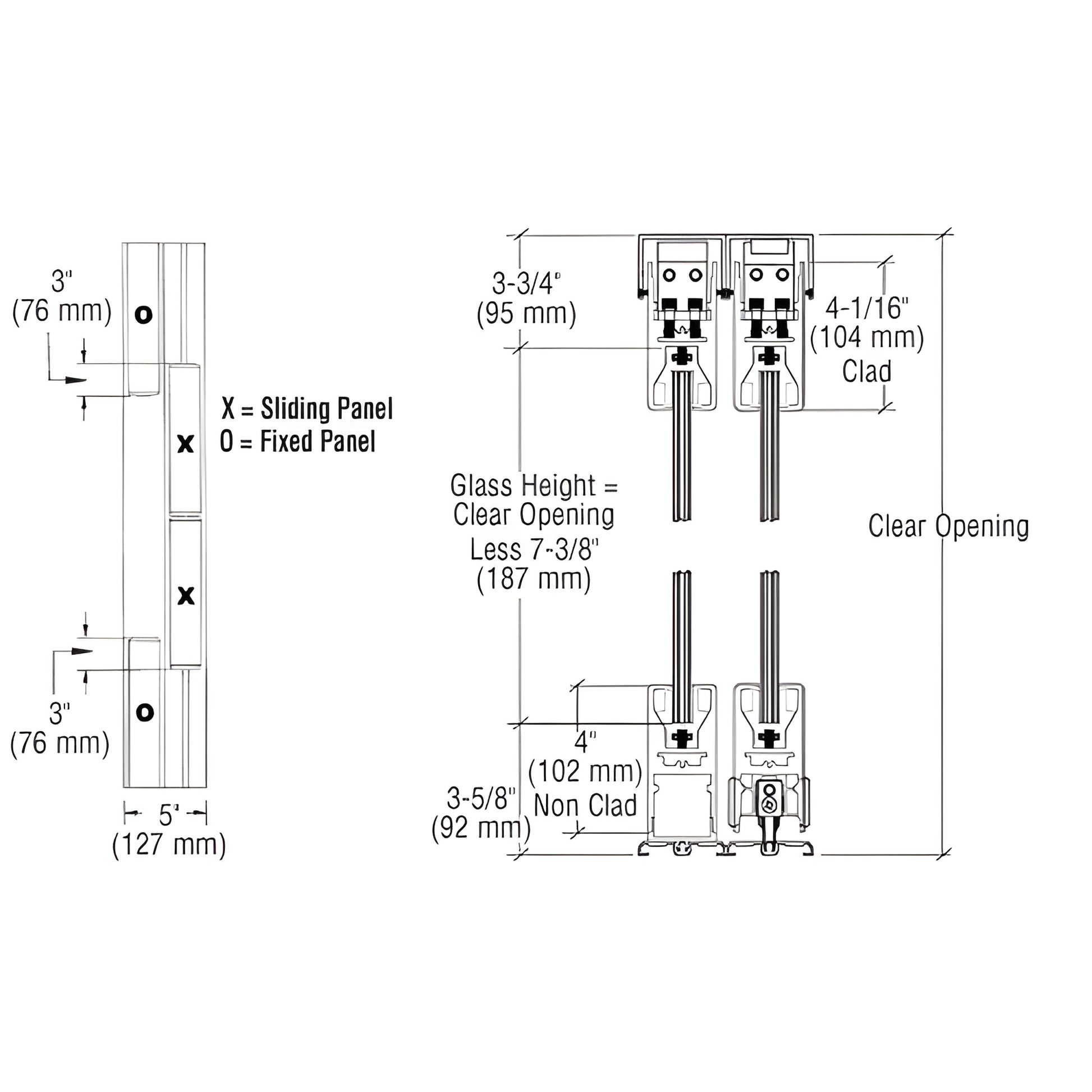

• CAD drawing of CRL SDR bottom-rolling sliding glass door system SKU 4SDR4FDU, 4-inch square rails, OXXO 4-panel layout
1 1

CRL

CRL OXXO Sliding Door System Dark Bronze Anodized 4 in Square Rail

CRL OXXO Sliding Door System Dark Bronze Anodized 4 in Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR4FDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR4FDU) is a bottom-rolling sliding glass door solution featuring 4" (102 mm) Square DR4S Series rails top and bottom and the proven Wedge-Lock® Glass Securing System. DR4S rails accommodate all door and fixed panels and are custom fabricated to your specifications. Order doors with or without bottom-rail locks.

  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs (106 kg)

Key differentiators: durable 4" square rail design, Wedge-Lock® glass retention for secure glass installation, custom fabrication to fit project dimensions, and seven architectural finish options—ideal for commercial and high-end residential glass partitions and storefronts. Long-tail product keywords: bottom rolling sliding glass door system with 4-inch square rails, DR4S sliding door hardware, Wedge-Lock glass securing sliding door.

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are actual products or close representations; colors may vary with monitor settings.

Ready to specify your SDR system? Contact CRL Customer Service to request a quote or confirm custom sizes and finishes.
