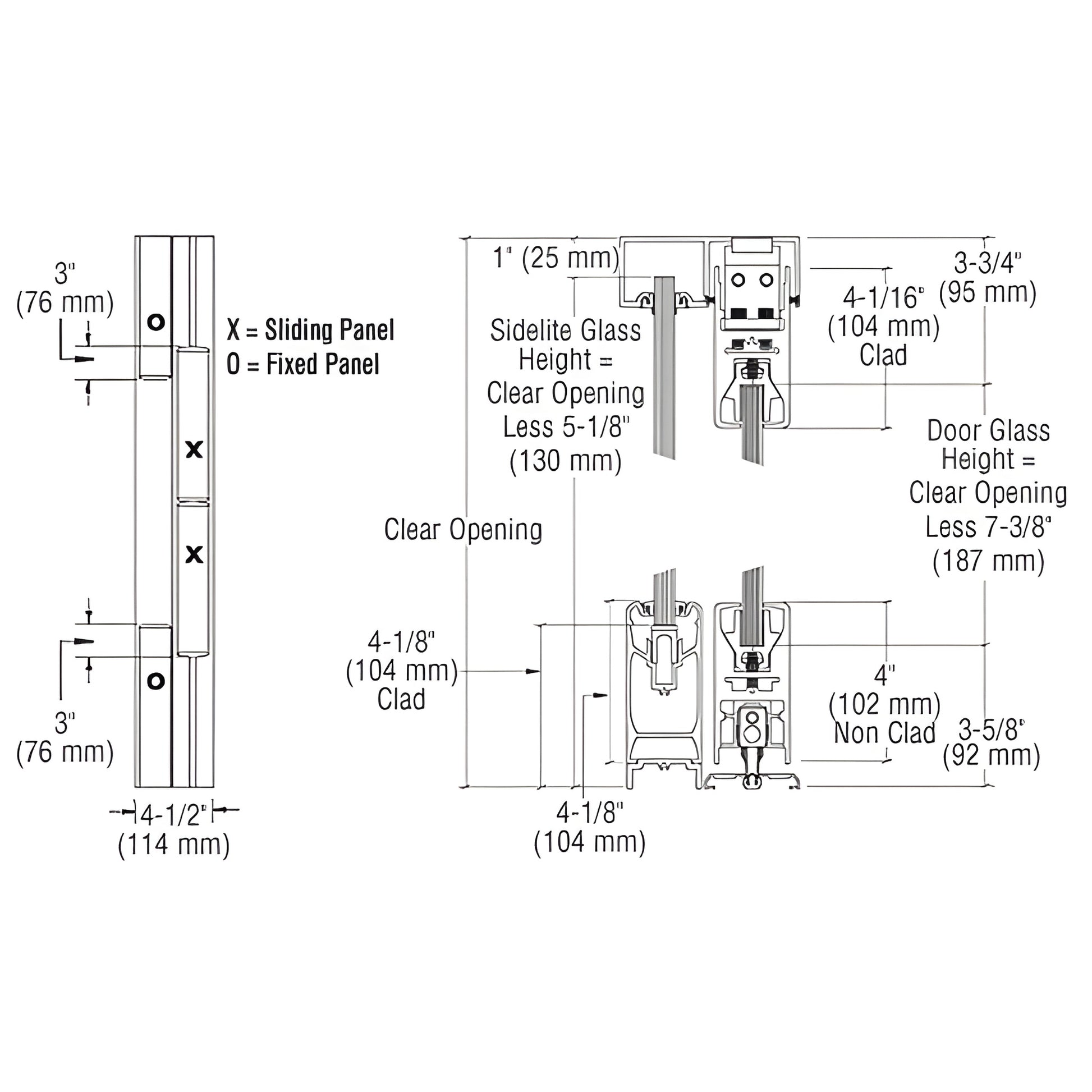

• Technical diagram of CRL SSR bottom-rolling sliding door rails, 4 in square dark bronze anodized, with dimensions.
1 1

CRL

CRL OXXO SSR 4 in Dark Bronze Anodized Square Sliding Door Track Kit

CRL OXXO SSR 4 in Dark Bronze Anodized Square Sliding Door Track Kit

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SSR4FDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • 4" Square DR4S Series Door Rails for sliding panels and 4" Square SR4S Series Sidelite Bottom Rails
  • Available in seven architectural finishes

The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR4FDU) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails. Bottom rails can be specified with or without locks for secure, low-profile operation.

Fixed sidelites use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl at the top track for weather resistance and smooth installation. Product limits: maximum door width 48" (1.22 m), maximum door height 108" (2.74 m), and maximum panel weight 234 lbs. (106 kg). All panels are custom fabricated to your specifications for tailored bottom rolling sliding doors and commercial storefront applications.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Why choose CRL SSR Bottom Rolling Sliding Door System? Durable Wedge-Lock® glass retention, customizable rail finishes, and engineered bottom rolling performance for commercial and residential sliding door projects. Contact CRL to configure your system or request a quote.
