CRL Dark Bronze Anodized XO/OX 4" Square Rail Sliding Door System
CRL Dark Bronze Anodized XO/OX 4" Square Rail Sliding Door System
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2CDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- 4" (102 mm) Square DR4S Series Door Rails for top and bottom
- Available in seven architectural finishes

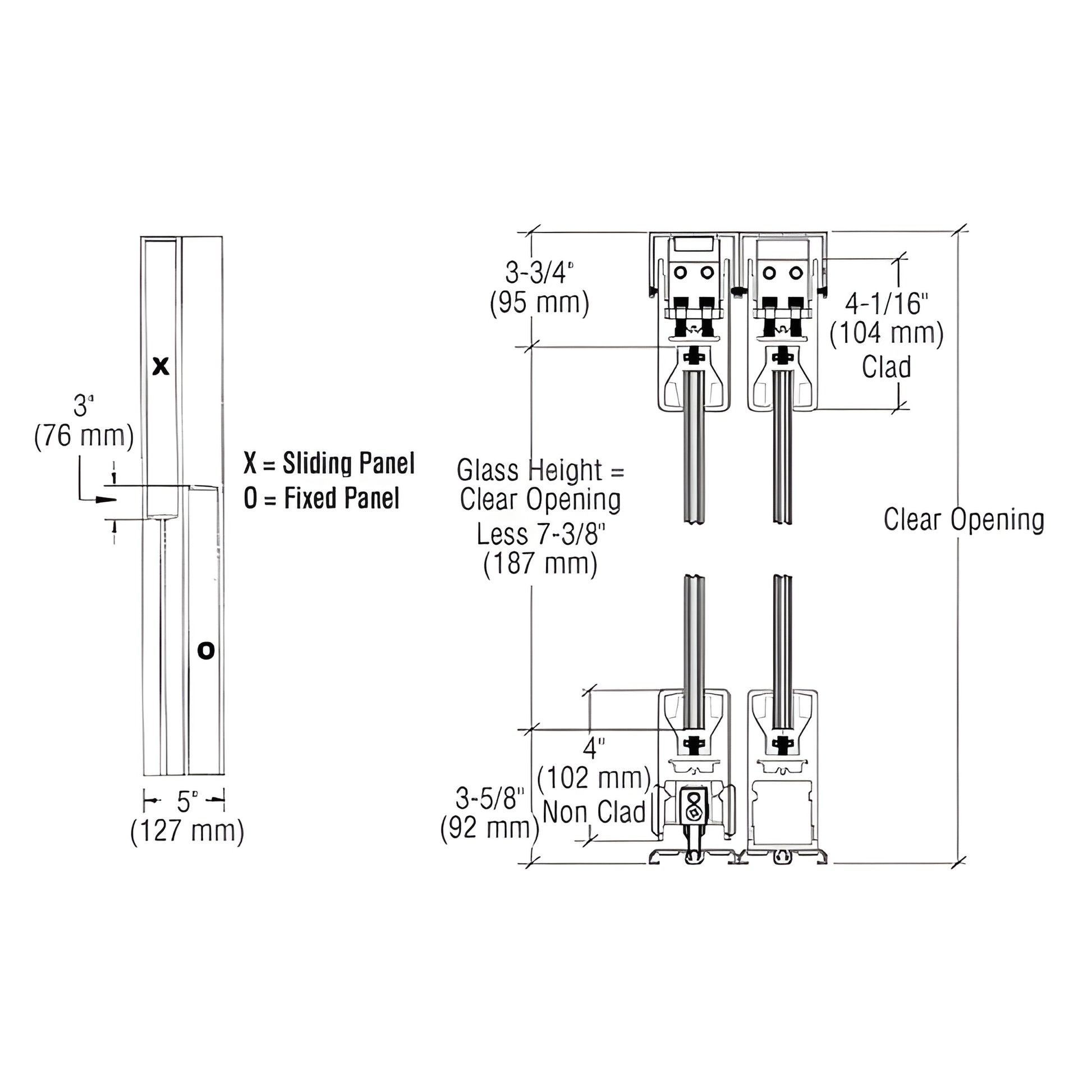

CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR2CDU) features 4" square top and bottom rails and CRL's Wedge-Lock® Glass Securing System for secure, smooth bottom-rolling operation. DR4S Series rails are custom fabricated to your project specifications and accommodate both door and fixed panels. Doors may be ordered with or without locks integrated into the bottom rail.
- Maximum door width: 48" (1.22 m)
- Maximum door height: 108" (2.74 m)
- Maximum door weight: 234 lb (106 kg)
Key differentiators: Wedge-Lock® glass retention for durability, custom-fabricated DR4S rails for precise installations, and seven architectural finish options to match commercial and residential interiors.
Order the CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR2CDU) or contact CRL for a custom quote and finish options.
Specifications
CAD Drawings - pdf
