CRL XOX SSR 4" Square Sliding Door System - Dark Bronze Hardware
CRL XOX SSR 4" Square Sliding Door System - Dark Bronze Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR3DDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XOX
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR3DDU) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails. Bottom rails for sliding panels are available with or without locks for secure bottom rolling operation.
Fixed sidelites use SR4S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Rated maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and smooth bottom rolling performance.
Ideal for commercial and residential bottom rolling sliding door projects requiring durable 4" square rails and secure Wedge-Lock glazing. Contact CRL to order custom-fabricated panels or request a quote.
Specifications

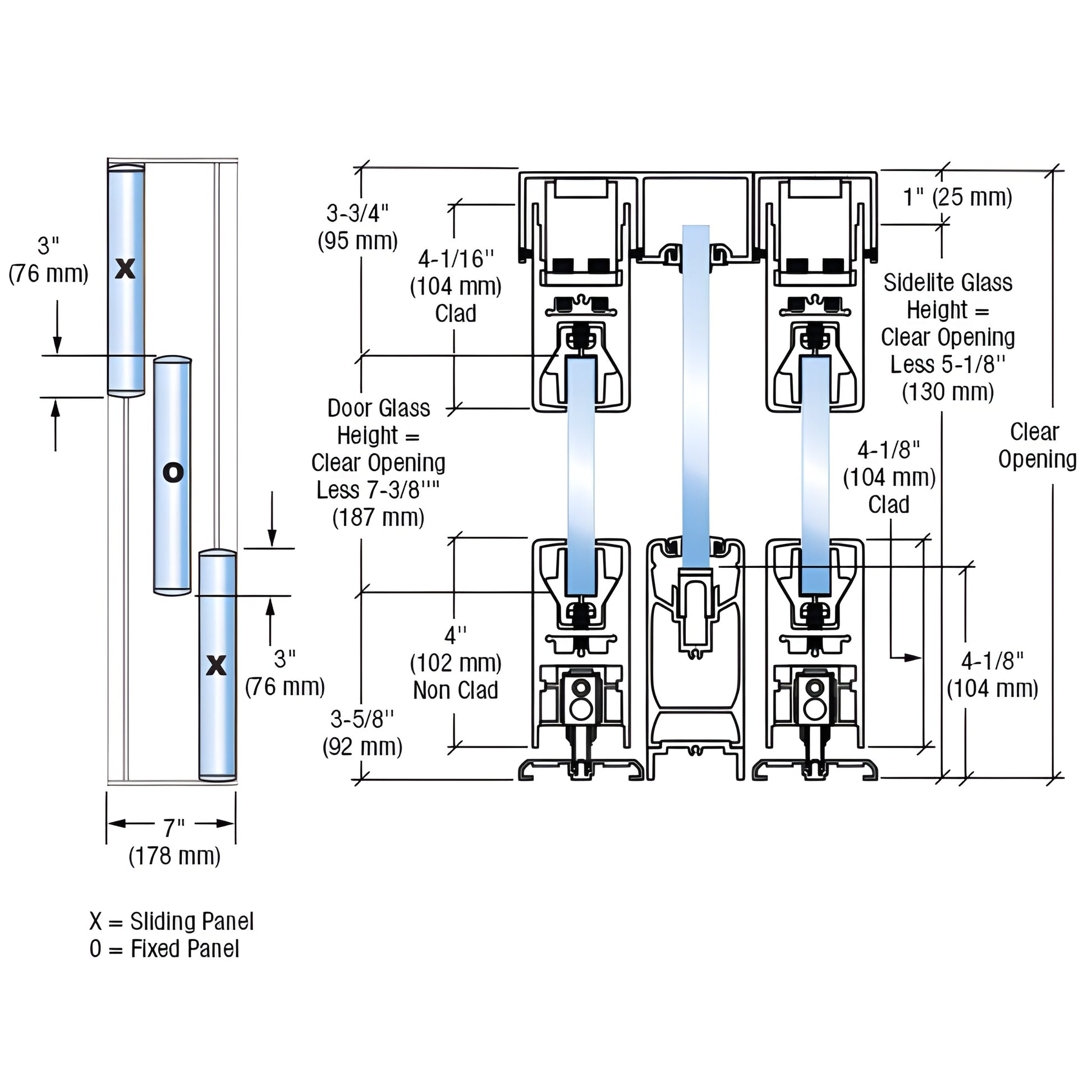

CAD Drawings - pdf
