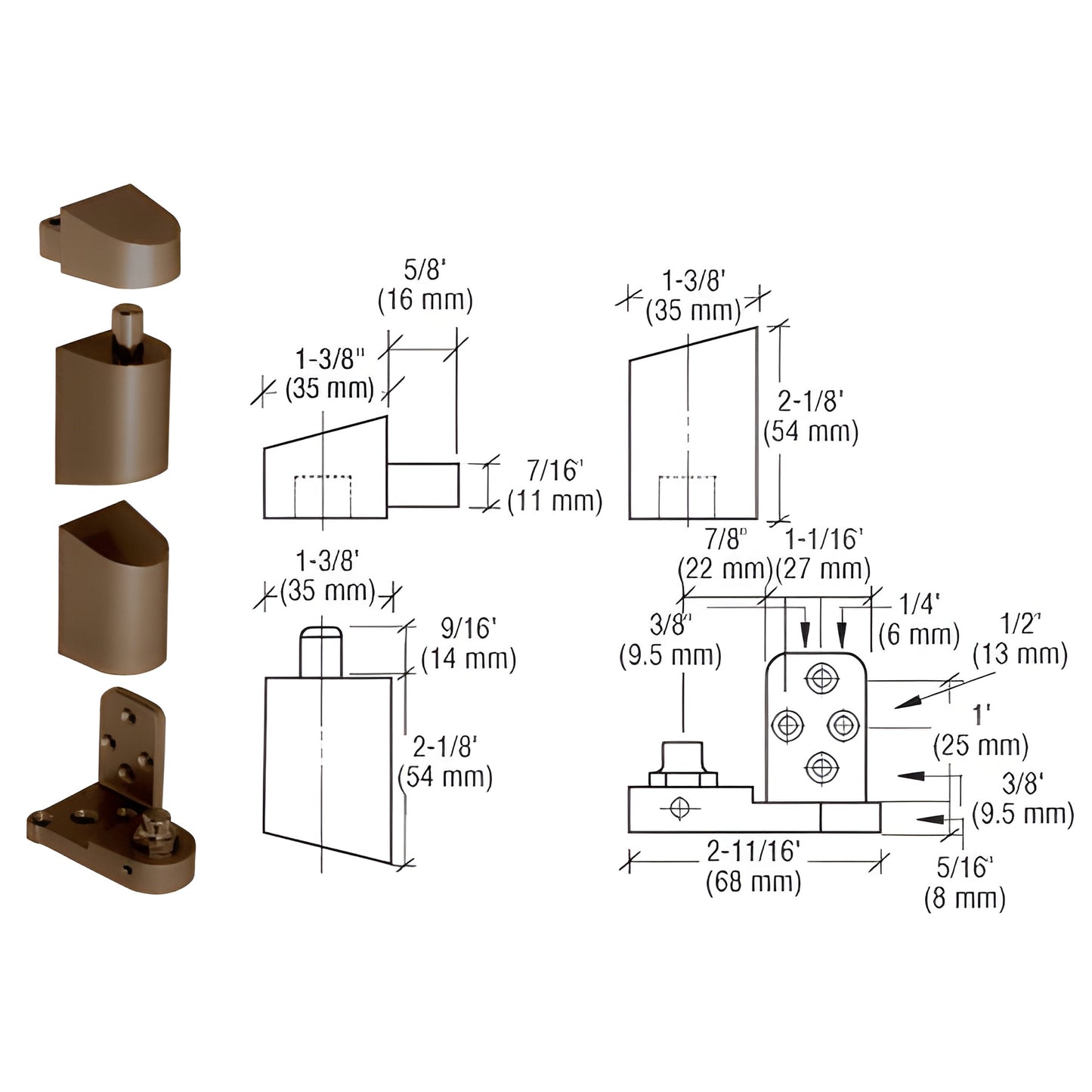

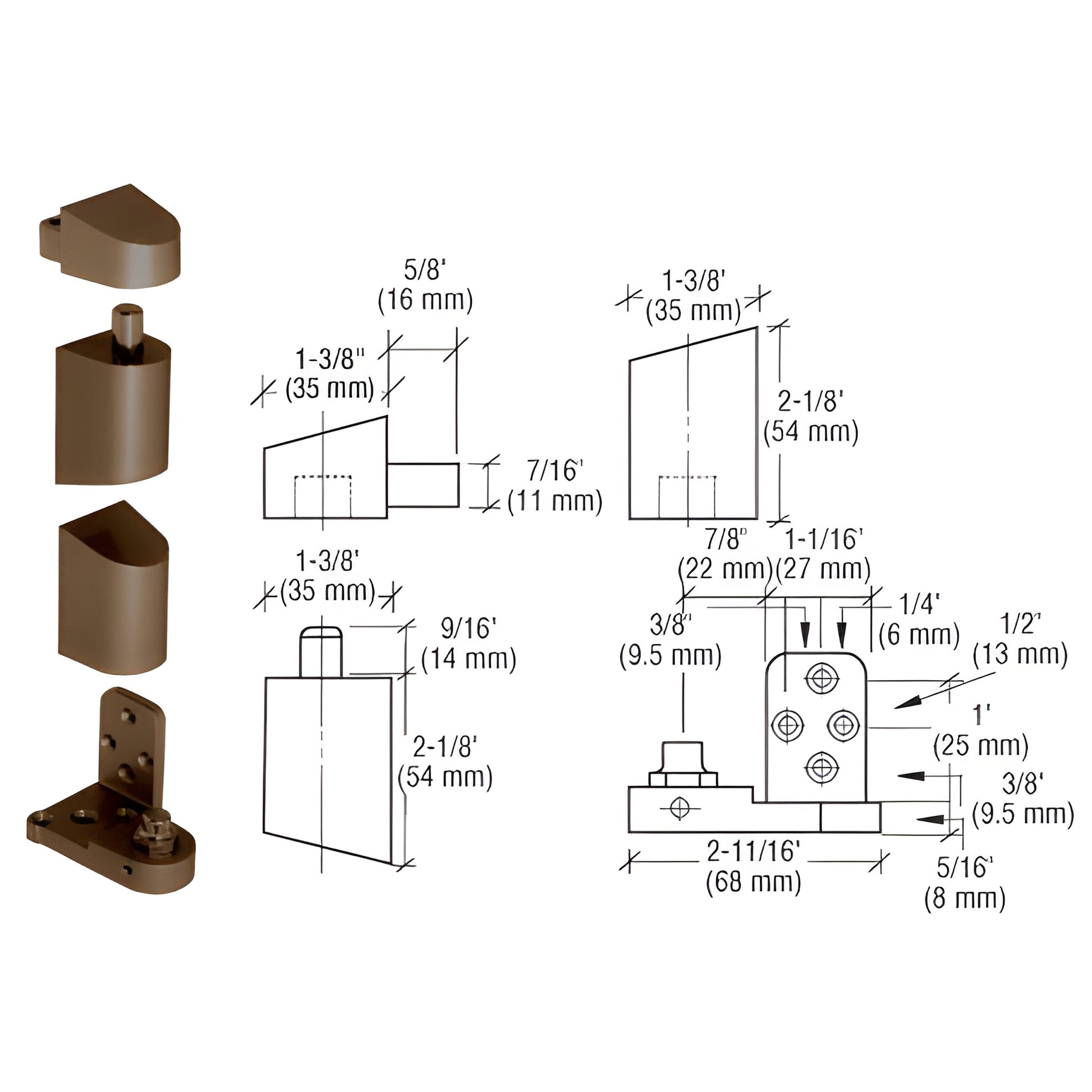

• Dark bronze CRL offset pivot set (SKU 0P34LHDU) with die-cast aluminum pivots and dimensional diagram.
1 1

CRL

CRL Dark Bronze Left-Hand Offset Pivot Set for Glass Doors (Flush)

CRL Dark Bronze Left-Hand Offset Pivot Set for Glass Doors (Flush)

$36.91 CAD
$36.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P34LHDU
Shipping Weight: 1.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Left Hand
Material
Aluminum
Pivot Series
OP34
Pivot Set
Yes
Pivot Style
Flush With Face Frame
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front

Overview

  • 1/8" (3.2 mm) vertical adjustment for fine door alignment
  • Die-cast aluminum construction for corrosion resistance
  • Designed for aluminum frames and commercial doors up to 125 lbs. (57 kg)
  • Handed (left or right) — not reversible
  • Compatibility: used on U.S. aluminum commercial doors

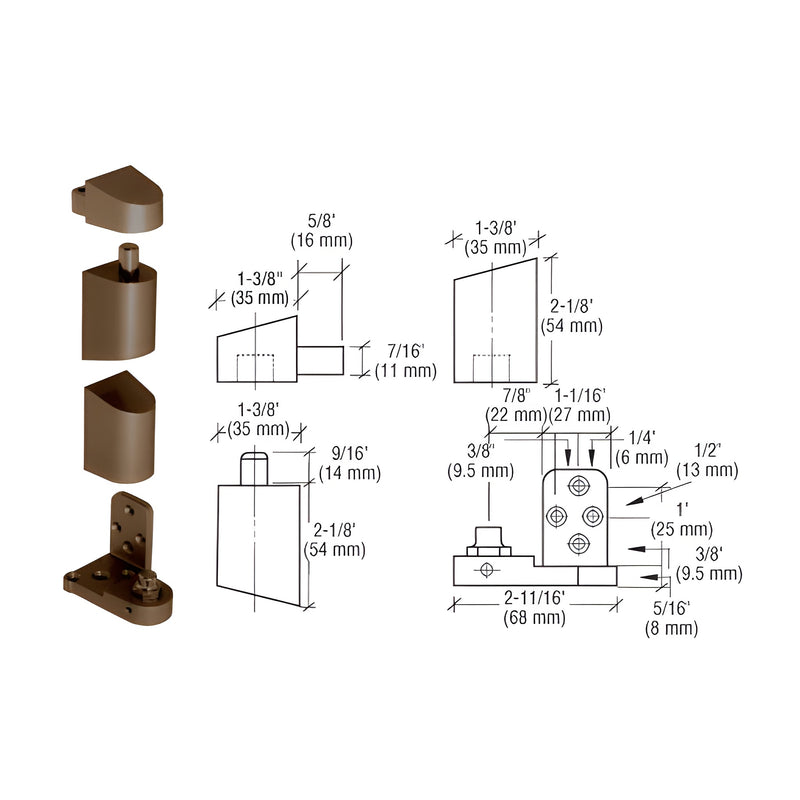

CRL Offset Pivot Sets for commercial doors combine machined and die-cast components to support a wide range of aluminum door applications. Each complete kit includes pivots, door fasteners, and anchors — illustrated with dimensions for easy selection. Available in satin aluminum and dark bronze finishes. One set per package. SKU: 0P34LHDU.

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required before ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor and video card settings.

Order the 0P34LHDU offset pivot set today for reliable, adjustable performance on aluminum commercial doors.
