CRL Dark Bronze Offset Reversible Pivot Set with 1/8" Recess

Finish (2)

Volume pricing

Save up to 10%

Applied automatically

Overview

SKU0P28NHDU
Sold as1 Set
Bottom Door Clearance Adjustment1/8 in. (3.2 mm)
Door Weight125 lbs. (56.7 kg)
Extending Length24 in. (609.6 mm)
Finish/Color:Dark Bronze
HandingNon Handed and Reversible
MaterialAluminum
Pivot SeriesOP28
Pivot SetYes
Pivot Style1/8 in. Recess (3 mm Recess)
Pivot TypeOffset
Recommended Door TypeAluminum Store Front

Description

Product Details

  • Non-Handed, Reversible
  • Suitable for Aluminum Frames and Doors Weighing Up to 125 Lbs. (57 kg)
  • Diecast Aluminum

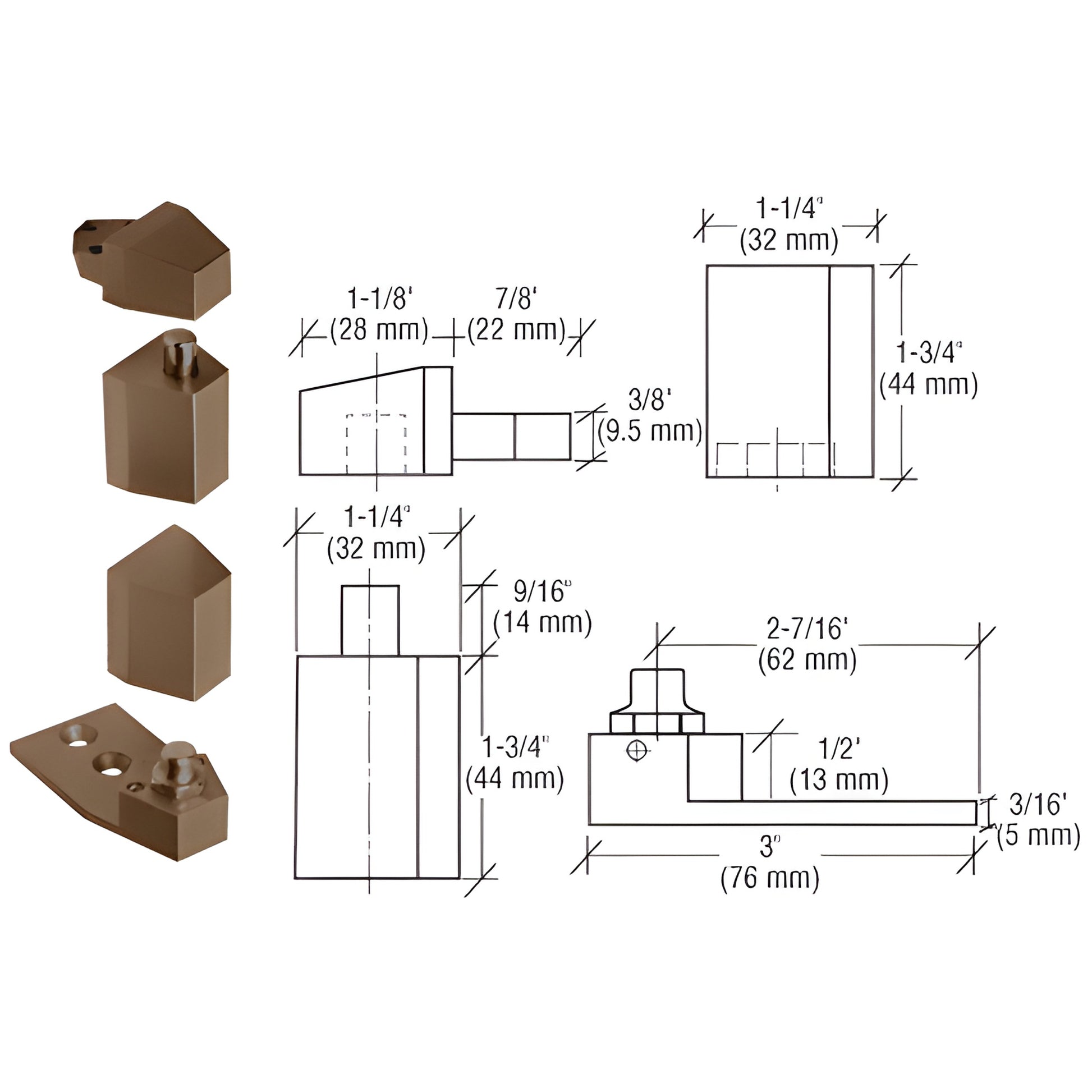

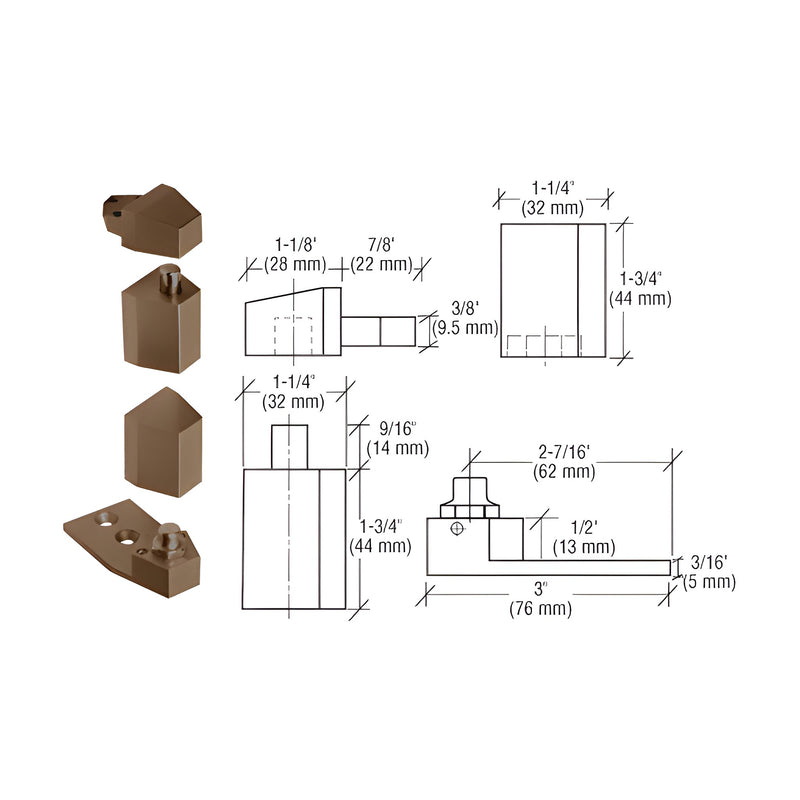

CRL Offset Pivot Sets for commercial doors feature quality machined and diecast components in combinations to accommodate just about any commercial door. Everything you need comes in one box, including the door fasteners and anchors. Each has been illustrated with dimensions for ease of selection. Non-handed Pivot Sets are available in satin aluminum and dark bronze finishes. One set per package.
