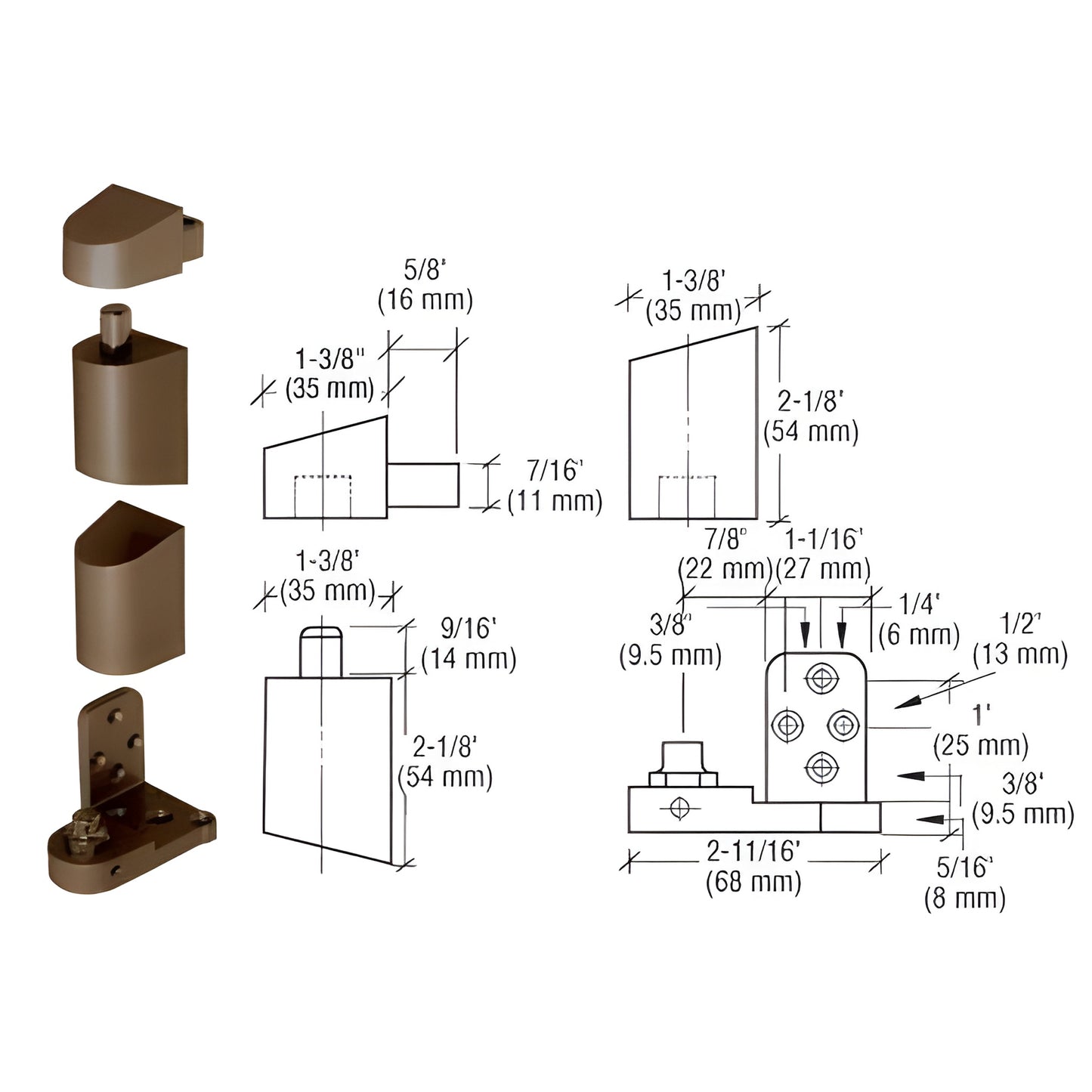

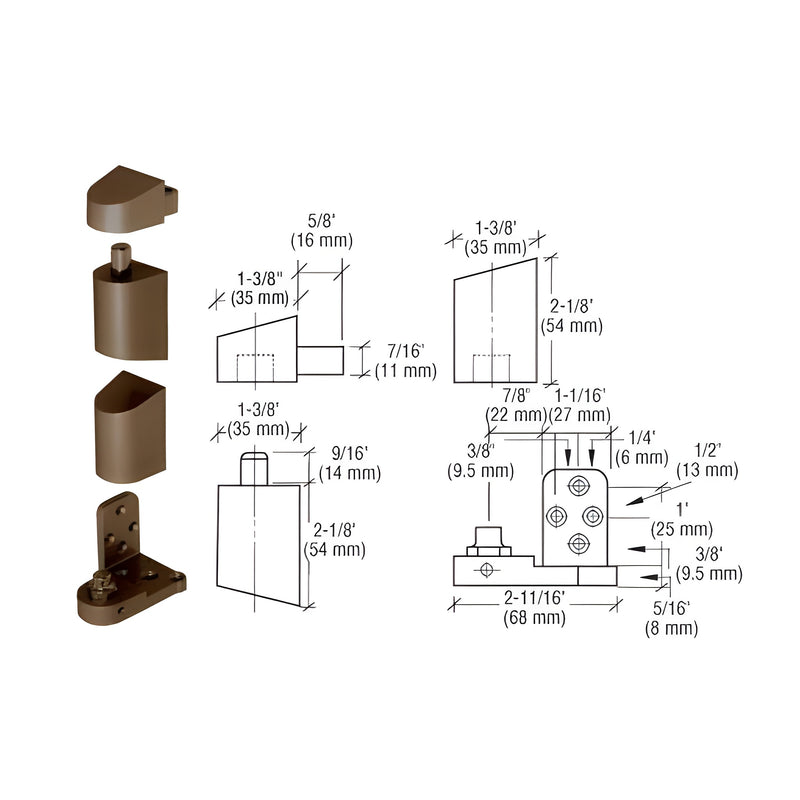

• Dark bronze aluminum offset pivot set with components and dimensional diagram for 125 lb storefront doors 0P34RHDU
1 1

CRL

CRL Dark Bronze Offset Right-Hand Pivot Set for Shower/Glass Doors

CRL Dark Bronze Offset Right-Hand Pivot Set for Shower/Glass Doors

$36.91 CAD
$36.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P34RHDU
Shipping Weight: 7.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Right Hand
Material
Aluminum
Pivot Series
OP34
Pivot Set
Yes
Pivot Style
Flush With Face Frame
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front

Overview

  • 1/8" (3.2 mm) vertical adjustment
  • Die cast aluminum construction
  • Suitable for aluminum frames and doors weighing up to 125 lbs. (57 kg)
  • Handed — not reversible (left or right hand pivot sets available)
  • Designed for U.S. aluminum doors

CRL Offset Pivot Sets are complete commercial door pivot kits engineered for aluminum frames — ideal when you need a durable, low-profile pivot for an aluminum door up to 125 lb. Each kit includes machined and die-cast components plus door fasteners and anchors, so everything arrives in one box for fast installation. Available in satin aluminum and dark bronze finishes. One set per package. SKU: 0P34RHDU.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, and shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Shop this commercial offset pivot set for aluminum doors (SKU 0P34RHDU) — add to cart to complete your installation.
