CRL Dark Bronze Right-Hand Offset Door Pivot Set 1/8" Recess
CRL Dark Bronze Right-Hand Offset Door Pivot Set 1/8" Recess
Regular price
$35.48 CAD
Regular price
Sale price
$35.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P40RHDU
Shipping Weight: 8.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Right Hand
Material
Aluminum
Pivot Series
OP40
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3 mm) vertical adjustment
- Diecast aluminum construction
- Suitable for aluminum frames and doors weighing up to 125 lbs. (57 kg)
- Handed — not reversible (left or right hand sets available)
- Used on: Amarlite, Arch Aluminum®, Rebco

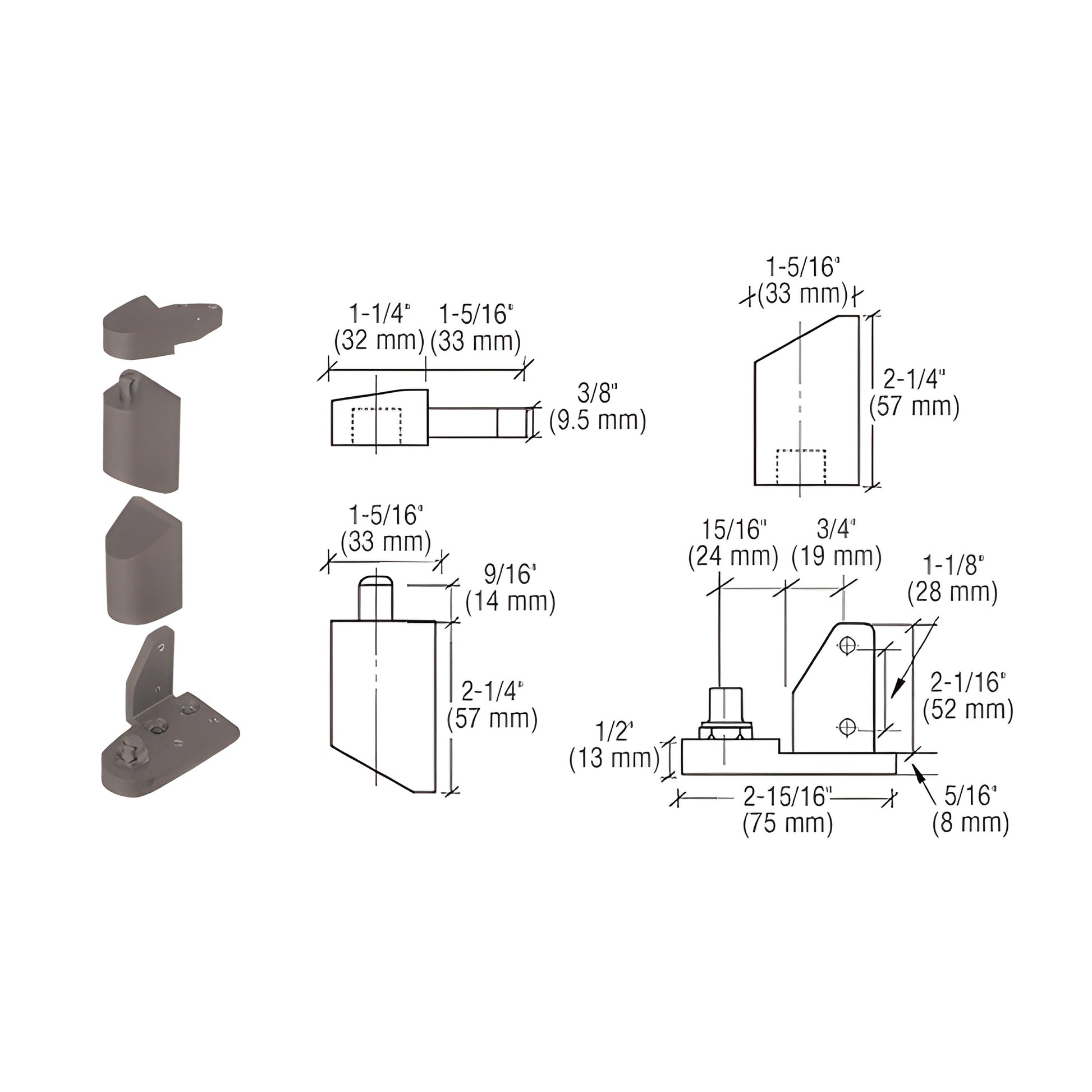

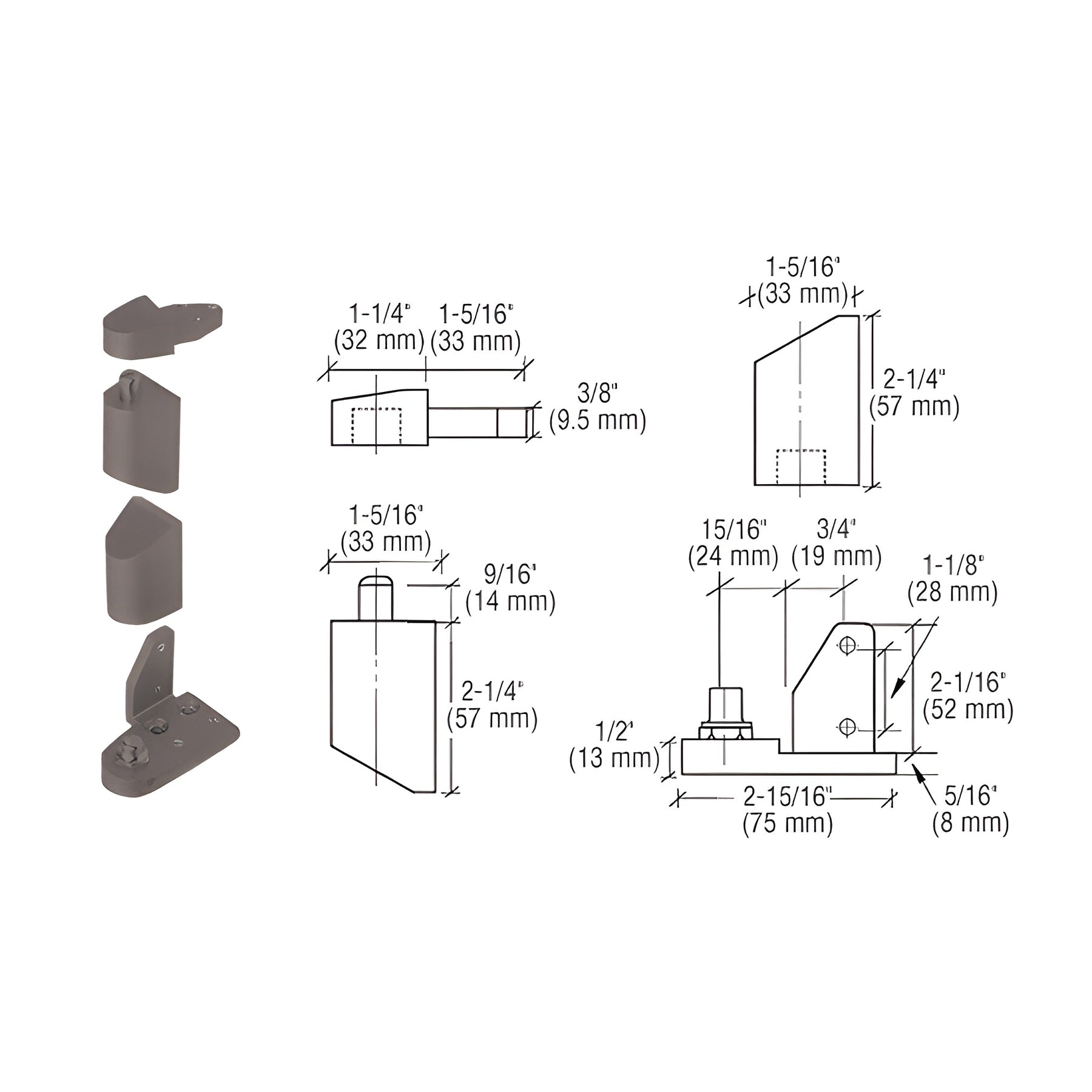

CRL Offset Pivot Sets are precision diecast and machined pivot sets designed for commercial aluminum doors and frames. Each complete set ships with door fasteners and anchors, plus illustrated dimensions for easy selection. Available in satin aluminum and dark bronze finishes. One set per package.
Sku: 0P40RHDU — Order this commercial offset pivot set for aluminum doors today.
