CRL

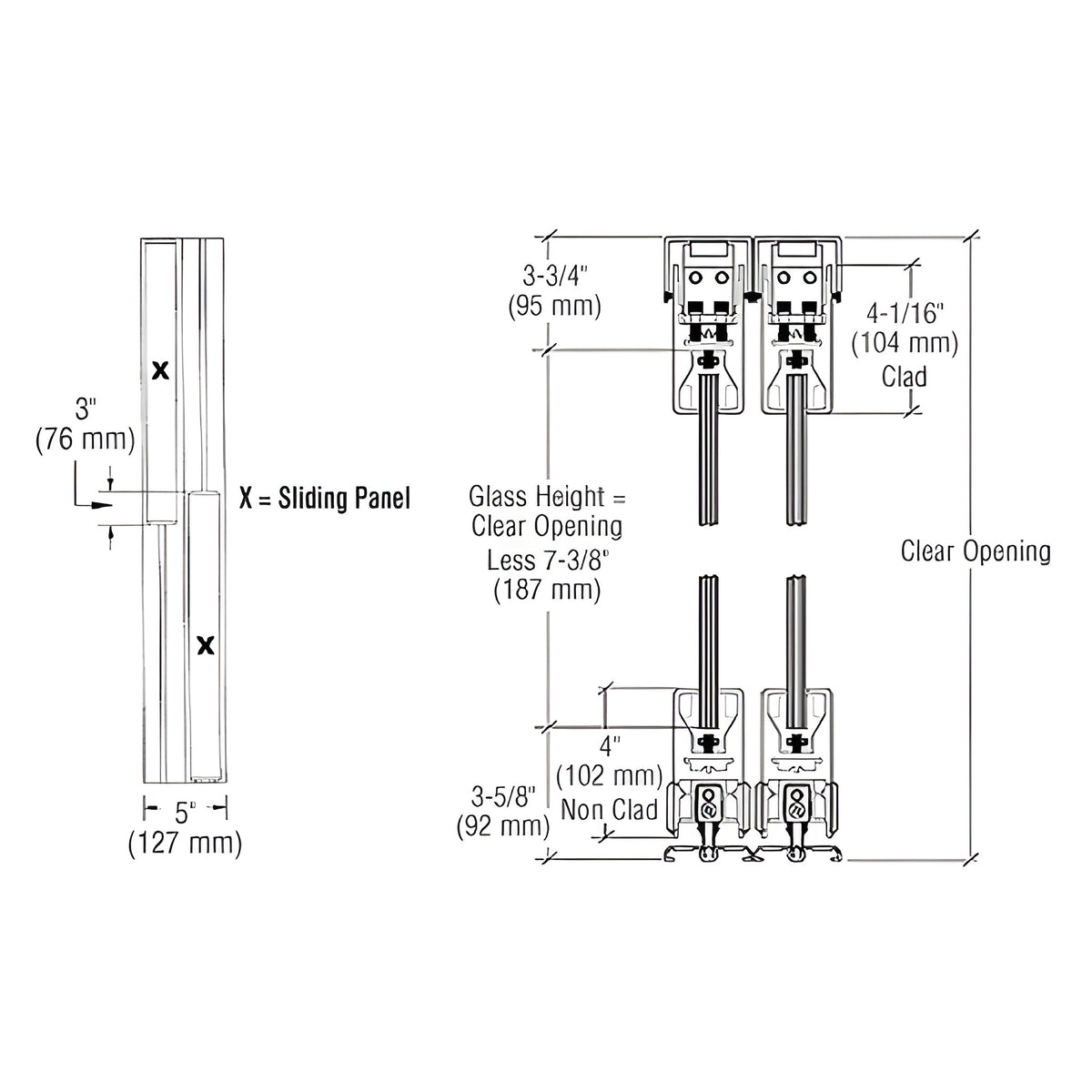

CRL Dark Bronze XX Sliding Entrance Door System - 4in Top/Bottom Rail
CRL Dark Bronze XX Sliding Entrance Door System - 4in Top/Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2BDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Dark Bronze Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR2BDU) features 4" (102 mm) square top and bottom rails and the proven Wedge-Lock® Glass Securing System for secure, reliable bottom-rolling glass doors. DR4S Series rails are custom fabricated for each door and fixed panel and are suitable for commercial and residential sliding glass door applications. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lb (106 kg). Ideal for architects and contractors specifying bottom-rolling sliding door systems with 4-inch square rails and multiple architectural finishes.
Specifications

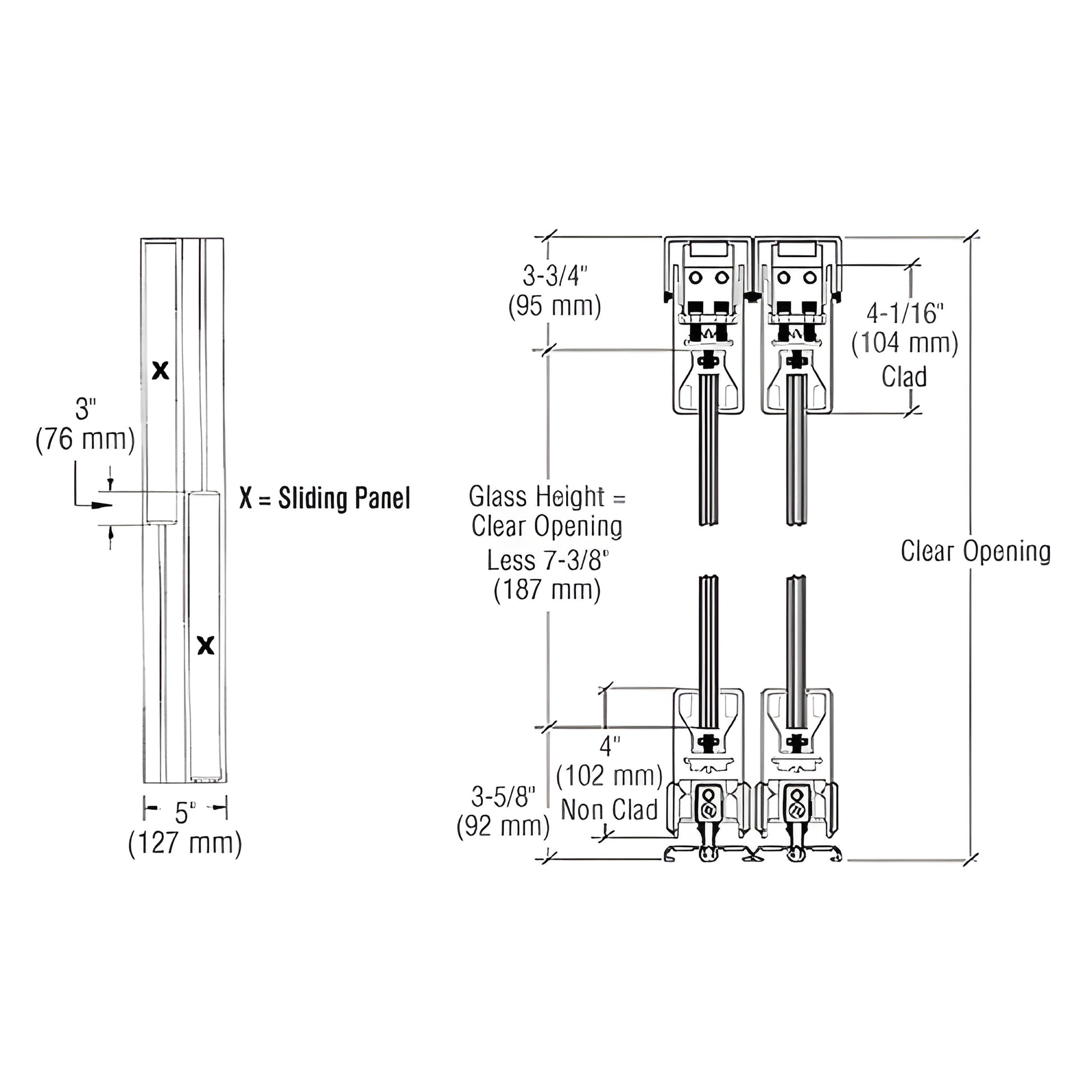

CAD Drawings - pdf
