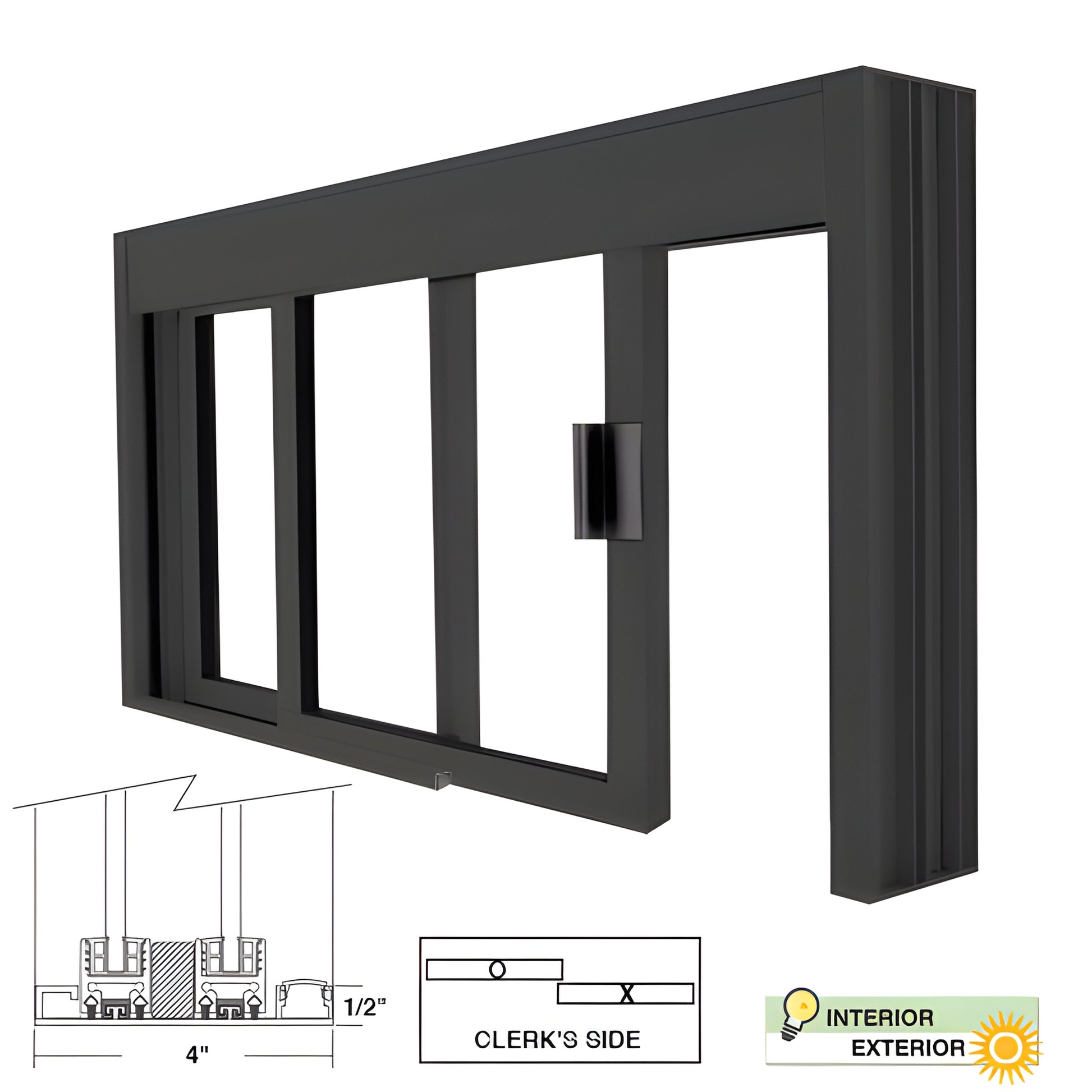

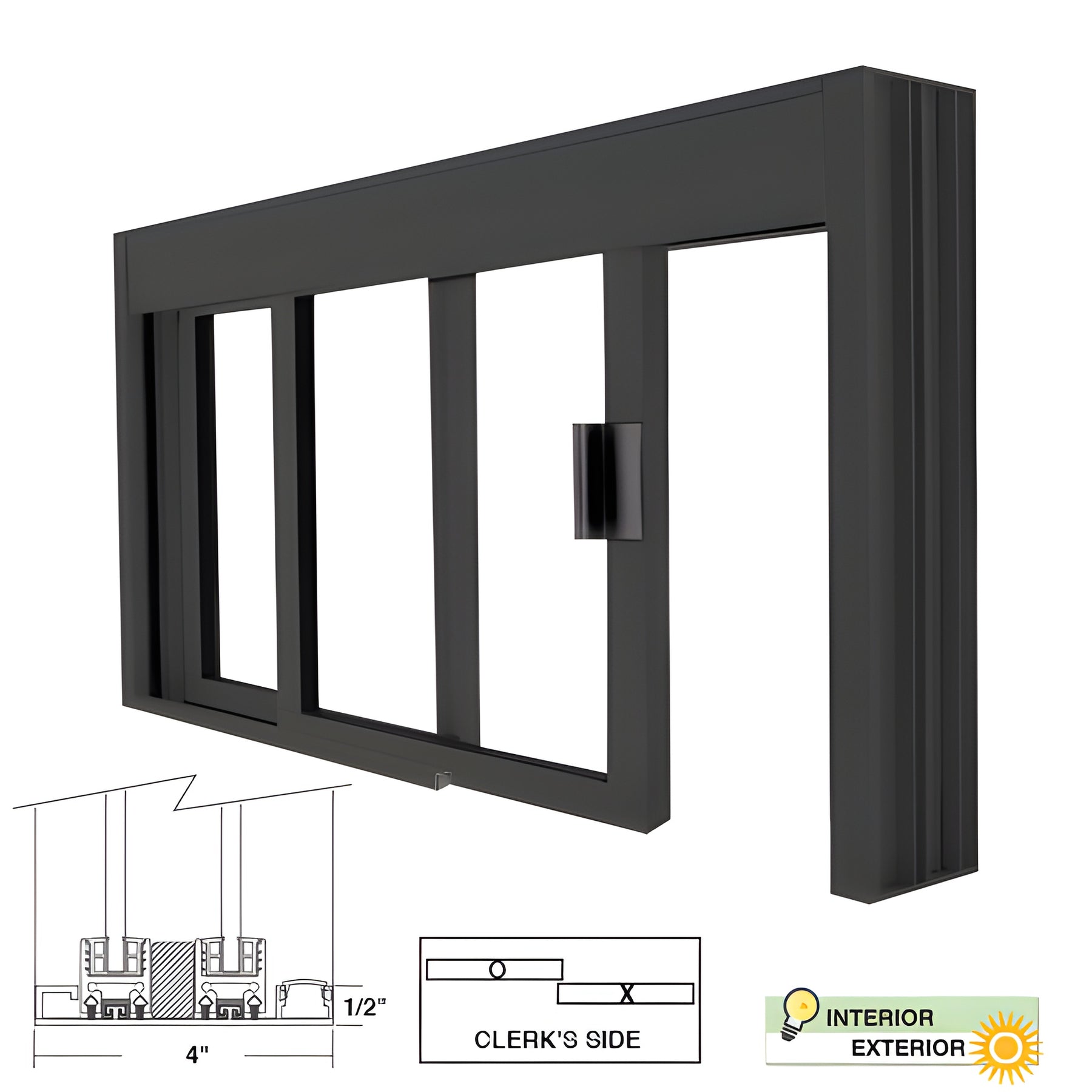

CRL Deluxe Manual Service Window Unglazed Half-Track

• Ships assembled and unglazed; includes glazing vinyl for 1/4" or 1/2" glass
• Configuration: OX Clerkside (X = sliding panel)
• Sturdy self-latching handle for secure operation
• Popular 47-1/2" W x 35-3/4" H frame fits 48" x 36" opening (SKU: DW48360XUDU)
• No track under sliding panel — manual open/manual close for clear counter passage

CRL Standard Size Manual Deluxe Service Windows (DW series) ship fully assembled and are ready to glaze or can be factory glazed and installed. Built for heavy-duty commercial use—ideal as a commercial drive-thru service window, walk-up service window, or secure interior service window—these manual deluxe service windows combine durability and ease of installation.

Available finishes: Satin Anodized or Duranodic Bronze. Bottom options: aluminum half-track (no track under sliding panel for unobstructed counter access) or stainless steel step-sill with water-dam for exterior applications. Custom versions are available on request.

Unglazed DW standard models include two sets of glazing vinyl: one sized for 1/4" glass and one for 1/2" glass (the 1/2" vinyl also accepts 9/16" glazing). Maximum vinyl glazing thickness is 5/8" (CRL WV3865 sold separately by the foot; 100 ft minimum). For 3/8" glass, use the provided 1/2" vinyl plus CRL 982116X34GRY double-sided adhesive foam tape (sold separately, 200-ft rolls) to wrap glass edges for proper fit.

Glass sizes for the 47-1/2" W x 35-3/4" H frame with aluminum half-track: two pieces, each 21-3/8" W x 31-15/16" H.

Product Warning: Heavy-duty service windows; not designed to be the primary building seal for severe weather conditions.

Order SKU DW48360XUDU or contact us for custom sizes and glazing options.
