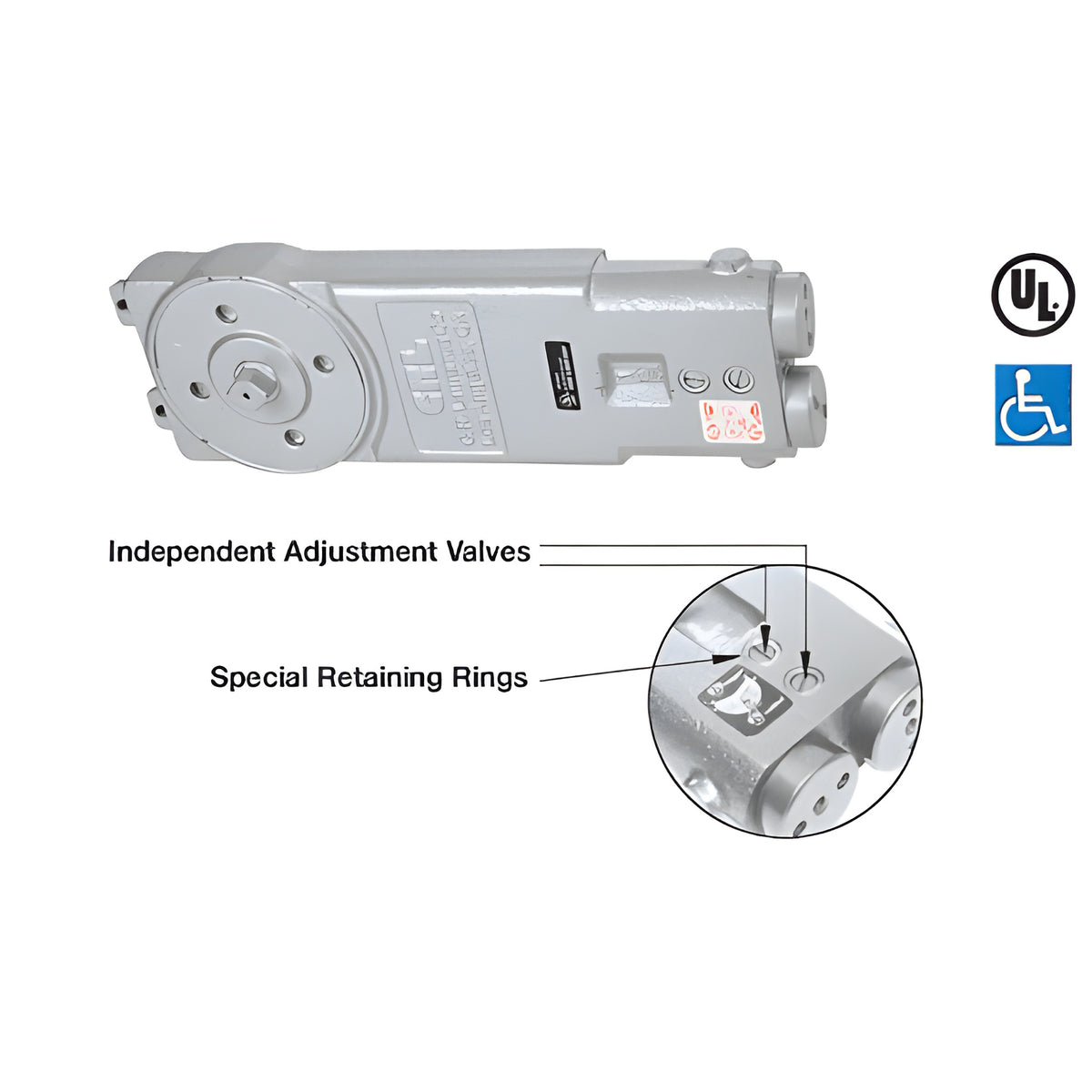

CRL Diamond 8.5 lb Overhead Concealed Door Closer Body 105° Hold-Open

• Spindle Set in the Diamond Position at 0º
• Direct retrofit for pre-1998 Kawneer® Husky® original closers
• 5 Year Limited Warranty
• UL Listed

This CRL Overhead Concealed Door Closer (SKU: CRL7670) features a diamond-position spindle at 0º to directly replace pre-1998 Kawneer® Husky® original-style closers without changing the door arm. The diamond spindle engagement allows installers to use existing Center-Hung or Offset Arms and existing pivots, minimizing installation time and cost. Retrofit Clips (sold separately) are available for 4" or 4-1/2" (102 or 114 mm) headers so the closer can be installed without replacing additional door hardware.

Available configurations: 105° Hold Open and No Hold Open styles, Medium spring size, plus an 8.5 lb. model suitable for exterior door applications. A diamond pattern End-Load Center-Hung Replacement Arm is available as Cat. No. CRL8010H.

Installation Notes: Retrofit may require considerable alterations. Mounting Clips are required and sold separately. An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum door swing.

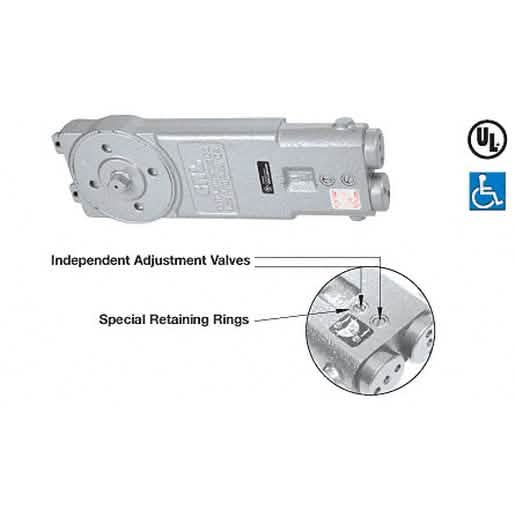

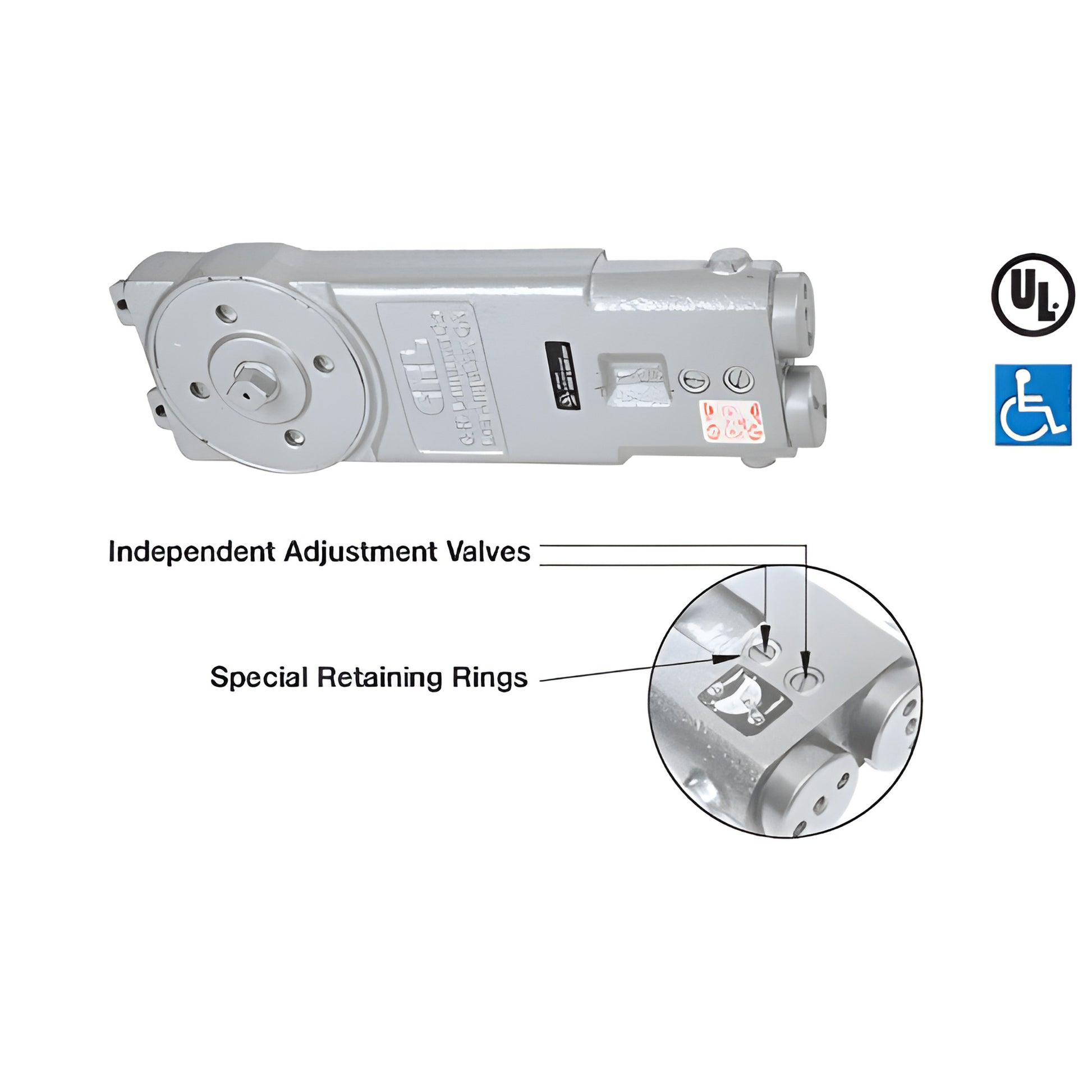

Independent Adjustment Valves
Non-critical valves independently adjust Closing Speed and Latching Speed for fine-tuning door performance.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the closer body.

Warnings & Limitations
Closers set to comply with specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm). Kawneer® is a registered trademark of Alcoa Inc., and its subsidiaries and affiliates.
