CRL Diamond 105° Med-Duty Concealed Overhead Closer Body No Hold-Open

• Spindle set in the diamond position at 0° for direct replacement
• Retrofit replacement for pre-1998 Kawneer® Husky® overhead concealed closers
• Available in 105° hold-open and no hold-open styles
• Medium spring size; 8.5 lb. model available for A.D.A. exterior door applications
• 5 Year Limited Warranty
• UL Listed

This CRL Overhead Concealed Door Closer (SKU: CRL7772) features a diamond-pattern spindle engagement at 0°, enabling door installers to replace pre-1998 Kawneer® original Husky® closers without changing the door arm. Use existing center-hung or offset arms and existing pivots for a faster retrofit. Optional Retrofit Clips are available for 4" or 4-1/2" (102 or 114 mm) headers so the closer can be installed without replacing additional door hardware.

These overhead concealed door closers are offered in 105° hold-open and no hold-open configurations, with medium spring size and an 8.5 lb. ADA-compatible model for exterior doors. A diamond-pattern end-load center-hung replacement arm (Cat. No. CRL8010H) is also available.

NOTE: Retrofit may require considerable alteration. Mounting clips are sold separately and are required to mount the closer.

NOTE: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.

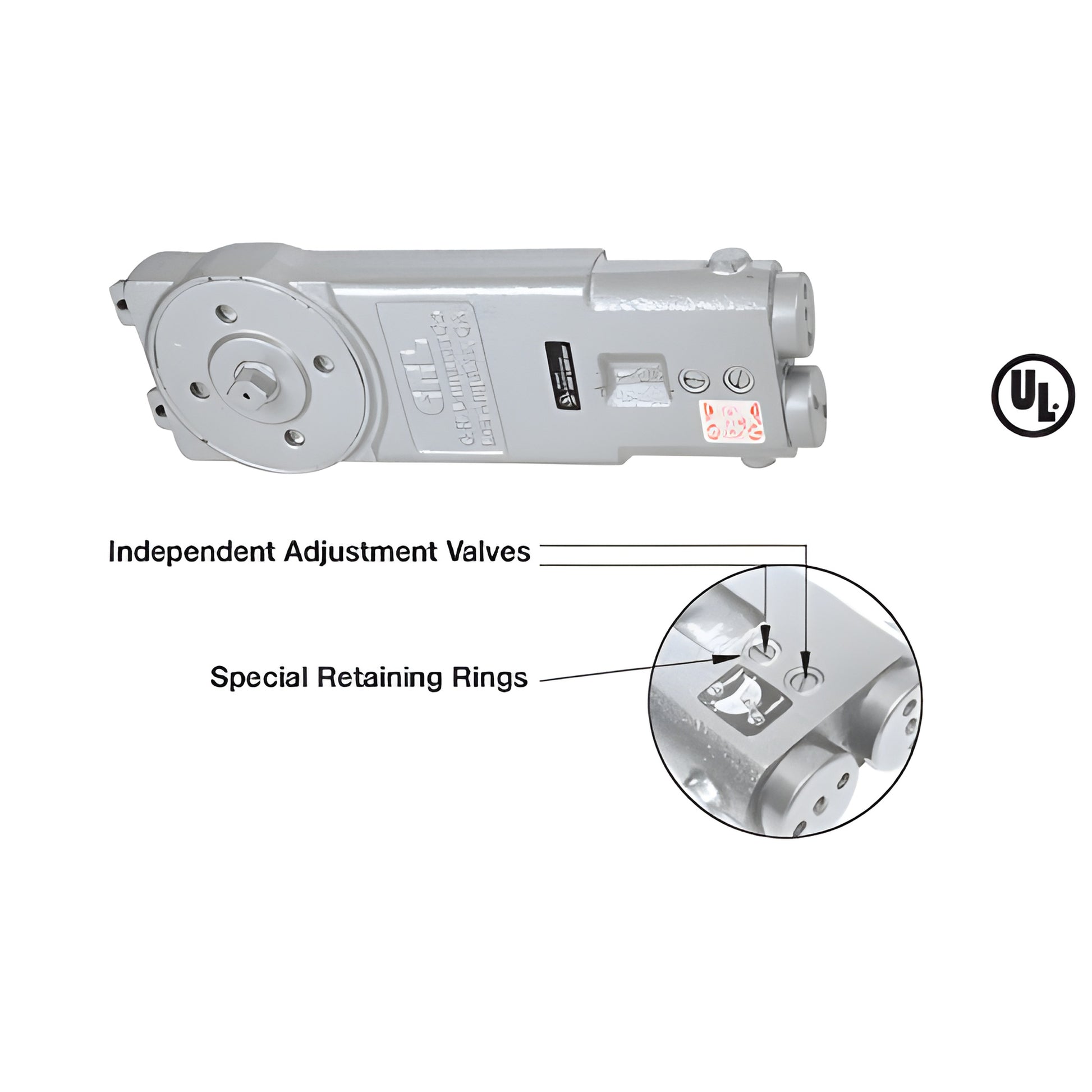

Independent Adjustment Valves
Non-critical valve control adjusts closing speed and latching speed independently for precise door control.

Special Retaining Rings
Prevent adjustment valve screws from backing completely out of the closer body.

Product Warning:
Closers set to meet A.D.A. specified opening forces may not provide adequate spring power to control and close the door under all site conditions or door sizes. Kawneer® is a registered trademark of Alcoa Inc., and its subsidiaries and affiliates.

Looking to retrofit a Kawneer Husky closer? Contact CRL or order SKU: CRL7772 today to get the correct retrofit components and mounting clips.
