CRL Diane Horizontal Sliding Door Assembly Pass-Thru w/ D1670 Header
CRL Diane Horizontal Sliding Door Assembly Pass-Thru w/ D1670 Header
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D1032A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
OXXO
Finish/Color
Satin Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
144 in. (3657.6 mm)
Model
Diane
Overhead Track
D1670
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
4
Usage
Interior
Overview
- Custom sized horizontal sliding pass-thru window, ships knocked-down
- Finish options: Satin Anodized or Dark Bronze

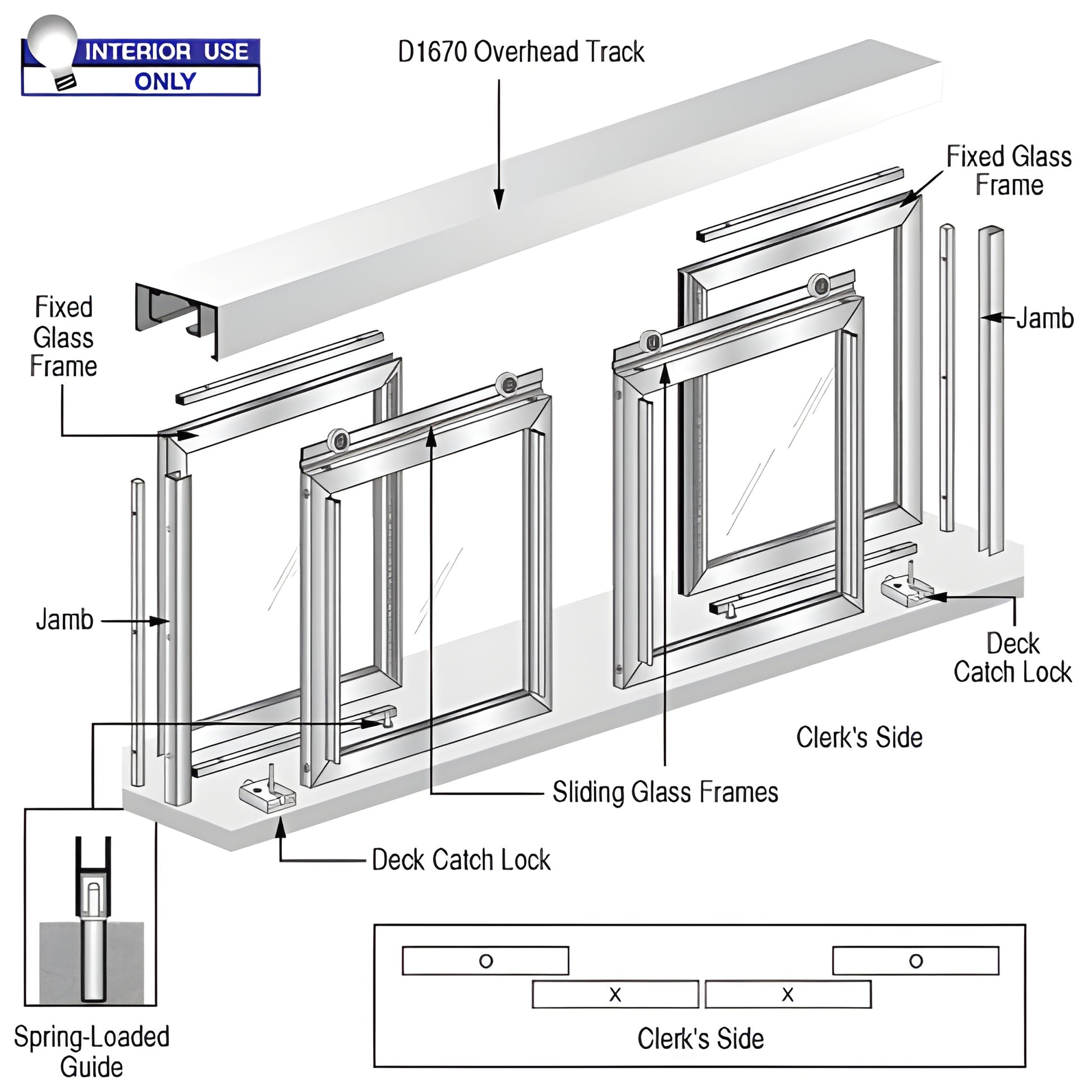

- Four panels: two fixed end panels and two center bi-parting sliding panels
- Two overhead track options: D7 standard or D1670 for 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube
The CRL Diane Model Pass-Thru Window (SKU D1032A) is a popular horizontal sliding pass-thru window ideal for receptionist counters, office pass-throughs, and other interior service openings. Its four-panel design provides an unobstructed counter surface and smooth rolling operation on an overhead track.
Different models are available with two header/track choices: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" storefront tube.
Suggested glass cutting formulas for use with CRL glazing vinyl are provided in the installation guide; CRL engineering supplies recommended glass sizes for confirmed orders. Each assembly ships without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Assemblies are ordered by frame size—see the installation guide for recommended deductions—and frame members are color coded for easier assembly and glazing.
NOTE: These horizontal sliding pass-thru assemblies are recommended for interior applications only.
Weight: Varies by custom size
Product Warning:
Maximum frame size: 144" (3658 mm) W x 50" (1270 mm) H
Order the CRL Diane Model Pass-Thru Window (SKU D1032A) for custom-sized interior receptionist and office pass-through solutions—contact CRL Customer Service to confirm dimensions and glass requirements.
