CRL Diane Horizontal Sliding Pass-Thru Door Assembly with D7 Header

• Custom sized; ships knocked-down
• Satin Anodized or Duranodic Bronze Anodized finishes

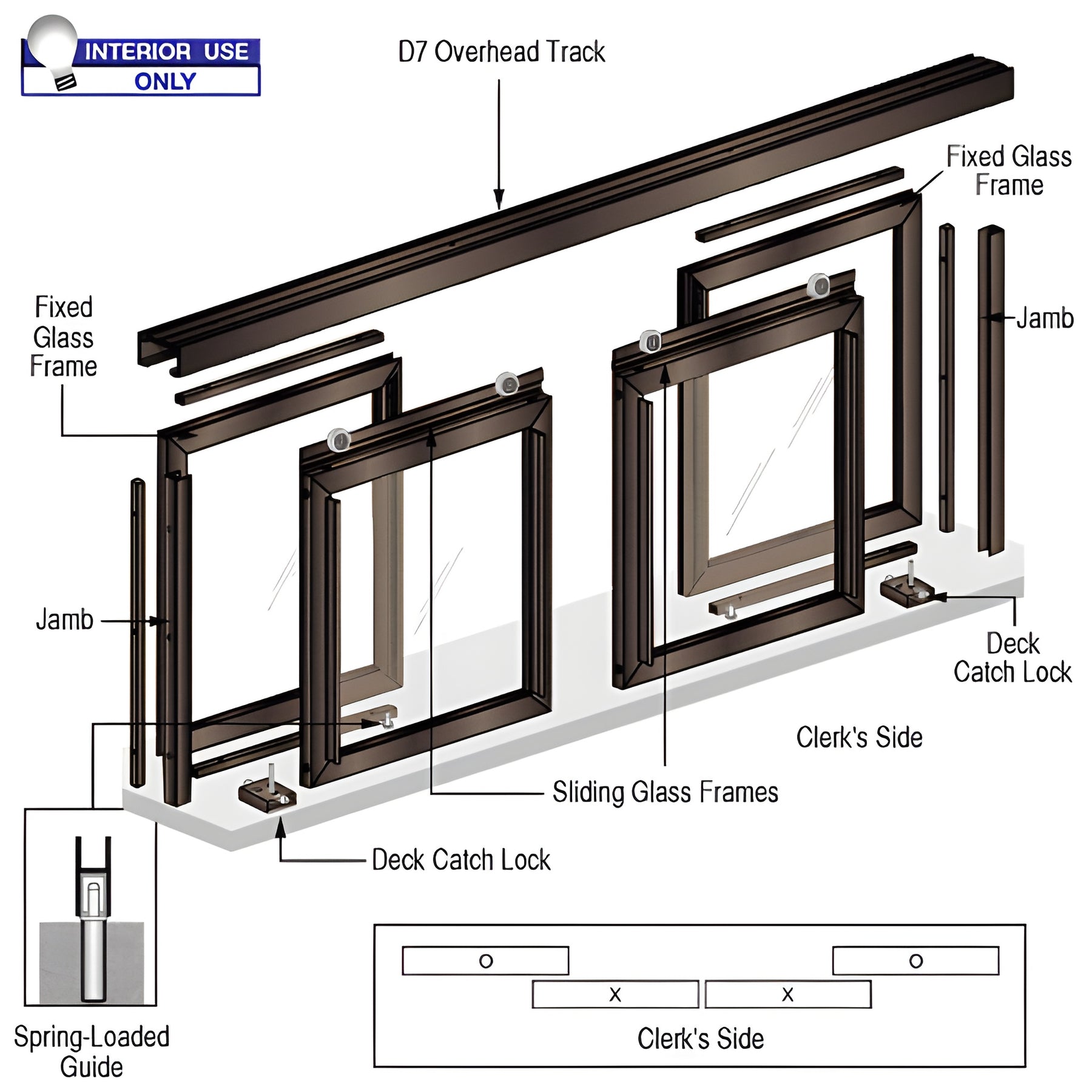

• Four panels: two fixed end panels and two central sliding panels
• Two overhead track options: D7 or D1670 (matches 1-3/4" x 3" storefront tube)

CRL Diane Model Pass-Thru Window is a popular horizontal sliding pass-thru window for reception desks, office pass-throughs, and other interior countertop openings. The four-panel design (two fixed, two bi-parting sliding) provides an unobstructed counter surface and smooth rolling overhead track operation—ideal for receptionist windows and secure transaction counters.

Available with satin anodized or Duranodic bronze anodized finishes. Choose the standard D7 overhead track or the D1670 overhead track to match 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube.

Assemblies ship without glass. Each kit includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Suggested glass cutting formulas and recommended glass sizes are provided in the installation guide and by CRL engineering for confirmed orders. Frames are color-coded to simplify assembly and glazing. All assemblies are ordered by frame size—see the installation guide for recommended deductions.

NOTE: Recommended for interior use only. Weight varies by custom size.

Product Warning:

Maximum frame size: 144" (3658 mm) W x 50" (1270 mm) H

SKU: D1031DU

For detailed specifications, installation guides, or to request a quote, contact CRL Customer Service today.
