CRL Drill-Thru Shelf Support with Tensioner for 3/8" Cable Railing
Item# Y03CR
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Material
Stainless Steel
- Ideal for Glass or Wood Shelves
- Drill-Thru Support Permits Glass Shelves to Rest on Large Diameter Plate

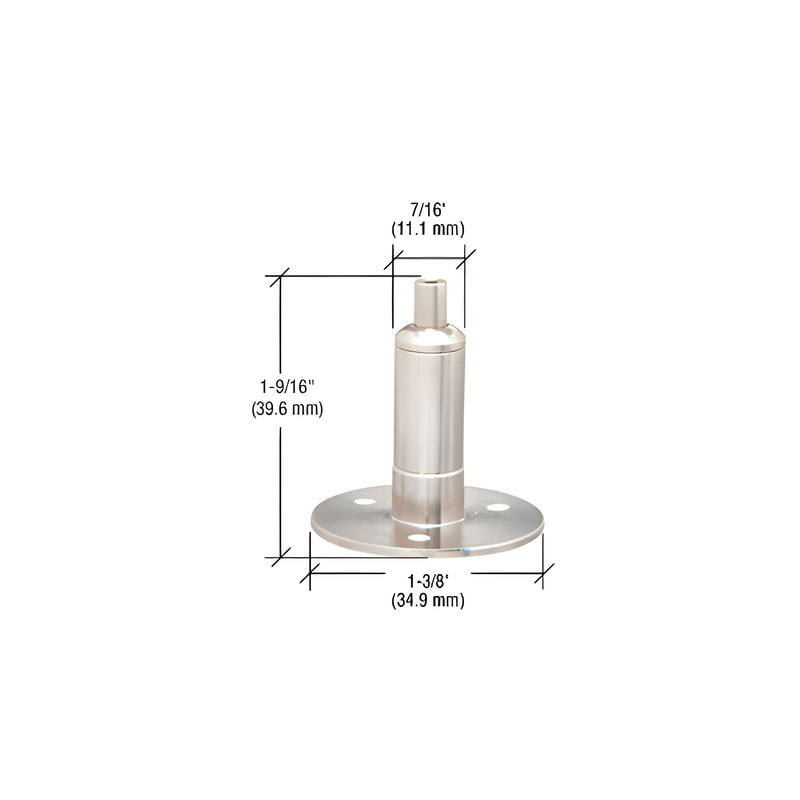

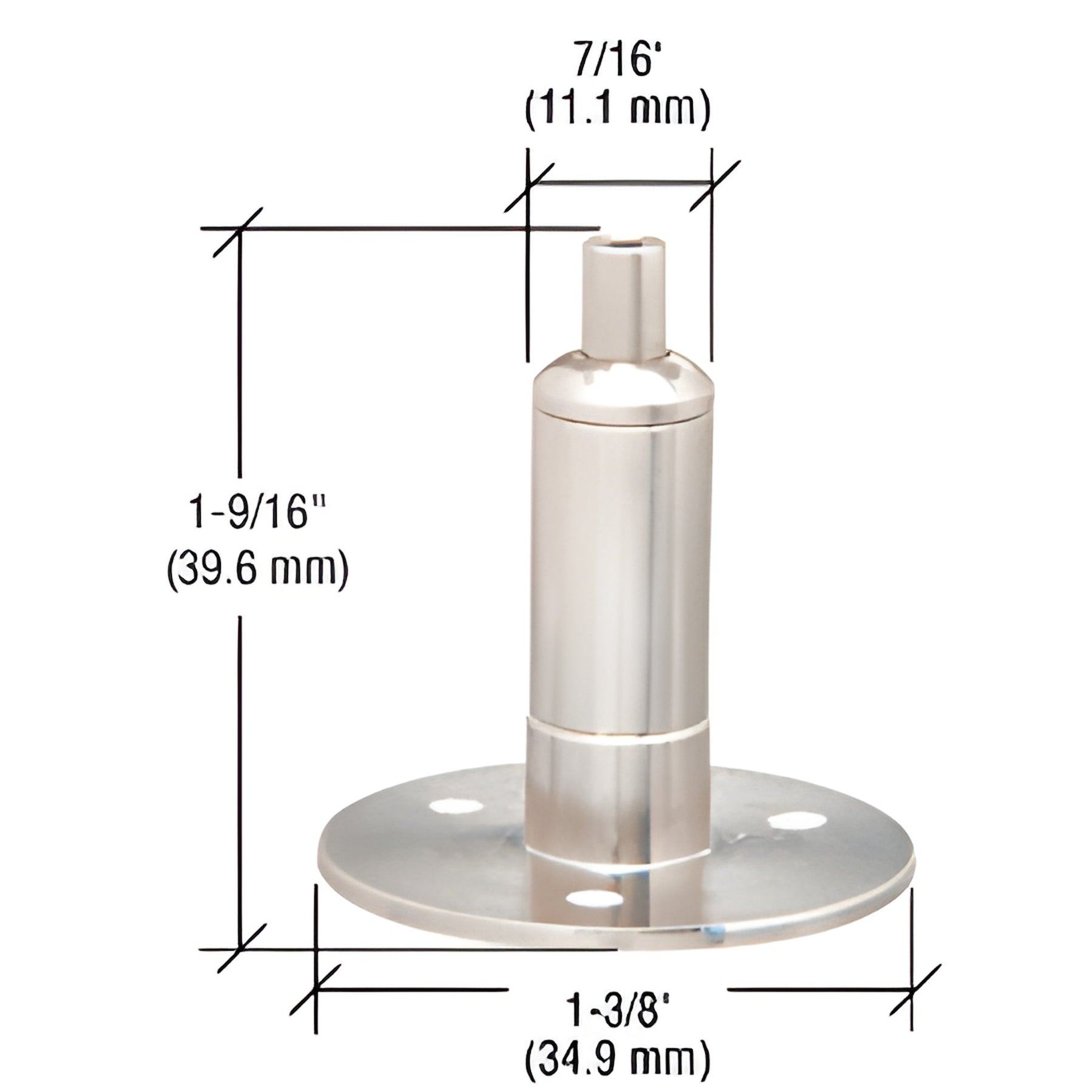

The CRL Drill-Thru Shelf Support with Tensioner (SKU: Y03CR) is a drill‑thru shelf mounting designed for the CRL Cable System and 3/8" (10 mm) glass shelves in single‑shelf installations. The large 1-3/8" (35 mm) diameter support plate lets glass rest directly on the plate after a 1/2" (12.7 mm) hole is drilled through the shelf. The support adjusts up and down on the cable to set precise shelf height and can be fastened to wood shelves using the three screw holes in the disk (wood screws not included). Each support has a maximum capacity of 20 lbs. (9 kg). Package includes one support disk and one cable tensioner. Great for glass shelf mounting, cable system shelving, and wood shelf cable supports.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Buy the CRL Drill-Thru Shelf Support with Tensioner (Y03CR) for secure, adjustable glass or wood shelving—order now.
